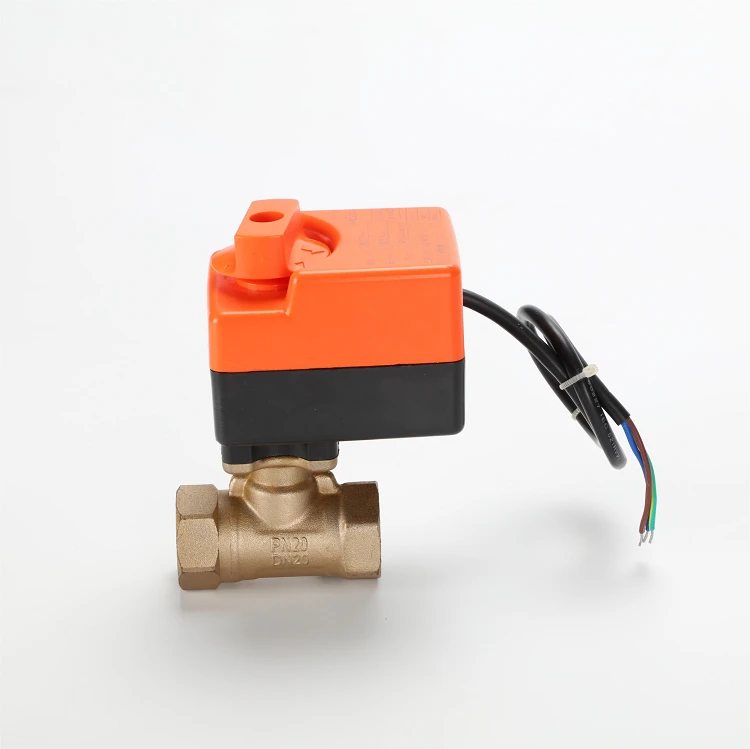

Product parameters
Main material: valve body forged brass, seal PTFE/HNBR
Driver torque: 2N.m
Valve opening torque: <1N.m
Nominal pressure: 2.0MPa
Working medium: water
Fluid temperature 5~95℃
Valve stem size: 10x10
| Ordering model | Product model | Valve type | DN | Thread size | Kv value | Maximum closing pressure difference kPa |
Dimensions | |
| L | H | |||||||
| 15073 | DQF-A-220*DQQ-AK3-220 | 2 way | 20 | G3/4 | 9.5 | 600 | 74 | 43.5 |
| 15076 | DQF-A-220*DQQ-AK2-220 | 2 way | 20 | G3/4 | 9.5 | 600 | 74 | 43.5 |
| Note: The above table is the commonly used recommended models, please consult for details. | ||||||||
Performance characteristics
●The structure is easy to install and saves costs.
●The closing pressure difference is large and the closing is tight.
●The water flows straight through and does not block the residue.
●The KVS value is much larger than the general two-way valve.
●The valve opens flexibly and can effectively prevent water hammer.
FAQ
1. What media are suitable for the 2 way motorized ball valve?
Suitable for a variety of fluids such as water, oil, gas and chemical media.
2. What is the nominal pressure range of the valve?
Common nominal pressures are 1.6MPa, 2.5MPa and 4.0MPa, etc.
3. How often is the2 way motorized ball valve maintained?
It is generally recommended to check it once a quarter to ensure normal operation.
4. What is the protection level of this 2 way motorized ball valve?
Common protection levels are IP65 and IP67, which are suitable for different working environments.
5. How to install?
It can be connected by flange or thread to ensure a firm installation and avoid leakage.
