Electric Ball Valve
Your trusted electric ball valve supplier
Founded in 1988, Zhejiang HengSen Industrial Group Co., Ltd. is one of China's leading manufacturers of electric ball valves. As a professional electric ball valve manufacturer, HengSen utilizes high-precision CNC machine tools to manufacture our products. Our products offer high closing pressure differential, low torque, high flow, and flexible opening to effectively prevent water hammer. We produce a wide range of electric ball valves, including two-way, three-way, and six-way valves in various materials, to meet the complex and changing operating conditions of smart buildings. Contact us now! Get a free quote to learn more.

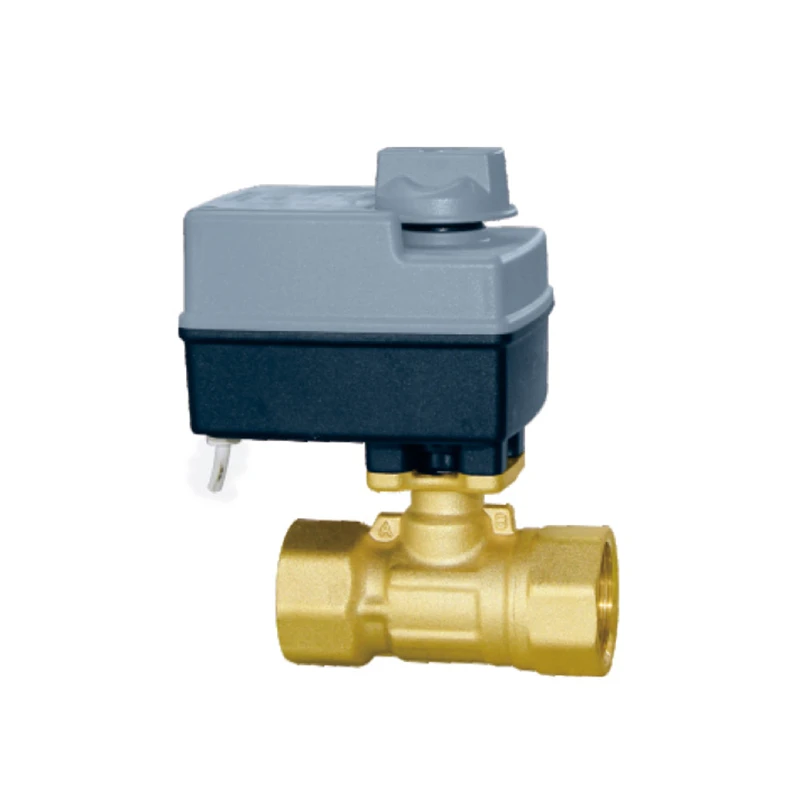

DQF-B*DQQ-B1K3(2) Electric Ball Valve
DQF-A*DQQ-A Series Electric Ball Valve

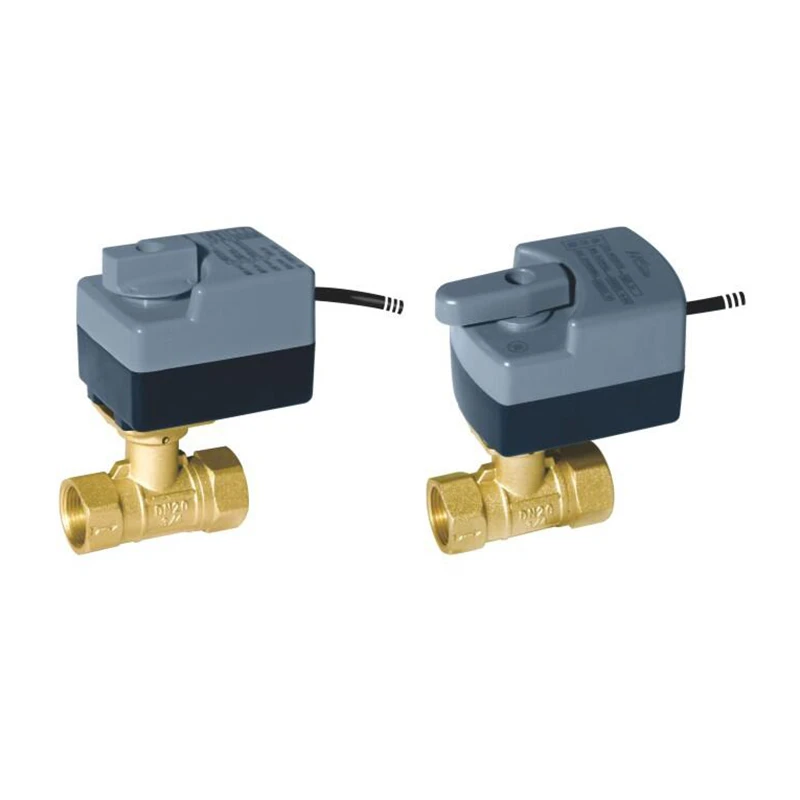

DQF-B*DQQ-B1K(B1KF) Electric Ball Valve
DQF-B*DOQ-B2 series electric ball valve

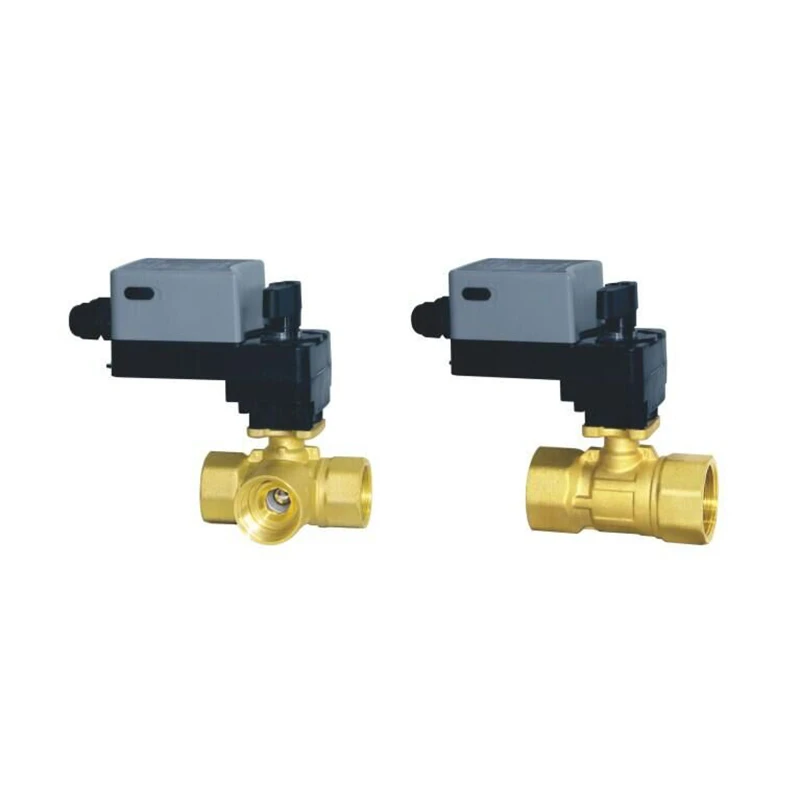

DQF-B*DQQ-B3 series electric ball valve
DQF-B*DQQ-B3 series electric six-way ball valve

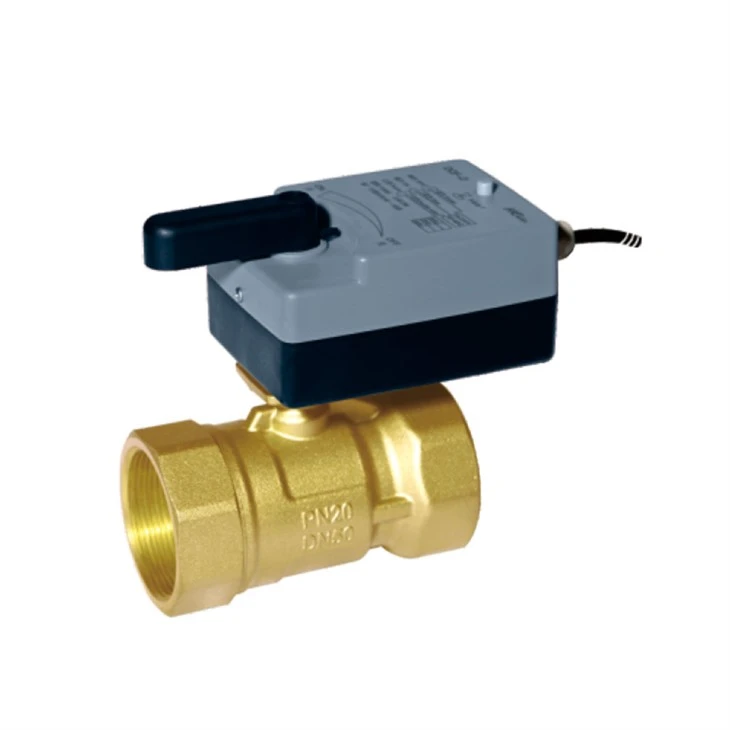

DQF-D*DQQ-D1 series electric ball valve
DQF-E*DQQ-E2 Series Electric Ball Valve
DQF-F*DQQ-E2 Series Electric Ball Valve
DQF-G series electric ball valve

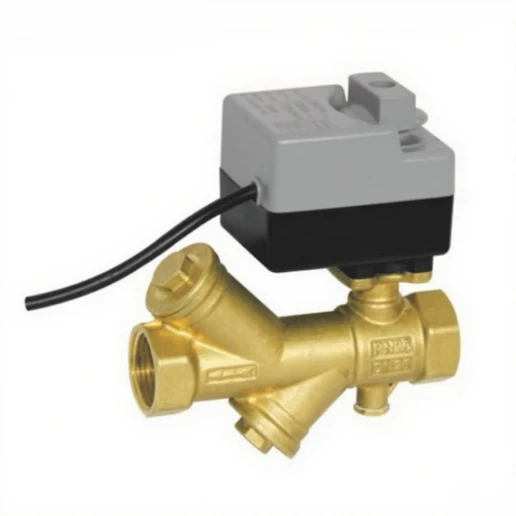

DGQF Series Dynamic Filtration Electric Ball Valve
Product Specifications
| Product Series | Valve Type | Connection Mode | Main Materials | Control Mode | Applicable System |
|---|---|---|---|---|---|
| DQF-A Series Electric Ball Valve | Two-way | Threaded Connection | Valve body: forged brass; Seal: PTFE/HNBR | K2=Two-wire switch, K3=Three-wire switch | Air conditioning terminal water circuit control |
| DQF-B16 Series Electric Ball Valve | Two-way | Threaded Connection | Valve body and bonnet: HPB59-1; Sealing ball: 304 stainless steel; Seal material: PTFE, hydrogenated rubber | - | Air conditioning terminal water circuit control |
| DQF-B Series Electric Ball Valve | Two-way, Three-way | Threaded Connection | Valve body material: HPB59-1; Seal: PTFE/HNBR | K2=Two-wire switch, K3=Three-wire switch, M=Analog | Air conditioning terminal water circuit control |

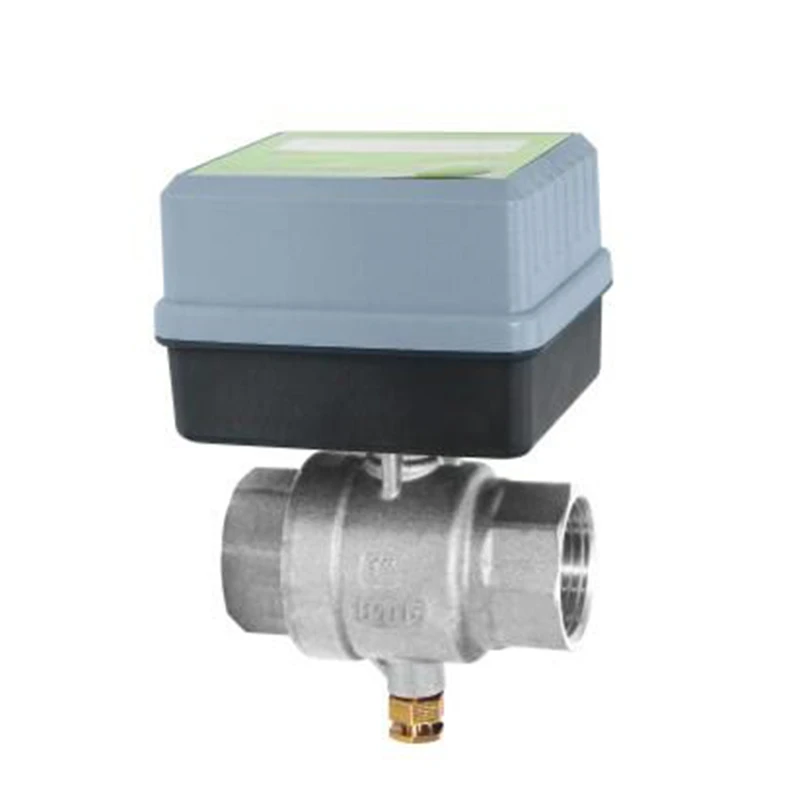

| DQF-B25 Series Electric Ball Valve | Two-way | Threaded Connection | Valve body/bonnet/valve stem/sealing ball: 304 stainless steel; Seal: PTFE/HNBR | - | Air conditioning terminal water circuit control |
| DQF-C Series Electric Ball Valve | Two-way | Threaded Connection | Valve body: forged brass; Seal: PTFE/HNBR | K3=Three-wire switch | Air conditioning terminal water circuit control |
| DQF-D Series Electric Ball Valve | Two-way, Three-way | Threaded Connection | Valve body: forged brass; Seal: PTFE/HNBR | K3=Three-wire switch | Air conditioning terminal water circuit control |
| DQF-E Series Electric Ball Valve | Two-way, Three-way | Flange Connection | Valve body: cast iron; Seal: PTFE/HNBR | K=Universal two/three-wire switch, M=Analog | Air conditioning terminal water circuit control |
| DQF-F Series Electric Ball Valve | Two-way | Flange Connection | Valve body: ductile iron QT450-10; Valve seat: PTFE; Valve ball: 304 stainless steel, etc. | K=Universal two/three-wire switch, M=Analog | Central air conditioning, heating, water treatment, industrial processing and other systems |
| DQF-G Series Electric Ball Valve | Two-way | Threaded Connection (Internal thread, External thread) | Valve body: forged brass; Seal: PTFE/HNBR | - | Air conditioning terminal water circuit control |
| DGQF Series Dynamic Filtering Electric Ball Valve | Two-way | Threaded Connection | Valve body: forged brass; Sealing parts: PTFE, EPDM | K=Universal two/three-wire switch, M=Analog | Air conditioning terminal water circuit control |
| DQF-J Series Electric Ball Valve (ratchet ball valve) | Two-way | - | Valve body: forged brass; Seal: PTFE/HNBR | - | Air conditioning terminal water circuit control |
Advantages of electric ball valve
-
Split-body quick-install
The valve body connects to the actuator clamp, supporting post-installation debugging and reducing on-site installation time. Multi-material corrosion resistance: Available in brass
Split-body quick-install
The valve body connects to the actuator clamp, supporting post-installation debugging and reducing on-site installation time. Multi-material corrosion resistance: Available in brass
-
Corrosion-resistant
Available in brass (forged/cast copper) and 304 stainless steel, the valve body is suitable for hot and cold water, as well as complex water conditions.
Corrosion-resistant
Available in brass (forged/cast copper) and 304 stainless steel, the valve body is suitable for hot and cold water, as well as complex water conditions.
-
Low-noise and stable
Driven by a hysteresis motor, operating noise ≤35dB, travel time 11-15 seconds, suitable for concealed installation.
Low-noise and stable
Driven by a hysteresis motor, operating noise ≤35dB, travel time 11-15 seconds, suitable for concealed installation.
-
Manual emergency
A built-in mechanical lever locks the normally open position and can be manually reset in the event of a power outage, ensuring ease of use in special scenarios.
Manual emergency
A built-in mechanical lever locks the normally open position and can be manually reset in the event of a power outage, ensuring ease of use in special scenarios.
-
Omnidirectional adaptability
Available in two-way and three-way valve bodies, supporting diverting and mixing modes to accommodate various piping designs.
Omnidirectional adaptability
Available in two-way and three-way valve bodies, supporting diverting and mixing modes to accommodate various piping designs.
-
Temperature control linkage
Directly connects to a Hengsen thermostat to respond to room temperature changes in real time, cutting off or opening water flow for precise temperature control.
Temperature control linkage
Directly connects to a Hengsen thermostat to respond to room temperature changes in real time, cutting off or opening water flow for precise temperature control.
How does an electric ball valve work?
The core of the electric ball valve's operation lies in the coordinated operation of an electric actuator and an internal ball. When receiving an electrical signal, the actuator rotates the ball. The ball has a central through-hole. When rotated 90 degrees, the hole aligns with the pipe, allowing fluid to flow smoothly. A 90-degree reverse rotation blocks the pipe, shutting off the flow.
This design provides fast response and eliminates the need for manual operation. The sealing structure ensures leak-free closure and stable operation even in high-pressure environments. From control signal to switching operation, the entire process is efficient and precise, making it a key component in automated fluid control systems.

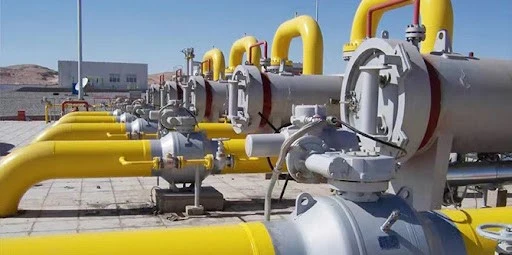

Application of Electric Ball Valve
Electric ball valves are primarily used for terminal waterway control in central air conditioning and heating systems. A thermostat controls the actuator to open or close the valve, allowing for the flow or disconnection of media within the pipeline. These valves, combined with fan coil units, automatically control indoor temperature. Additionally, some series of electric ball valves are widely used for fluid control in systems such as water treatment and industrial processing.
Factors to Consider in Electric Ball Valve Design
Media Characteristics: Consider the media type (liquid, gas, slurry, etc.), temperature, pressure, and corrosiveness to select the appropriate valve body and sealing materials to prevent damage from the media.
Flow Requirements: Design the ball hole size and valve body opening diameter based on the required flow range of the pipeline to ensure flow control requirements are met.
Operating Environment: Consider factors such as temperature, humidity, dust, and vibration in the installation environment to ensure stable operation of the electric actuator and valve body.
Control Accuracy: Design the electric actuator's control method and feedback mechanism based on the requirements of the automation system to ensure precise valve opening and closing angles and meet flow control accuracy requirements.
Safety: For applications involving the transport of flammable, explosive, or toxic media, explosion-proof and leak-proof structures are required to ensure operational and environmental safety.
Installation and Maintenance: Consider ease of installation and subsequent maintenance and repair during design, such as the use of removable structures.
Service Life: Improve the valve's wear and corrosion resistance and extend its service life by optimizing material selection, structural design, and processing technology.
Customization Process
-
Demand Communication
Confirm parameters, operating conditions, drive requirements, and special standards.
Demand Communication
Confirm parameters, operating conditions, drive requirements, and special standards.
-
Scheme Design
Develop a scheme, match components, and produce drawings for confirmation.
Scheme Design
Develop a scheme, match components, and produce drawings for confirmation.
-
Quotation Confirmation
Customer review and adjustments, finalize the scheme, and issue a quotation and contract.
Quotation Confirmation
Customer review and adjustments, finalize the scheme, and issue a quotation and contract.
-
Production Quality Control
Procure and inspect components, perform processing and assembly, and conduct quality control throughout the entire process.
Production Quality Control
Procure and inspect components, perform processing and assembly, and conduct quality control throughout the entire process.
-
Factory Inspection
Perform performance testing and provide compliance documentation as required.
Factory Inspection
Perform performance testing and provide compliance documentation as required.
-
Delivery and After-Sales Service
Customized packaging and delivery, installation, and warranty services provided.
Delivery and After-Sales Service
Customized packaging and delivery, installation, and warranty services provided.
The reason for choosing Hengsen stems from its over 30 years of experience in HVAC control products, pipe fittings, and refrigeration accessories. As a state-backed high-tech enterprise, Hengsen boasts five subsidiaries, an over 80,000 square meter production base, over 500 employees, and over 100 professional technicians. With strong R&D and production capabilities, Hengsen has been awarded numerous patents and provincial and national innovation awards, and has participated in the development of industry standards. Its products are ISO9001 and ISO14001 certified, rigorously tested by national laboratories, and demonstrate both high quality and safety. Hengsen also offers ODM/OEM customization services and a one-year after-sales guarantee, offering a cost-effective direct supply model. Leveraging its strategic location, Hengsen's products are exported to South America, Europe, the Middle East, and other regions. The company collaborates with numerous Fortune 500 companies, making it a reliable choice for innovation, quality assurance, and global service capabilities.
Our Certificate
Customer Reviews
John Smith
Project Director
Sophie Laurent
Technical Lead
David Kim
Purchasing Manager
FAQ
1.How long is your delivery time?
Generally 3-5 days. or it is 15-20 days if the goods are not in stock, it is according to quantity.
2.What is your terms of payment ?
30% of total cost Deposit,70% balance before shippment.
3. Can I have a sample order?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
4. Are you products standard?
Our model is standard, if you have specific demand, pls tell us.
5.How to make the order?
You can contact us by email or contact us directly on the platform
We're professional electric ball valve manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to wholesale high-grade electric ball valve from our factory.
