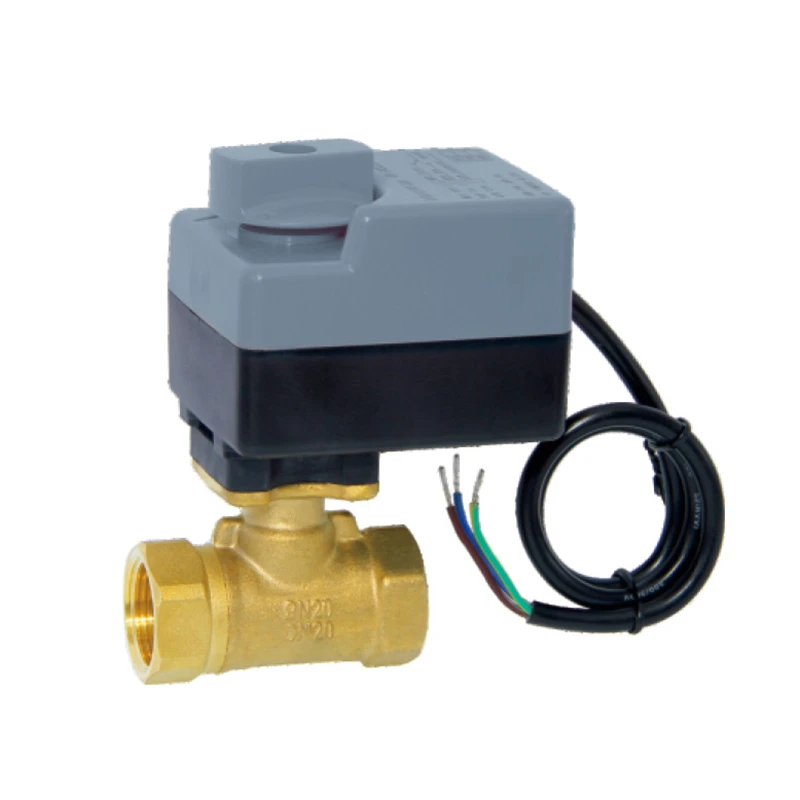

Features of 12v Motorized Ball Valve
Easy installation and cost saving: Its structural design makes installation effortless, reducing installation time and cost, making it suitable for a variety of projects and economical.
High-pressure cut-off: It is able to handle high pressure difference during closing, ensuring a tight seal and effectively preventing leakage.
Smooth flow: It allows straight-through water flow, minimizing the risk of blockage. Its KVS value is significantly higher than that of typical two-way valves, which helps efficient fluid passage.
Soft start: It opens in a soft way, which can effectively prevent water hammer phenomenon and protect the pipeline system from potential damage.
Product Parameters
Main Materials: Valve body is forged brass, and the seal is PTFE/HNBR.
Valve Opening Torque: For DN15 - DN25 < 1N.m, for DN32 - 50 < 2N.m.
Actuator Torque: 2N.m
Nominal Pressure: 2.0MPa
Working Medium: Water
Fluid Temperature: 5 - 95°C
Stem Size: 9x9
Product Specifications

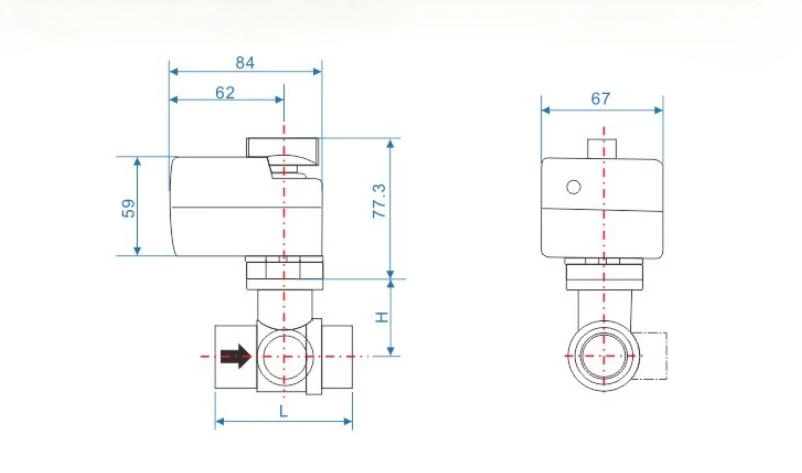

| Ordering Code | Product Model | Valve Type | DN (Nominal Diameter) | Thread Size | Kv Value | Maximum Shut - off Differential Pressure (kPa) | Overall Dimensions | |
|---|---|---|---|---|---|---|---|---|
| L | H | |||||||
| 15123 | DQF - B - 215*DQQ - B1K3 - 220 | Two - way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| 15128 | DQF - B - 220*DQQ - B1K3 - 220 | Two - way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| 15134 | DQF - B - 225*DQQ - B1K3 - 220 | Two - way | 25 | G1 | 9.5 | 500 | 89 | 38 |
| 15139 | DQF - B - 315*DQQ - B1K3 - 220 | Three - way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| 15144 | DQF - B - 320*DQQ - B1K3 - 220 | Three - way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| 15149 | DQF - B - 325*DQQ - B1K3 - 220 | Three - way | 25 | G1 | 13 | 500 | 89 | 38 |
Note: The above are commonly recommended models. You can refer to the following model selection instructions to combine models. For details, consult the salesperson.
FAQ
Q: Is this electric ball valve suitable for our large commercial pipeline system?
A: Hello, this 12v electric ball valve has a variety of optional diameters and good Kv value performance, which can meet the water control needs of both small and large commercial pipeline systems. You can choose the appropriate model according to the actual pipeline specifications and flow requirements.
Q: How long can the product last under normal use?
A: Because it uses a forged brass valve body and high-quality sealing materials (PTFE/HNBR), the structural design is reasonable, and if it is used normally and properly maintained, the service life can reach 10-15 years, which can effectively reduce your replacement costs.
Q: Our installation team has limited experience. Is it complicated to install this valve?
A: Don't worry. The structural design of this electric ball valve is easy to install, and does not require complicated operations and special tools. And we will provide detailed installation guides and technical support to ensure that your team can complete the installation smoothly.
Q: Is the product easy to repair after sales? What if there is a problem?
A: We have a complete after-sales service system. If you encounter any problems, please feel free to contact our after-sales team and we will arrange for professionals to handle it.
