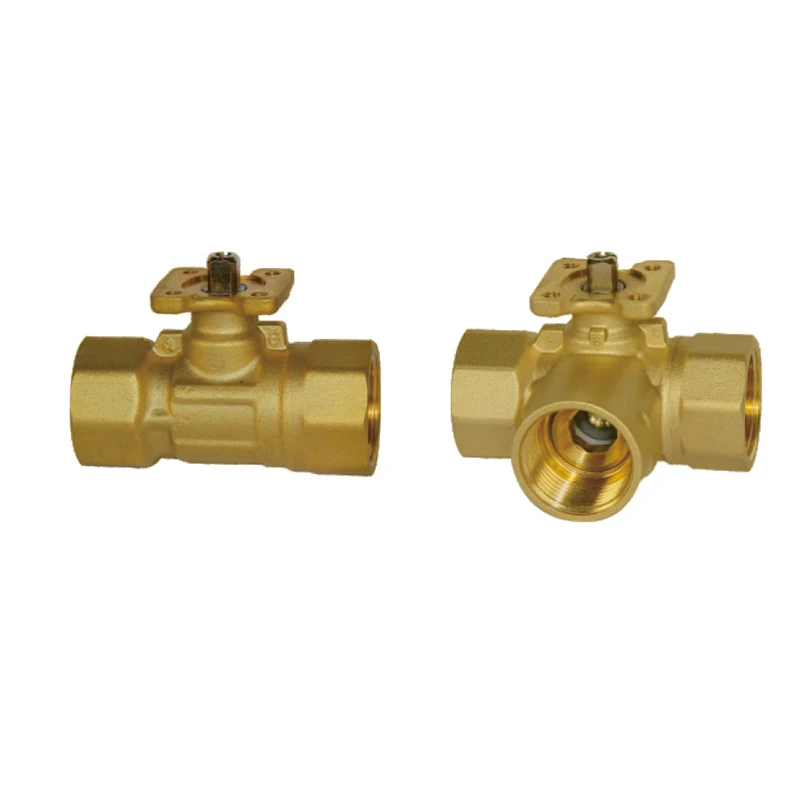

Features of Motorised 3 Way Ball Valve
Easy Installation & Cost Efficiency
Designed with a compact and simplified structure, this valve is easy to install, significantly reducing installation time and labor costs.
Smooth Operation & Water Hammer Prevention
The valve opens and closes smoothly, effectively preventing water hammer and protecting the system's integrity.
High Differential Pressure Tolerance & Reliable Sealing
Engineered to withstand large pressure differentials while maintaining tight shut-off performance, ensuring durability and leak-free operation.
Versatile 3-Way Configuration
Suitable for both flow diverting and mixing applications, making it ideal for use in various HVAC and piping systems.
Perfect for Fan Coil and Terminal Control
Integrated with electric actuators, the valve offers precise control of water flow in fan coil units and terminal water loops to achieve accurate indoor temperature regulation.
Advantages of Motorised 3 Way Ball Valve
Automatic Flow Control
Precisely and automatically regulates hot or cold water in a plumbing system, improving energy efficiency and system responsiveness.
Space and Cost Savings
Combining the functions of two separate valves into one compact unit reduces component count, installation time, and overall cost.
Reliable Sealing Under Pressure
High closing pressure capability ensures a tight seal and long-term leak-free operation, even under varying system conditions.
Building Automation Compatible
Easily integrates with thermostats and control systems for remote or timed operation, making it an ideal choice for smart buildings.
Product Specifications
| Ordering Code | Product Model | Valve Type | DN (Nominal Diameter) | Thread Size | Kv Value | Overall Dimensions | Maximum Closing Differential Pressure | |||||
| L | H | D | [kPa] | [kPa] | [kPa] | [kPa] | ||||||
| 15099 | DQF - B - 315 | Three - way | 15 | G1/2 | 5.6 | 60 | 30 | 30.5 | 600 | --- | 600 | --- |
| 15100 | DQF - B - 315A | Three - way | 15 | G1/2 | 1.2 | 60 | 30 | 30.5 | 600 | --- | 600 | --- |
| 15101 | DQF - B - 315B | Three - way | 15 | G1/2 | 2.5 | 60 | 30 | 30.5 | 600 | --- | 600 | --- |
| 15102 | DQF - B - 315C | Three - way | 15 | G1/2 | 3.6 | 60 | 30 | 30.5 | 600 | --- | 600 | --- |
| 15103 | DQF - B - 315D | Three - way | 15 | G1/2 | 4.6 | 60 | 30 | 30.5 | 600 | --- | 600 | --- |
| 15104 | DQF - B - 320 | Three - way | 20 | G3/4 | 9.5 | 67 | 35 | 32 | 600 | --- | 600 | --- |
| 15105 | DQF - B - 320A | Three - way | 20 | G3/4 | 1.5 | 67 | 35 | 32 | 600 | --- | 600 | --- |
| 15106 | DQF - B - 320B | Three - way | 20 | G3/4 | 2.3 | 67 | 35 | 32 | 600 | --- | 600 | --- |
| 15107 | DQF - B - 320C | Three - way | 20 | G3/4 | 4.5 | 67 | 35 | 32 | 600 | --- | 600 | --- |
| 15108 | DQF - B - 320D | Three - way | 20 | G3/4 | 6.5 | 67 | 35 | 32 | 600 | --- | 600 | --- |
| 15109 | DQF - B - 325 | Three - way | 25 | G1 | 13 | 89 | 38 | 46.5 | 500 | --- | 500 | --- |
| 15111 | DQF - B - 332 | Three - way | 32 | G1 - 1/4 | 15 | 99 | 43.5 | 49 | --- | --- | 500 | --- |
| 15113 | DQF - B - 340 | Three - way | 40 | G1 - 1/2 | 24 | 106 | 48 | 52 | --- | 500 | --- | 500 |
| 15115 | DQF - B - 350 | Three - way | 50 | G2 | 42 | 123 | 53 | 69 | --- | 400 | --- | 400 |
Note: The above are commonly recommended models. You can refer to the following model selection instructions to combine models. For details, consult the salesperson.
FAQ
1. How is product quality guaranteed?
We have passed ISO9001 quality management system certification, and we monitor the quality of the entire production process from raw material inspection to production, and conduct multiple rounds of performance testing and random inspections to ensure that every product leaving the factory is stable and reliable.
2. Can large-volume orders be delivered on time?
The company has a modern factory of 85,000 square meters and a mature production management system, with the ability to supply large quantities. We prioritize production according to orders, deliver strictly according to contracts, and can respond flexibly to special needs.
3. How long is the service life of the product?
Under normal use and regular maintenance, the product service life can reach 10-15 years. The service life is affected by the use environment, medium and maintenance frequency, and standardized operation can greatly extend the service life.
4. Is the product energy-saving?
The optimized flow channel design and high-efficiency energy-saving motor are used to effectively reduce energy consumption. In actual applications, compared with similar products, the system energy consumption can be reduced by about 10%-15%, helping customers save long-term operating costs.
