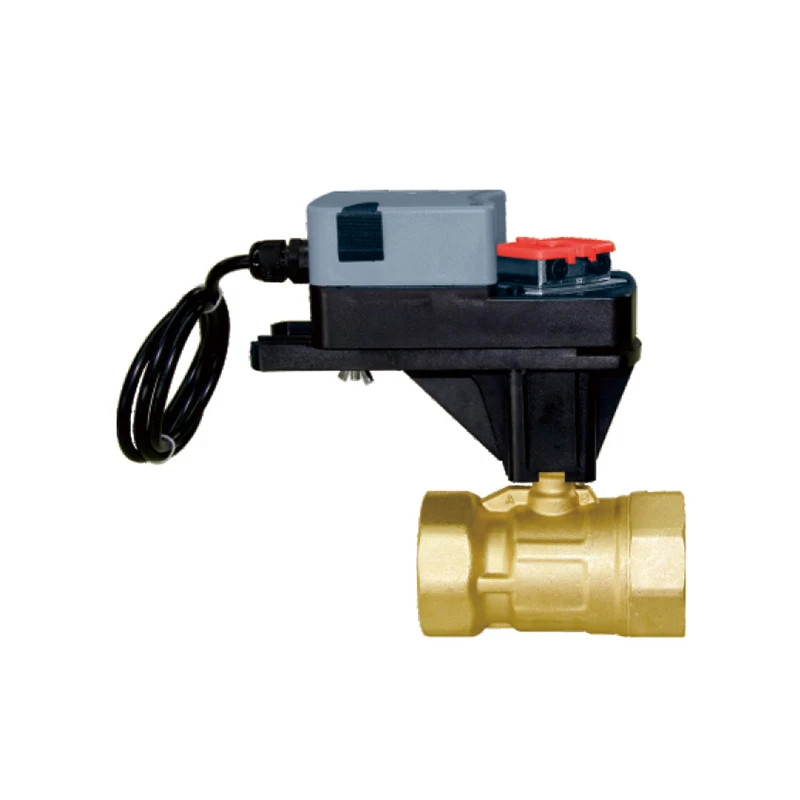

Features of Timer Controlled Motorized Ball Valve
Timed automatic operation
The valve has a built-in timer that can be programmed to open or close at preset intervals or specific times. This feature is ideal for irrigation systems, fluid circulation or regular discharge processes, reducing manual intervention.
Energy-saving and high efficiency, low power consumption
These valves are designed to minimize operating power consumption and usually have a power-off hold function, allowing them to maintain position without continuous power supply, thereby improving energy efficiency.
Reliable structure and long service life
These valves are made of corrosion-resistant materials and waterproof housings, suitable for outdoor or harsh environment applications. The actuator and valve body are carefully designed for long service life and stable performance.
Advantages of Timer Controlled Motorized Ball Valve
Automatic Scheduling
Integrated timers allow valves to open and close automatically at preset times, increasing system automation without manual operation.
Labor and cost savings
Timed operation reduces the need for 24/7 monitoring or manual switching, thereby reducing labor costs and improving system management efficiency.
Improve precision and consistency
With preset schedules, valves can perform operations at the precise required time, ensuring consistent flow control and reducing the risk of human error.
Wide range of applications
Suitable for a variety of applications such as HVAC systems, agriculture, industrial automation and water treatment, especially for repetitive or time-sensitive processes.
Product Specifications
| Ordering Code | Product Model | Valve Type | DN (Nominal Diameter) | Thread Size | Kv Value | Maximum Closing Differential Pressure (kPa) | Overall Dimensions | |
| L | H | |||||||
| 15551 | DQF - B - 240*DQQ - E2K - 10 - 220 | Two - way | 40 | G1 - 1/2 | 24 | 500 | 113 | 48 |
| 15552 | DQF - B - 250*DQQ - E2K - 10 - 220 | Two - way | 50 | G2 | 42 | 400 | 128 | 53 |
| 15553 | DQF - B - 340*DQQ - E2K - 10 - 220 | Three - way | 40 | G1 - 1/2 | 24 | 500 | 110 | 48 |
| 15554 | DQF - B - 350*DQQ - E2K - 10 - 220 | Three - way | 50 | G2 | 42 | 400 | 123 | 53 |
| 15579 | DQF - B - 240*DQQ - E2M - 10 - 24 | Two - way | 40 | G1 - 1/2 | 24 | 500 | 113 | 48 |
| 15580 | DQF - B - 250*DQQ - E2M - 10 - 24 | Two - way | 50 | G2 | 42 | 400 | 128 | 53 |
| 15581 | DQF - B - 340*DQQ - E2M - 10 - 24 | Three - way | 40 | G1 - 1/2 | 24 | 500 | 106 | 48 |
| 15582 | DQF - B - 350*DQQ - E2M - 10 - 24 | Three - way | 50 | G2 | 42 | 400 | 123 | 53 |
Note: The above are commonly recommended models. You can refer to the following model selection instructions to combine models. For details, consult the salesperson.
FAQ
Q: Compared with ordinary two-way valves, does it have an advantage in flow control?
A: Its KVS value is much greater than that of ordinary two-way valves, and its flow control ability is stronger, which can meet greater flow requirements.
Q: Will water hammer occur during use and affect the system?
A: The valve opens flexibly, which can effectively prevent water hammer and will not cause damage to the system due to water hammer.
Q: Can customized services be provided?
A: Yes! We can provide personalized customization services from drive mode to appearance size according to customers' special working conditions, control accuracy requirements, interface standards, etc. to meet the needs of different projects.
Q: How to ensure the operational stability of the product?
A: Before each timing control electric ball valve leaves the factory, we will conduct 12 strict performance tests, covering various aspects such as sealing, pressure resistance, and continuous operation.
