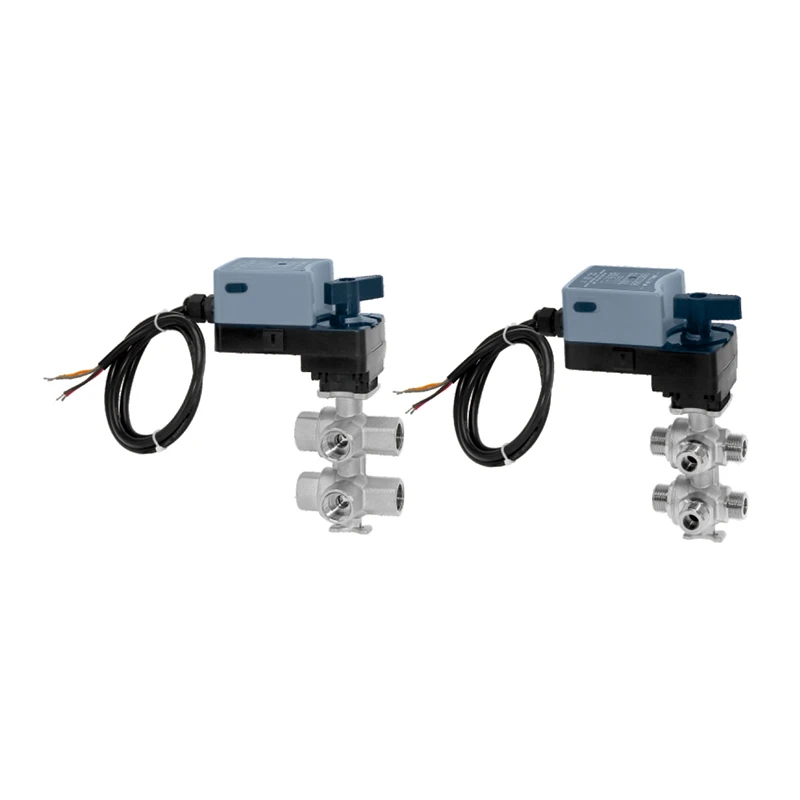

6 Way Ball Valve Feature
The 6-way ball valve is a kind of combination valve, used to connect the heating and cooling piping systems into a single system.
According to the control requirements in the heating, ventilation and air-conditioning system, it is designed as a simple and effective way to regulate the flow of hot water and chilled water. The valve replaces a four-way valve or a two-way valve plus a conversion valve, thus saving the installation cost.
The coupling design between the tpn valve and the actuator is a fool-proof installation system to ensure quick installation and reduce the risk of installation errors.
Product Parameters
Sealing material: EPDM, PTFE
Stem material: HPb59 - 1
Valve body and bonnet material: HPb59 - 1
Nominal pressure: PN1.6
Working medium: Water, fluid temperature 5 - 95℃
Torque: 5N.m
Connection thread: G1/2 female thread/G1/2 male thread G
Rotation direction: 90
why choose us
Precise and leak-free control
Provides precise 90° rotation flow regulation for HVAC/industrial systems. EPDM/PTFE seals ensure bidirectional zero leakage under high pressure/temperature, improving safety and efficiency.
Cost and space efficiency
Integrates multiple valve functions in one, replacing complex devices. Reduces procurement, labor and space costs. Lightweight and compact design simplifies installation/maintenance.
Fast and error-free installation
Reliable coupling with actuators enables fast and error-free assembly. Standardized interfaces and simple operating procedures reduce the risk of rework, speed up project progress and reduce maintenance costs.
Durable and versatile
Suitable for media such as water. Advanced materials and wear-free design resist corrosion/clogging. Suitable for HVAC and industrial systems to ensure long-term stable operation.
FAQ
1. What types of HVAC systems can this 6 Way Ball Valve be used for?
It is suitable for floor heating, fan coil systems, and multi-zone hot and cold water switching control systems, which can effectively improve energy efficiency and reduce the complexity of pipe connections.
2. Do you provide OEM or customized services?
We provide OEM services and can customize channel configuration, interface size, actuator type, etc. according to the specific system requirements of customers.
3. Does this ball valve support electric or pneumatic actuators?
Yes. The 6 Way Ball Valve can be integrated with electric or pneumatic actuators to achieve automated control and meet the needs of industrial control systems.
4. Has the product passed relevant quality certifications?
Yes, our 6-way ball valve products have passed ISO and other relevant certifications and meet the quality and safety requirements of the international market.
