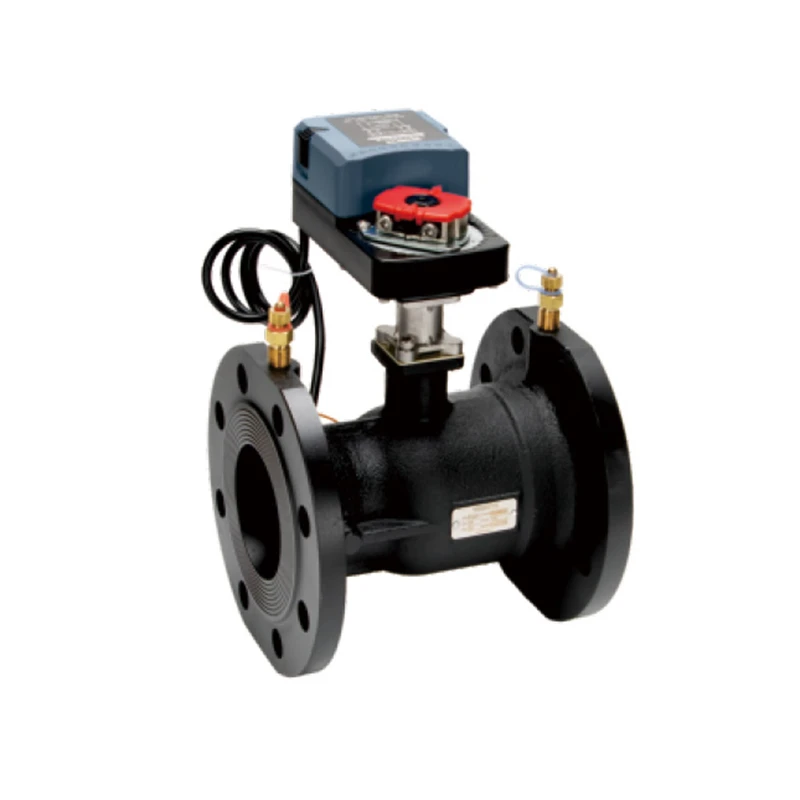

2 Motorized Ball Valve Feature
Unique conical water inlet design realizes precise equal percentage flow control characteristics.
Concise flow channel design, not easy to block, making use safer and more reliable.
High flow capacity, low resistance loss.
Ultra-quiet flow channel design ensures a quiet environment.
High shut-off pressure and high pressure-bearing rating.
Equipped with a manual switch and opening indication.
Equipped with a pressure sensor interface.
Equipped with a temperature sensor interface M10×1.
Product Parameters
Operating temperature: 5 - 95°C
Pressure rating: PN16 or PN25 optional
Working medium: air - conditioning cold and hot water, ethylene glycol solution with ≤ 50% concentration
Connection method: flange connection
Connection standard: GB/T 17241.6
Closing differential pressure: 400KPa
Flow characteristic: equal percentage characteristic curve
Leakage rate: control path ≤ 0.01% Kvs
Regulation mode: angular stroke 90°
Valve body: ductile iron QT450 - 10
Valve seat: polytetrafluoroethylene (PTFE)
Valve ball: 304 stainless steel
Sealing ring: ethylene - propylene - diene monomer (EPDM)
why choose us
High-quality materials
We use durable, corrosion-resistant materials to ensure valves last in a variety of environments.
Precision Engineering
Our electric ball valves are designed for precise flow control and fast response, thereby improving system efficiency.
Customizable Solutions
We offer a variety of sizes, voltages, and connection types to meet various application needs.
Reliable Support
Our professional technical team provides timely assistance and after-sales service to ensure smooth valve operation.
FAQ
Q: What voltages does your electric ball valve support?
A: We provide multiple voltage options such as AC/DC 12V, 24V, 110V, 220V, etc. to meet the needs of different systems.
Q: How long is the service life of the electric ball valve?
A: Our products use high-quality motors and sealing materials, which can reach more than 100,000 opening and closing cycles under normal use conditions.
Q: Can you provide customized interfaces or control methods?
A: Yes, we support customized threaded interfaces, flange connections, and switch and regulating control methods.
Q: Is the product suitable for hot and cold water or other media?
A: Yes, our electric ball valves are suitable for hot and cold water, oils, gases and other media, and need to be selected according to specific working conditions.
