90° Socket Mouth Elbow

90° Socket Mouth Elbow

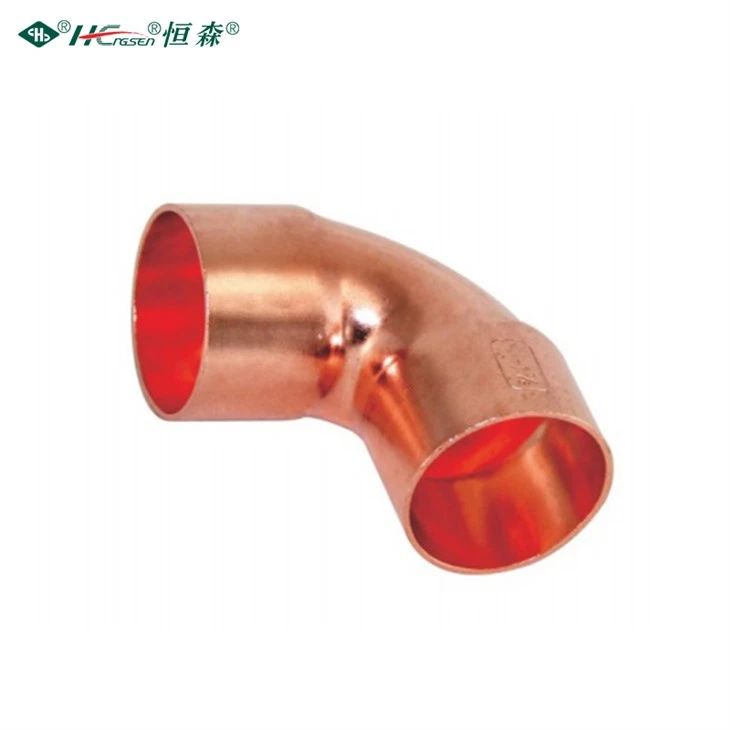

The 90° Socket Mouth Elbow is an essential pipe fitting designed to change the flow direction of pipelines by 90 degrees while ensuring a strong, leak-proof connection. This elbow fitting features a socket connection, allowing for easy installation and secure bonding with the adjoining pipe sections. Commonly used in plumbing, industrial piping, HVAC systems, and water supply networks.
Send Inquiry
90° Socket mouth elbow

With its precision-engineered design, it ensures smooth fluid transition, minimizes turbulence, and reduces pressure loss, making it a reliable solution for both high-pressure and low-pressure piping systems.

Advantages and features

  • High-Quality Material Selection：Manufactured from premium materials such as stainless steel, copper, the 90° Socket Mouth Elbow provides excellent durability, corrosion resistance, and mechanical strength to withstand demanding environments.

  • Secure Socket Connection：The socket mouth design allows for easy welding, or solvent bonding, ensuring a tight and secure fit between pipe sections. This connection minimizes the risk of leaks and enhances structural integrity.

  • Smooth Internal Surface for Efficient Flow：Designed with a smooth bore, the 90° elbow minimizes turbulence and pressure loss, ensuring efficient fluid or gas flow.

90° Socket mouth elbow

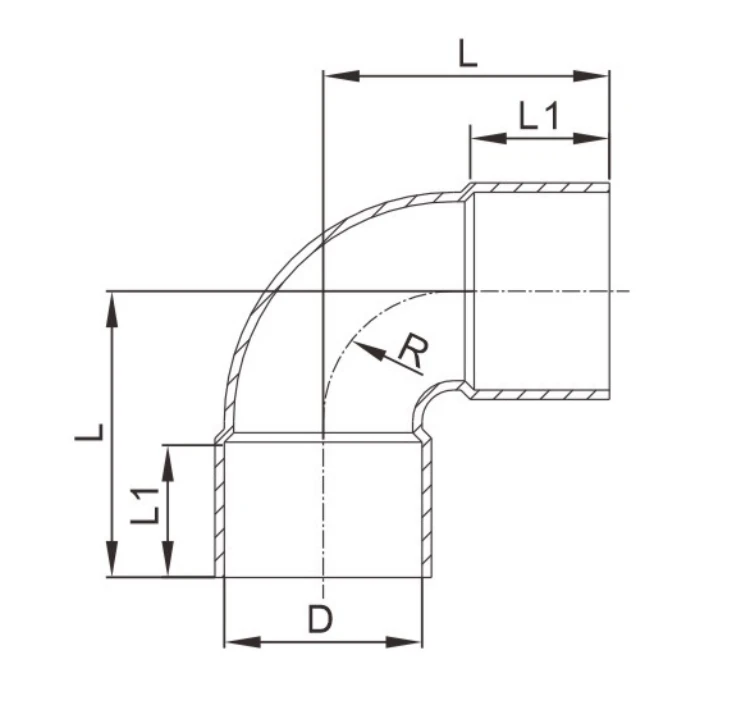

Technical Parameters



Order NO. Model NO. Dimension(mm)
D L L1 R Material wall thickness
43615 L-6 6.05 12 6 5 0.8
43616 L-6.35 6.40 12 6 5 0.8
43617 L-8 8.05 14 7 6 0.8
43618 L-9.52 9.58 16 8 7 0.8
43619 L-10 10.05 17 8 7 0.8

Applications





  • Plumbing and Water Supply Systems：Used in residential, commercial, and industrial plumbing, the 90° socket elbow ensures smooth water flow in distribution networks, pipelines, and drainage systems.

  • Industrial and Chemical Processing：Handles corrosive chemicals, gases, and high-temperature fluids, making it essential for pipelines in refineries, petrochemical plants, and pharmaceutical industries.

  • Oil and Gas Industry：Applied in pipeline infrastructure for crude oil, natural gas, and petroleum refining, where high pressure and temperature resistance are required.

FAQ



Q: What materials are used in it to ensure durability and corrosion resistance?
A: It is depending on the application requirements. High-quality materials ensure excellent resistance to corrosion, pressure, and temperature variations, making it suitable for industrial and plumbing systems.


Q: What pressure and temperature ratings does it support?
A: It is designed to withstand various pressure and temperature ranges depending on the material and specifications. Heavy-duty metal versions can handle high-pressure applications, while plastic variants are suitable for lower-pressure systems. Specific ratings should be confirmed based on project requirements.


Q: Is it compatible with different piping systems?
A: Yes, it is available in multiple sizes and connection standards, ensuring compatibility with various piping systems such as water supply, gas distribution, and industrial pipelines. Threaded, welded, or push-fit options allow for flexible installation.


Q: How does it ensure a secure and leak-proof connection?
A: It features a precisely machined socket connection that ensures a tight and secure fit with the pipe. Proper sealing materials like gaskets or welding techniques further enhance its leak-proof performance, preventing fluid or gas leakage in critical applications.
