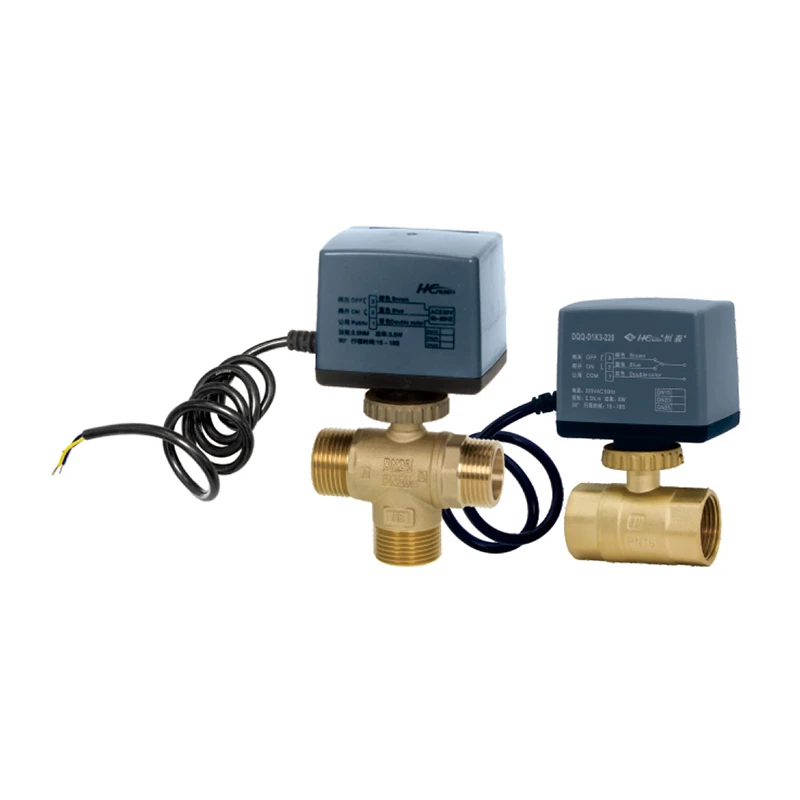

110v Electric Ball Valve Feature
Electric Actuation – Powered by 110V AC for reliable and efficient valve control.
Quick Open/Close – Enables fast response for automated flow regulation.
Compact Design – Space-saving structure suitable for limited installation areas.
Durable Materials – Made with corrosion-resistant components for extended lifespan.
Wide Application – Ideal for HVAC, water treatment, industrial automation, and more.
Product Parameters
Main materials: Valve body is forged and pressed brass; Sealing is PTFE/HNBR
Driver torque: ＜3.5N.m; Valve opening torque: ＜1N.m
Nominal pressure: 1.6MPa for two - way / 2.0MPa for three - way
Working medium: Water; Fluid temperature: 5 - 95℃
Installation and operating instructions

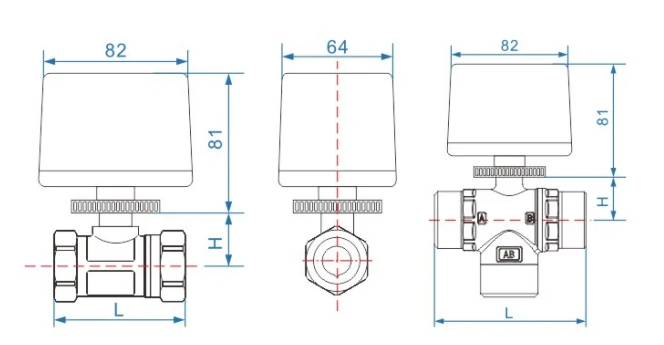

As shown in the figure, threaded connection is adopted. Clockwise rotation is for tightening, and counterclockwise rotation is for loosening.
FAQ
1. Is this electric ball valve easily compatible with our existing equipment?
This product has a simple design and flexible interface, which can be directly compatible with most existing control systems. We provide detailed installation manuals and wiring instructions to ensure that you will not encounter obstacles during installation. If there are special needs, we can also adapt it according to your system.
2. Is frequent maintenance required during long-term use?
The maintenance requirements of electric ball valves are very low, mainly regular inspections of the power supply and the condition of moving parts to ensure their normal operation. Due to the simple and durable structure of the valve, in most cases you only need to perform minor inspections and lubrication, and there is almost no complicated maintenance work.
3. How fast does this product respond?
This electric ball valve responds very quickly, from opening to closing in just a few seconds, suitable for occasions that require rapid adjustment of flow and pressure. Whether it is used in temperature control systems or process automation, you can get instant feedback.
4. If the space on site is limited, is this product suitable?
The electric ball valve has a compact design and is very suitable for environments with limited space. Whether it is a mechanical room, an equipment room or a production line, you can easily install it, avoiding the impact of space restrictions on installation, and it has strong adaptability.
