high pressure electric actuated ball valve
The core advantage of high pressure electric actuated ball valve lies in their excellent sealing and high-pressure resistance. The valve body is made of high-quality materials and is precision-machined to ensure stable operation under high-pressure conditions and reduce the risk of leakage. At the same time, the introduction of electric actuators enables the valve to achieve rapid response and precise control, greatly improving the ability to regulate fluid flow.
We are committed to providing customers with efficient and reliable fluid control solutions to help companies remain invincible in the fierce market competition. Through in-depth understanding and application of the product, we believe that the high-pressure electric ball valve will become an indispensable key equipment in your fluid control system.
Product parameters
●Main material: valve body forged brass, seal PTFE/HNBR
●Valve opening torque: DN15~DN25<1N.m, DN32~50<2N.m
●Driver torque: 2N.m
●Nominal pressure: 2.0MPa
●Working medium: water
●Fluid temperature 5~95℃
●Valve stem size: 9x9
| Ordering model | Product model | Valve type | DN | Thread size | Kv value | Maximum closing pressure difference kPa |

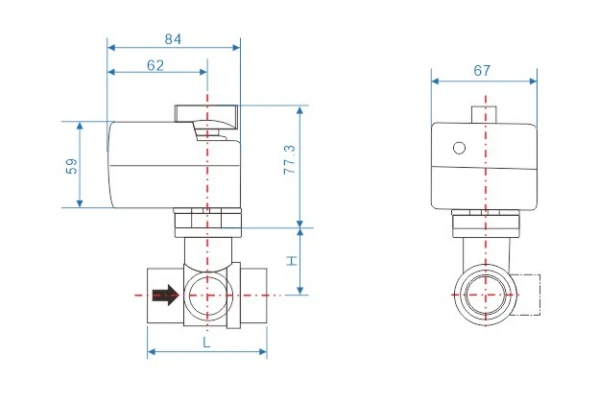

Dimensions | |
| L | H | |||||||
| 15123 | DQF-B-215*DQQ-B1K3-220 | 2 way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| 15128 | DQF-B-220*DQQ-B1K3-220 | 2 way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| 15134 | DQF-B-225*DQQ-B1K3-220 | 2 way | 25 | G1 | 9.5 | 500 | 89 | 38 |
| 15139 | DQF-B-315*DQQ-B1K3-220 | 3 way | 15 | G1/2 | 5.6 | 600 | 60 | 30 |
| 15144 | DQF-B-320*DQQ-B1K3-220 | 3 way | 20 | G3/4 | 9.5 | 600 | 67 | 35 |
| 15149 | DQF-B-325*DQQ-B1K3-220 | 3 way | 25 | G1 | 13 | 500 | 89 | 38 |
| Note: The above table is the commonly used recommended models, please consult for details. | ||||||||
Precautions for high pressure electric actuated ball valve
Inspect the product: Before installation, carefully check whether the valve is damaged, deformed or defective to ensure that the valve is intact.
Determine the installation location: Select a suitable installation location to ensure that the valve is easy to operate and maintain, and avoid being affected by the external environment, such as high temperature, corrosive gas, etc.
Pipeline docking: Ensure that the connection port of the pipeline matches the size of the valve to avoid installation difficulties and poor sealing due to errors.
Clean the pipeline: Before installation, the inside of the pipeline should be cleaned to ensure that there are no impurities, dirt and welding slag to prevent damage to the valve.
Installation direction: Confirm the correct flow direction according to the arrow indication on the valve, ensure that the valve is installed according to the design requirements, and avoid fluid backflow.
Tighten the bolts: When fixing the valve, use appropriate tools to tighten the bolts evenly to avoid affecting the sealing of the valve due to partial overtightening or over-loosening.
Electrical connection: Ensure that the electrical connection of the electric actuator meets the requirements, check whether the wiring is firm, and avoid short circuit or poor contact.
Debugging and testing: After installation, debug and test the system to check whether the valve is flexible to open and close and whether the seal is good to ensure its normal operation.
Safety protection: In high-pressure systems, follow safety operating procedures to ensure the safety of personnel during installation and avoid accidents.
Regular maintenance: After installation, the working status of the valve should be checked regularly, and potential problems should be dealt with in a timely manner to ensure long-term stable operation.
