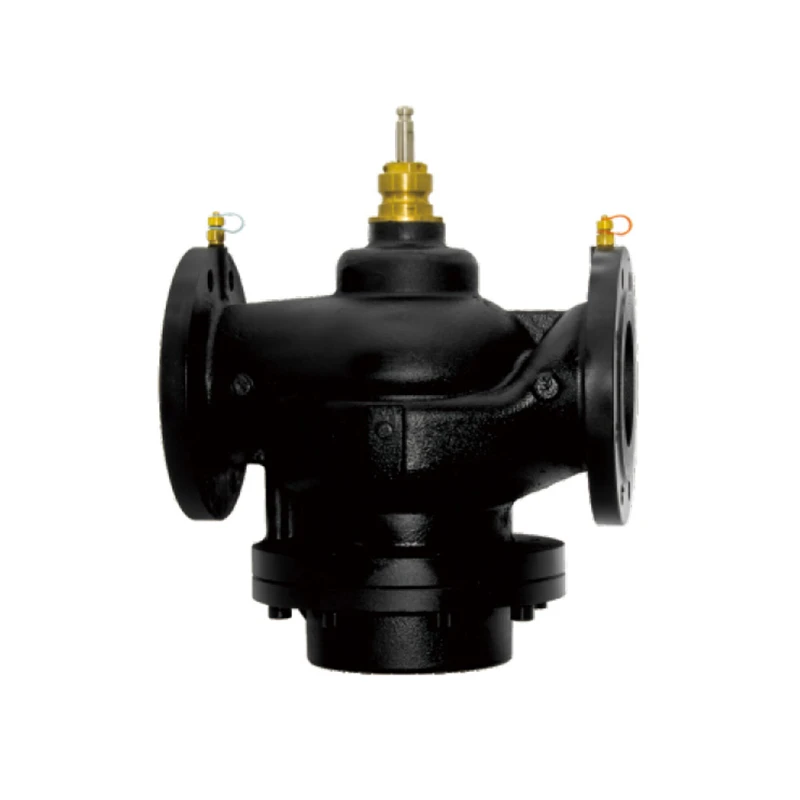

Features of Dynamic balancing electric valve
1. P/T measuring ports are available.
2. The valve characteristics are not affected by the flow setting size.
3. Pressure measuring ports are provided at both ends of the flange.
4. The water volume in the system can be 100% regulated and balanced, while creating a more comfortable environment and energy-saving effect. When the system is rebuilt again, it is not necessary to perform hydraulic balance debugging again.
Specification: DN65 - DN150
Operating Temperature: 5 - 95℃
Pressure Rating: PN16
Working Medium: Air - conditioning cold and hot water, ethylene glycol solution with a concentration ≤ 50%
Connection Method: Flange connection
Connecting Flange Standard: GB/T 17241.6 - PN16
Flow Characteristic: Linear
Leakage Rate: ≤ 0.02% KVS
Flow Regulation: Three gears of 30%, 70%, and 100%
Differential Pressure Range: 0.03 - 0.3MPa
With P/T measurement port

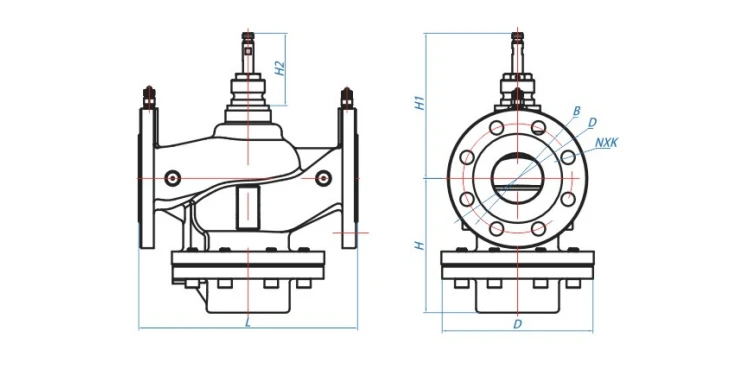

| Order Code | Model | Specification | Caliber | Dimensions (mm) | Kv Value (m³/h) | Stroke | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | D | L | H | H1 | H2 | N | K | ||||||
| 14144 | PHF - DDY - X65F | Two - way Valve | DN65 | ∅145 | ∅185 | 290 | 178 | 192 | 96 | 4 | ∅19 | 23 | 20 |
| 14145 | PHF - DDY - X80F | Two - way Valve | DN80 | ∅160 | ∅200 | 310 | 195 | 203 | 96 | 8 | ∅19 | 33 | 20 |
| 14146 | PHF - DDY - X100F | Two - way Valve | DN100 | ∅180 | ∅220 | 350 | 226 | 245 | 112 | 8 | ∅19 | 60 | 40 |
| 14147 | PHF - DDY - X125F | Two - way Valve | DN125 | ∅210 | ∅250 | 400 | 265 | 240 | 112 | 8 | ∅19 | 72 | 40 |
| 14148 | PHF - DDY - X150F | Two - way Valve | DN150 | ∅240 | ∅285 | 480 | 290 | 250 | 112 | 8 | ∅23 | 125 | 40 |
