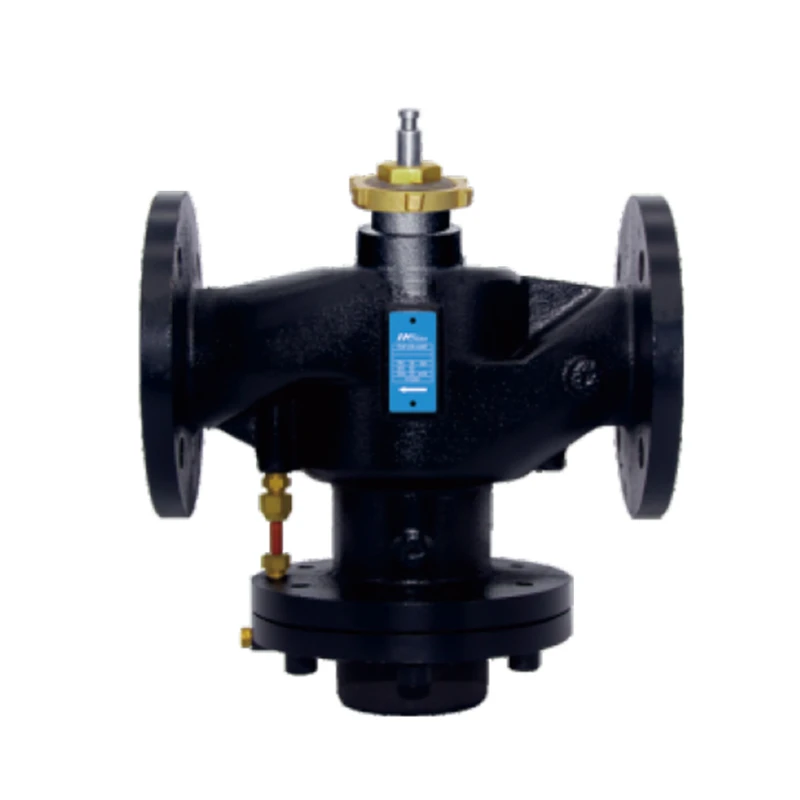

Features of HVAC balancing valve
Precise flow control: Precisely regulate fluid flow, balance system pressure and ensure uniform distribution.
Energy saving: Optimize flow, reduce energy consumption and improve system performance.
Durable structure: Made of corrosion-resistant materials, long service life.
Leak-proof seal: Reliable seal prevents fluid leakage and maintains system stability.
Wide application: Suitable for heating, ventilation and air conditioning systems in commercial/residential buildings.
System protection: Prevent overpressure/underflow, protect equipment safety and extend system service life.
Valve Core: Stainless steel 06Cr19Ni10 (two - way), HPb59 - 1 (three - way)
Valve Stem Sealing Parts: Four - layer PTFE V - ring + hydrogenated rubber
Valve Stem: Stainless steel 06Cr19Ni10
Valve Body and Bonnet Material: HT250
Nominal Pressure (PN): 1.6MPa
Working Medium: Water, fluid temperature 5 - 95°C
Valve Leakage: ≤0.02%KV
Flange Standard: GB/T 17241.6 PN16
Why Choose Us
Excellent quality: Our HVAC balancing valves are made of corrosion-resistant materials to ensure leak-proof performance, high-pressure resistance and long-term reliability, and are verified by rigorous quality testing.
Diverse solutions: A variety of valves are available to suit all HVAC system sizes from commercial complexes to residential systems, with precise flow control for optimal efficiency.
Technical expertise: Experienced engineers provide tailored selection guidance, installation support and responsive after-sales service to quickly resolve system challenges.
Cost-effectiveness: Competitive pricing meets high quality standards, energy-saving design reduces long-term utility costs, and durable construction minimizes maintenance/replacement expenses.
fAQ
Q: How can the sealing performance of the valve be guaranteed to be reliable in the long term?
A: The valve stem seal adopts four layers of PTFE V-ring hydrogenated rubber. This combination has excellent sealing performance, wear resistance and chemical corrosion resistance. After rigorous testing, the valve leakage is ≤0.02% KV, which can ensure reliable sealing in long-term use and reduce the risk of medium leakage.
Q: What is the difference between different types of valve cores (two-way and three-way) in use?
A: The two-way valve core is suitable for simple flow regulation between two pipelines, controlling the opening and closing and flow size of a single channel; the three-way valve core is used for three-pipeline systems, which can realize confluence or diversion functions, and is suitable for HVAC system scenarios that require more complex fluid distribution.
Q: If there are problems with installation after purchase, can you provide technical support?
A: Of course. We have a professional team of engineers who can provide you with detailed installation guidance. From the early installation plan planning, to the technical consultation during the installation process, and the assistance after the installation, we will follow up throughout the process to ensure the smooth installation and normal operation of the valve.
Q: If spare parts are needed later, how long will your delivery cycle be?
A: We have established a complete spare parts inventory management system. For conventional spare parts, we can generally ship them within 3-5 working days after receiving your demand order. If you encounter special circumstances or customized spare parts, we will also make every effort to coordinate and meet your needs as quickly as possible.
