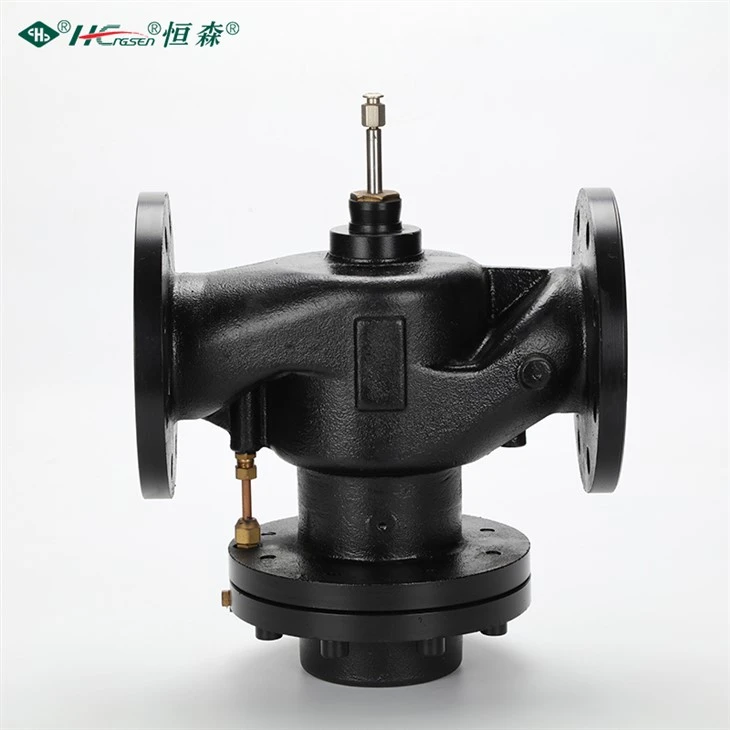

High Pressure Globe Valve

The high pressure globe valve is a valve designed for HVAC systems. It is mainly used to control the flow and pressure of fluids to ensure the stable operation of the system. Its structural characteristics enable it to work effectively under high pressure environments and is suitable for various heating, cooling and ventilation systems.

High Pressure Globe Valve

●Valve core: stainless steel 06Cr19Ni10 (two-way), HPb59-1 (three-way)
●Valve stem seal: four-layer V-type and O-type combined nitrile rubber seal, polytetrafluoroethylene sealing sleeve
●Valve stem: stainless steel 06Cr19Ni10
●Valve body, valve cover material: HT250
●Nominal pressure (PN): 1.6MPa
●Working medium: water, fluid temperature 5~95℃
●Valve leakage: ≤0.03%KV
●Flange standard: GB/T 17241.6 PN16

The Main Features Of High Pressure Globe Valve

Excellent sealing performance: Uses high-quality sealing materials to ensure no leakage.

Large fluid flux: Reasonable flow path design reduces flow resistance and increases fluid flux.

Easy to operate: Provides manual and electric control modes for user convenience.

Purchase suggestions

Clarify the medium type: select the appropriate valve material according to the properties of the fluid (such as acidity, alkalinity, corrosiveness, etc.).

Consider the working conditions: understand the working pressure and temperature to ensure the safety and reliability of the valve.

Choose the appropriate drive mode: select manual or electric control mode according to actual needs.

After-sales service

We provide comprehensive after-sales service, including technical support, installation guidance and regular maintenance, to ensure user satisfaction during use and long-term stable operation of the product.
