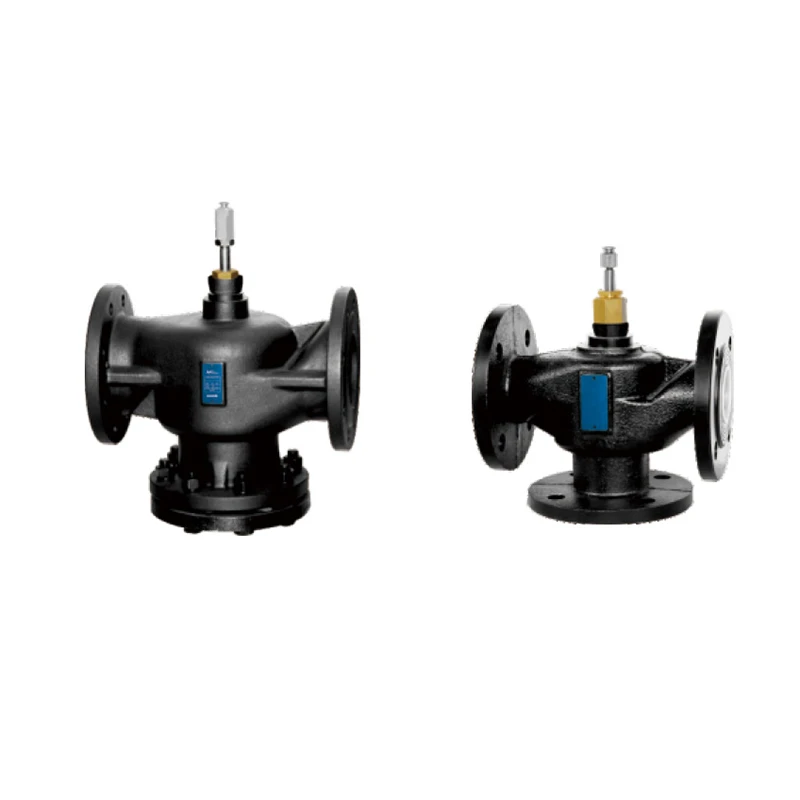

Industrial Globe Valve Advantages
Precise flow control: Globe Valve provides excellent flow regulation capability, enabling detailed flow control, and is suitable for systems that require precise regulation.
Strong reliability: Simple structure and good sealing performance ensure stability and efficiency during long-term operation, reducing the occurrence of failures.
Strong corrosion resistance: The use of corrosion-resistant materials is suitable for handling highly corrosive fluids and extending service life.
Easy maintenance: Simple design and easy disassembly facilitate regular inspection and maintenance, reducing downtime.
Product Parameters
Valve core: Stainless steel 06Cr19Ni10 (two - way), HPb59 - 1 (three - way)
Valve stem seal: Four - layer polytetrafluoroethylene V - ring + hydrogenated rubber
Valve stem: Stainless steel 06Cr19Ni10
Valve body and valve cover material: HT250
Nominal pressure (PN): 1.6MPa
Working medium: Water, fluid temperature 5 - 95℃
Valve leakage: ≤0.02%KV
Flange standard: GB/T 17241.6 PN16
Industrial Globe Valve Installation Instructions
Compatibility and Movement
This series of valves is compatible with Honeywell Nielsen actuators. The valve opens by moving the stem downward.
Pre-installation and connection
Before installation, make sure the pipe is clean. When the pipe is connected to the valve body, it must be concentric, vibration-free, and the water flow direction should be consistent with the valve body marking.
Actuator Installation
When the actuator is installed vertically on the valve body, do not place it under the valve. Please leave enough space for routine maintenance.
Maintenance requirements
When servicing the valve, please cut off or isolate the power supply. During maintenance, make sure that the water system is not pressurized.
FAQ
Q: How do these valves improve energy efficiency?
A: Valves regulate the flow of water to each zone, ensuring only the necessary amount of water is circulated, reducing energy waste and lowering heating costs.
Q: Are these valves compatible with existing systems?
A: Yes, they can be easily integrated into most systems without extensive modifications.
Q: What maintenance do these valves require?
A: Regular checks for leaks are recommended to ensure smooth operation. Ideally, this should be done once a year.
Q: What materials are the valves made of?
A: Valves are made of durable materials such as stainless steel for long-lasting performance and corrosion resistance.
