Two way flow, can be installed at will.
The structure of the whole valve port is matched with the inner diameter of the pipe fitting, with large flow, small resistance and no pressure drop.
With explosion-proof stem design.
Specially selected sealing materials compatible with CO2 operation environment, light switch, and have compensation sealing effect.

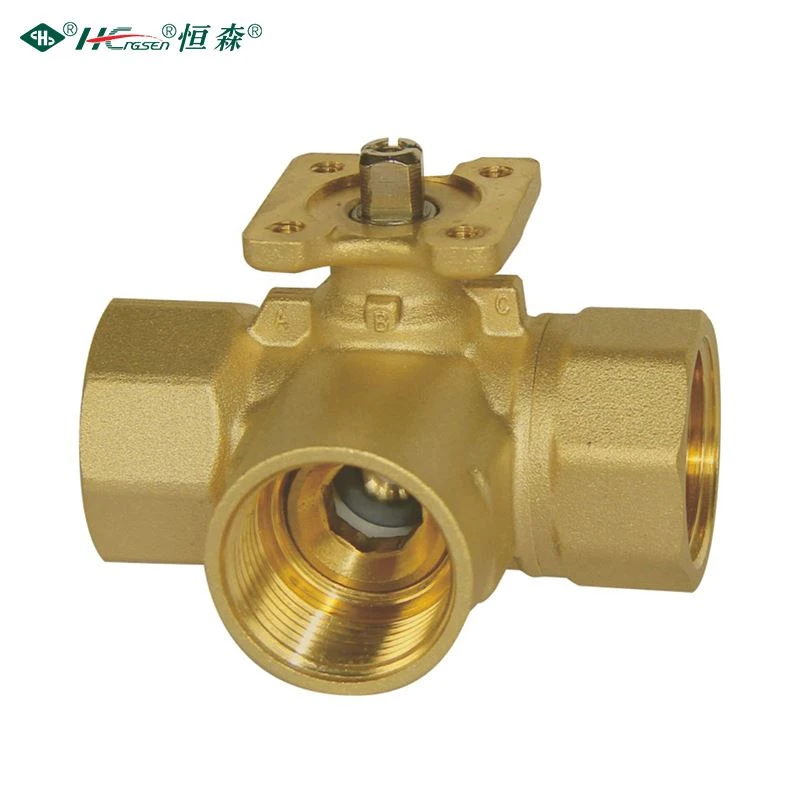

The 3 Inch Ball Valve is a well-designed, built, high-quality fluid control device. The main feature of this ball valve is its 3-inch specification size, which can meet a variety of fluid control needs, whether in industrial environments or indoor water supply systems, to achieve excellent performance.
The advantage of this 3 Inch Valve is its simple structure and reliable performance. Its body is hard and durable, can withstand high pressure environments, and prevent leakage. Whether controlling the flow of gas or liquid, the 3 Inch Ball Valve responds accurately and stabilizes the valve to ensure safe and stable fluid flow.
In addition, this 3 Ball Valve has excellent corrosion resistance, and the special treatment inside the ball valve can prevent corrosion and scaling, and ensure the long-term stability and performance of the ball valve. In addition to its good wear resistance, it can provide long-term and safe fluid control services, no matter what the environment.
Another notable feature is the easy control design. With professionally designed stem and stem, the user can easily and accurately adjust the opening and closing degree of the valve, and the fluid flow control is handy. In addition, the simple and clear logo and window design, let you know the working state of the valve at any time, and the operation is more convenient.
没链接
|
What does LQF-CO2 do?
Small fluid resistance,simple structure, small size, light weight, compact and reliable, good sealing performance, convenient operation,quick on/of, convenient maintenance, wide range of application.
|
Welding process-laser welding
◆ After laser focusing, the power density is high.When high power devices are welded, the micro structure and properties of the weld are very good.
◆ It can be used for micro welding, with even and beautiful welding surface, more environmental protection and cleaning.
Explosion proof design, safer structure
◆ The new design will install the main shaft inside the valve body, providing better explosion-proof protection and safer structure
Unimpeded access design
◆ The pipe is unimpeded when the valve is open to connect the pipe
◆ Valve seat fixing device can install on the stand to significantly reduce pipe vibration.
Quick Detail
◆ Applicable refrigerant: compatible with new refrigerants including HFOs and combustible refrigerants.
◆ Maximum working pressure: 9MPa.
◆ Applicable medium temperature: -30℃~+120℃.
◆ Applicable environment temperature: -20℃-+60℃.
◆ It only needs to rotate 1/4 turn(90°)from full open to full close, with rotation limit from full open to full close;
◆ Only need to turn 1/4 round to open completely from closed
◆ With limit switch either full open or full closed
In addition, the 3 Inch Ball Valve is very simple to install and maintain. Its design, coupled with standardized pipe connections, allows the installation process to be completed in simple operation without special tools. And its high-quality construction design and materials, almost no additional daily maintenance.
Overall, if you are looking for a Valve that is reliable, durable, easy to use, easy to install and provides precise control of fluid flow, then the 3 Inch Ball Valve is the right valve for you. Delivers best-in-class performance and meets your needs wherever you use it.
