Motorized Three Way Valve

Motorized Three Way Valve

The motorized three way valve is used to control the water circuit at the end of the air conditioner. The electric ball valve driver is controlled by the thermostat, and the driver motor drives the valve to open or close, thereby realizing the flow or disconnection of the medium in the pipeline, and supplying air through the fan coil, and finally realizing automatic control of the indoor temperature.
Send Inquiry
motorized three way valve



A motorized three-way valve is an automated valve equipped with an electric actuator that controls the flow of fluids through three different ports. This type of valve is often used in systems requiring the mixing or diverting of fluids. It provides precise flow regulation and automation, making it ideal for a wide range of industrial, commercial, and residential applications.





motorized three way valve



Product parameters
  • Main material: forged brass for valve body, PTFE/HNBR for sealing
  • Driver torque: <3.5N.m
  • Valve opening torque: <1N.m
  • Nominal pressure: 2-way 1.6MPa/3-way 2.0MPa
  • Working medium: water
  • Fluid temperature 5~95℃

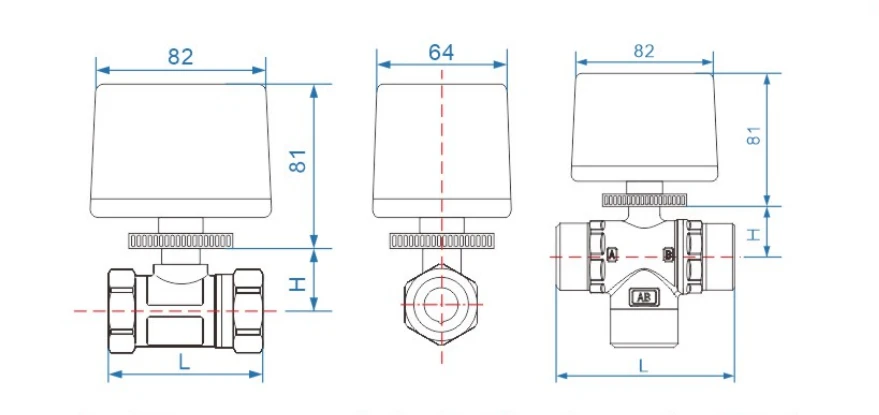

Technical Parameters





Ordering model Product model Valve type Diameter Thread size Kv value Maximum closing pressure
kPa		 Dimensions
L H
15628 DQF-D-215*DQQ-D1K3-220 2 port 15 G1/2 11 600 58 26
15629 DQF-D-220*DQQ-D1K3-220 2 port 20 G3/4 11 600 64 27.5
15632 DQF-D-225*DQQ-D1K3-220 2 port 25 G1 20 500 73 30.5
15635 DQF-D-232*DQQ-D1K3-220 2 port 32 G1-1/4 23.5 400 81 35
15637 DQF-D-W220*DQQ-D1K3-220 2 port 20 G3/4 19.4 600 78 35.6
15638 DQF-D-W325*DQQ-D1K3-220 3 port 25 G1 6 600 88.5 32
Note: The above table is the commonly used recommended models, please consult for details.





Features





  • Streamlined and Easy-to-Install Design: The valve is designed with simplicity in mind, ensuring a hassle-free installation process and reducing overall installation expenses.

  • Robust Pressure Tolerance: It can withstand a significant pressure differential, providing a reliable, tight seal that prevents leaks even in fluctuating pressure environments.

  • Unobstructed Flow Path: The valve's direct flow path ensures seamless water flow, minimizing the potential for clogs or blockages, and enhancing system efficiency.

  • Exceptional KVS Performance: With a KVS value considerably higher than that of traditional two-way valves, it delivers superior flow capacity and operational performance.

  • Effortless Functionality: The valve opens and closes with ease, reducing the likelihood of water hammer and promoting the long-term stability and reliability of the entire system.



FAQ











Q: How does a motorized three-way valve differ from a two-way valve?
A: It has three ports, allowing it to either mix or divert fluids between different pathways, whereas a two-way valve only has two ports and is used to either allow or stop the flow of fluid in one direction.



Q: Is maintenance required for it?
A: Yes, like any automated system, it requires periodic maintenance to ensure optimal performance. This may include checking the actuator, seals, and valve components, as well as cleaning and lubricating parts as needed.



Q: Is it easy to install?
A: Yes, it is relatively easy to install, especially if you follow the manufacturer's guidelines. However, proper installation is essential to ensure that the valve operates correctly and does not affect the system's performance.
