Motorized Valves Water

Motorized Valves Water

Motorized water valves are automated devices used to control the flow of water in pipes or systems. These valves are equipped with an electric actuator that allows for precise control over water flow, opening or closing the valve in response to electrical signals. Motorized water valves are commonly used in various applications, including water treatment, irrigation, HVAC systems, and industrial processes.
Send Inquiry
motorized valves water



Motorized water valves provide an efficient, automated solution for controlling water flow in a wide range of applications. Whether used in irrigation, HVAC systems, water treatment, or industrial processes, it offers precision, energy savings, and the convenience of remote control. By integrating with automated control systems, it reduces labor costs, improves system efficiency, and ensures reliable operation over time.





motorized valves water



Product parameters
  • Main material: Valve body cast iron, seal PTFE/HNBR
  • Driver torque: E2-15=15N.m, E2-20=20N.m, E2-30=30N.m
  • Valve opening torque: DN65~DN80<3N.m, DN100~DN150<8N.m
  • Nominal pressure: 1.6MPa
  • Working medium: water
  • Fluid temperature 5~95℃
  • Valve stem size: DN65~80 is 10x10, DN100~150 is 12x12

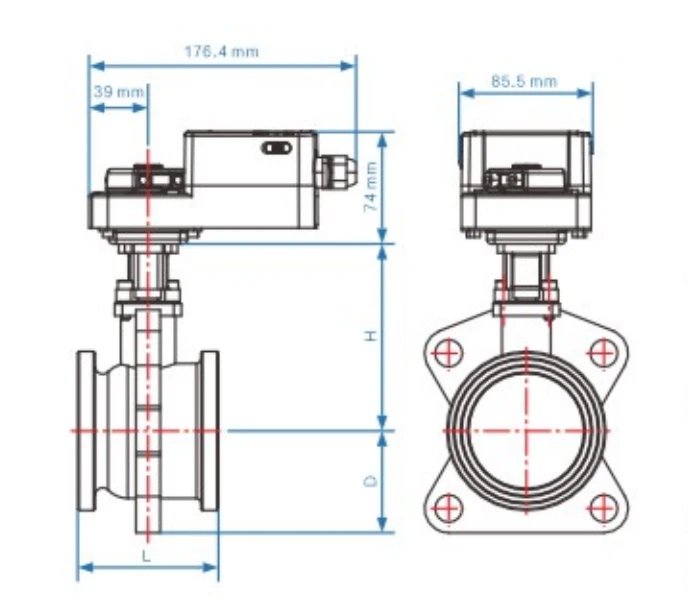

Technical Parameters





Ordering model Product model Valve type Diameter Kv value Maximum closing pressure
kPa		 Dimensions
L H D N
15674 DQF-E-265*DQQ-E2K-15-220 2 port 65 43 300 93 122 68 4*∅18
15675 DQF-E-280*DQQ-E2K-15-220 2 port 80 68 400 108 130 90 8*∅18
15684 DQF-E-265*DQQ-E2M-15-24 2 port 65 43 300 93 122 68 4*∅18
15685 DQF-E-280*DQQ-E2M-15-24 2 port 80 68 400 108 130 90 8*∅18
Note: The above table is the commonly used recommended models, please consult for details.





Features





  • The design is straightforward, offering significant cost savings

  • It features a high pressure differential when closed, ensuring a secure and tight seal

  • The flow of water is precisely regulated by electric power, and its KVS value significantly surpasses that of standard two-way valves

  • The valve opens smoothly, effectively preventing water hammer and ensuring system stability



FAQ









Q: What is a motorized water valve?
A: It is a valve that is operated by an electric actuator to control the flow of water in a pipe or system. The actuator opens or closes the valve based on electrical signals from a controller or automation system.



Q: How does it work?
A: It works by receiving an electrical signal from a control system, which activates the actuator to open or close the valve. The actuator's movement regulates the flow of water through the pipeline, providing precise control over water distribution.



Q: What are the advantages of motorized water valves?
A: It offers automatic operation, precise flow control, energy efficiency, and the ability to integrate with automated systems. This makes it ideal for use in irrigation, water treatment, HVAC systems, and industrial processes, reducing the need for manual intervention.
