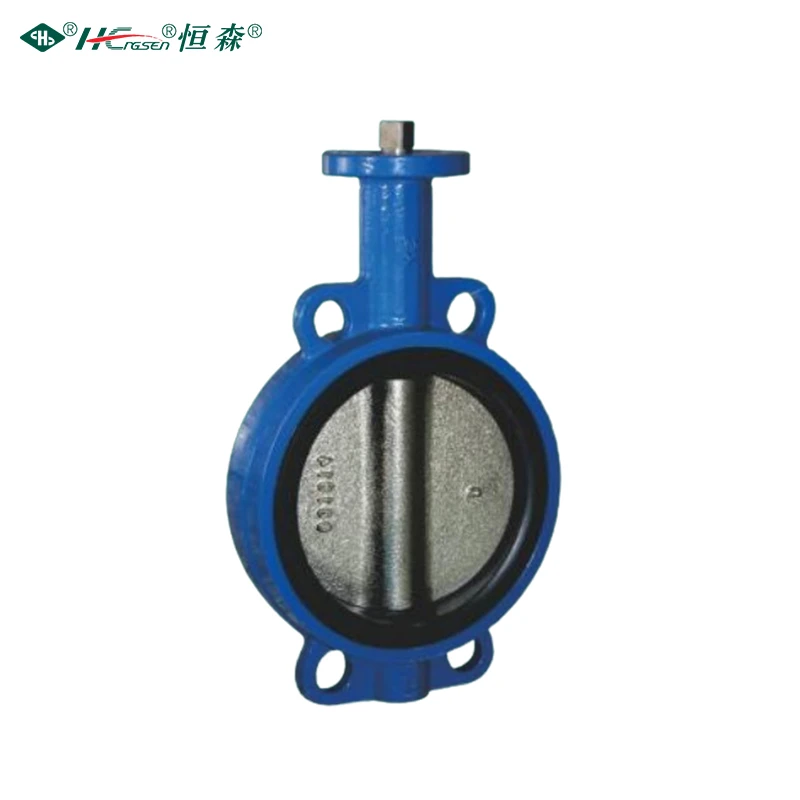

large diameter butterfly valve
The basic structure of the valve consists of a valve body, a butterfly plate, a valve stem and a drive device. The butterfly plate is installed on the central axis of the valve body. The butterfly plate is opened and closed by rotating the valve stem, thereby controlling the on-off and flow rate of the fluid in the pipeline.
Advantages and features
-
Large-diameter design, high-flow transmission: The biggest feature of large-diameter butterfly valves is that they have a large diameter, which can meet the needs of rapid transmission of large-flow fluids. For example, in the main pipeline of the urban water supply system, large-diameter butterfly valves can ensure that a large amount of water can be smoothly transported to various areas to meet the needs of residents and industrial water.
-
Compact structure and convenient installation: Compared with some other types of valves, the structure of large-diameter butterfly valves is relatively simple and compact. Its valve body is small in size and light in weight, which makes it more convenient and quick during installation and maintenance.
Application Scenario
✔ Urban water supply and drainage system: In the city's water supply and drainage pipeline network, large-diameter butterfly valves play a vital role. In the water supply system, it is used to control the transportation and distribution of water sources, and transport water from the water plant to the pipeline network in various regions; in the drainage system, it can be used to control the discharge and treatment of sewage to ensure that sewage can flow smoothly into the sewage treatment plant.
✔ Petrochemical industry: In the petrochemical production process, various high-temperature, high-pressure, corrosive liquids and gas media need to be transported. Large-diameter butterfly valves are widely used in petroleum refining, chemical production, natural gas transportation and other links due to their good sealing performance and corrosion resistance. For example, large-diameter butterfly valves are widely used in crude oil pipelines in refineries, chemical raw material pipelines in chemical plants, and long-distance pipelines of natural gas to ensure the safety and stability of the production process.
✔ Power industry: In thermal power plants and nuclear power plants, large-diameter butterfly valves are used in circulating water systems, cooling water systems, and steam pipeline systems. In the circulating water system, the flow and direction of circulating water are controlled to ensure the normal cooling of the generator set; in the steam pipeline system, the flow and pressure of steam are adjusted to ensure the efficient operation of power generation equipment.
FAQ
Q: How well does it handle high-pressure fluid flow in large industrial pipelines?
A: The construction of a large diameter butterfly valve typically features a robust body and a reliable sealing mechanism. The disc and seat are engineered to withstand the pressure exerted by the fluid, minimizing the risk of leakage.
Q: What kind of maintenance is required to keep it in good working condition over time?
A: Regular maintenance is essential to keep it in good working condition. Periodic inspection of the sealing elements is crucial to check for any signs of wear or damage. Lubrication of the moving parts, such as the stem and the shaft, should be carried out as per the manufacturer's recommendations to reduce friction and prevent corrosion.
Q: Can it be operated remotely in large-scale industrial applications?
A: Yes, it can be operated remotely in large-scale industrial applications. Many large diameter butterfly valves are equipped with actuators, such as electric, pneumatic, or hydraulic actuators, which enable remote control. This is highly beneficial in industrial settings where the valve may be located in hard-to-reach or hazardous areas. Operators can open or close the valve from a safe distance, improving safety and efficiency in the process.
Q: How accurately does it control the flow rate of the fluid in the pipeline?
A: It can control the flow rate of the fluid in the pipeline with a reasonable degree of accuracy. The position of the disc can be adjusted to vary the opening size, thereby regulating the flow. Modern large diameter butterfly valves often come with advanced control systems and precise positioning mechanisms. These features enable operators to fine-tune the flow rate according to the specific requirements of the process.
