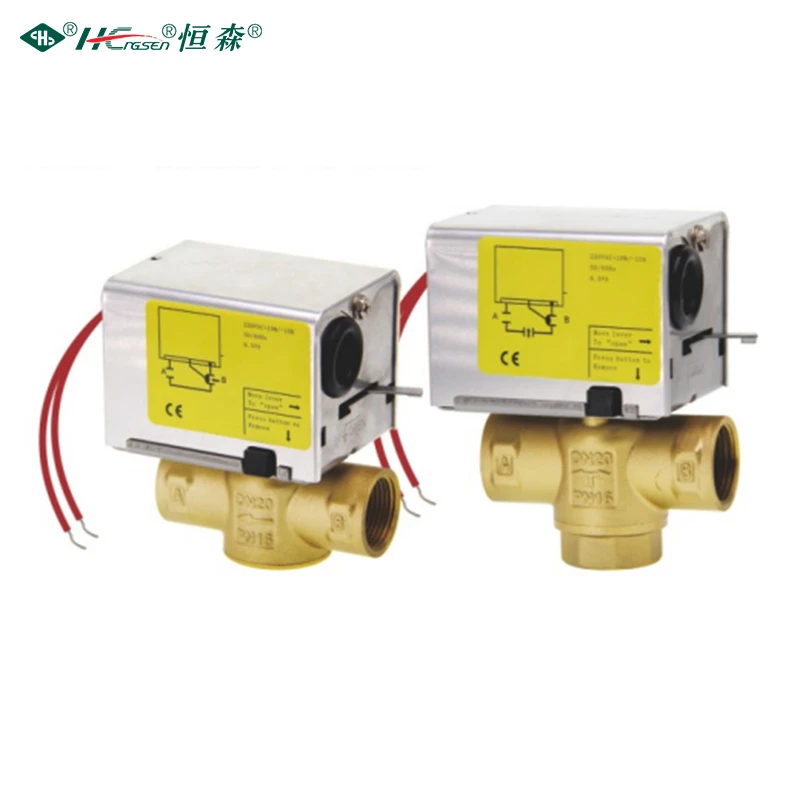

Dual Outlet Water Shut Off Valve

Dual Outlet Water Shut Off Valve

A dual outlet water shut-off valve is a valve designed to control the flow of water to two separate outlets from a single input source. It provides the convenience of managing two water lines independently, allowing for better water flow regulation, safety, and system efficiency.
Send Inquiry
dual outlet water shut off valve



A dual outlet water shut-off valve is an essential component for anyone needing to manage two water outlets independently. It combines convenience, durability, and efficiency, making it perfect for both residential and commercial applications. Whether you're looking to control water flow in your home or business, it offers reliable and long-lasting performance to meet your needs.





dual outlet water shut off valve



Product parameters
  • Valve body material: forged brass
  • Valve stem material: brass
  • Seal material: nitrile rubber (NBR)
  • Working medium: cold/hot water
  • Fluid temperature: 5~95℃
  • Pressure: 1.6MPa
  • Ambient temperature: 0~65℃ Maximum relative humidity is non-condensing
  • Travel time: 11~15 seconds
  • Motor torque: >800gf.cm



Technical Parameters





Ordering model Product model Valve type Diameter Thread size Kv value Maximum closing pressure
kPa		 Dimensions
L W H
12000 DDF-X-215*DFQ-XA1-220 2 port 15 G1/2 2.2 250 81 21 19
12001 DDF-X-220*DFQ-XA1-220 2 port 20 G3/4 2.6 250 81 21 19
12003 DDF-X-225*DFQ-XA1-220 2 port 25 G1 3.2 250 88 25 23
Note: The above table is the commonly used recommended models, please consult for details.





Features





  • The DDF-X series electric valve and the driver adopt the card head connection method.
  • The driver can be installed after the valve is installed. On-site assembly is convenient.
  • The flat design of the driver can be installed close to the wall, occupying a small space.
  • The product is reliable and durable, with low working noise.



FAQ







Q: How does it work?
A: It functions by controlling the flow of water to two separate outlets from a single source. You can independently shut off or allow water to flow to each outlet using the valve's dual control mechanism.



Q: What are the benefits of using it?
A: It offers several benefits, including saving space by combining two valves into one unit, providing more control over water flow to different outlets, and preventing unnecessary water wastage. It also allows for easy installation and efficient water management in residential or commercial setups.
