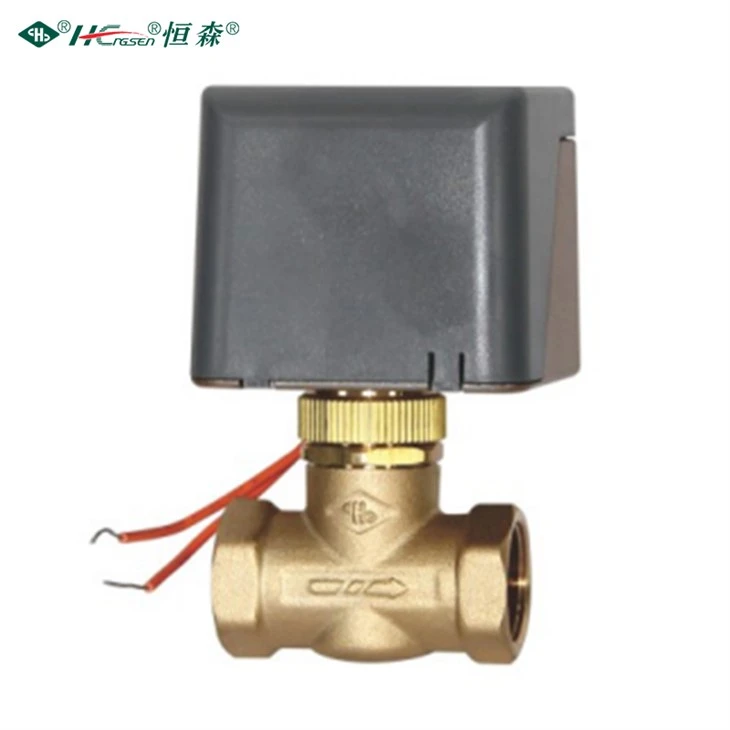

Switch type electric valve
The driver and valve of the DDF-G series electric valve are connected by threaded connection. The driver can be installed after the valve is installed. On-site assembly, flexible and convenient wiring. The flat design of the driver can be installed close to the wall, occupying a small space. The product is reliable and durable, with low working noise, and can work reliably in the high temperature and high humidity environment often found in concealed fan coil units.
- Valve body material: forged brass
- Valve stem material: stainless steel 06Cr19Ni10
- Seal material: nitrile rubber (NBR)
- Working medium: cold/hot water
- Fluid temperature: 5~95℃
- Pressure: 1.6MPa
- Ambient temperature: 0~65℃ Maximum relative humidity is non-condensing
- Travel time: 11~15 seconds
- Motor torque: >800gf.cm
Technical Parameters
| Ordering model | Product model | Valve type | Diameter | Thread size | Kv value | Maximum closing pressure kPa |

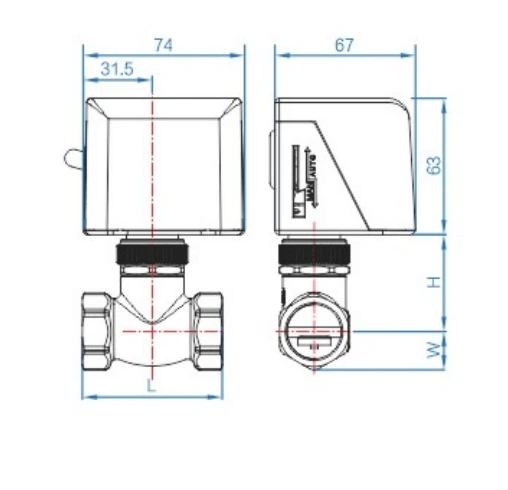

Dimensions | |||
| L | W | H | ||||||||
| 12060 | DDF-G-215*DFQ-JA1-220 | 2 port | 15 | G1/2 | 1.5 | 250 | 52 | 14 | 44.5 | |
| 12061 | DDF-G-215*DFQ-JA1-220 | 2 port | 20 | G3/4 | 2.1 | 250 | 64 | 17.5 | 44.5 | |
| 12662 | DDF-G-215*DFQ-JA1-220 | 2 port | 20 | G3/4 | 2.3 | 250 | 55 | 17.5 | 44.5 | |
| Note: The above table is the commonly used recommended models, please consult for details. | ||||||||||
Features
- Automation Control
Switch-type electric valves are operated automatically through an electric actuator, allowing them to integrate seamlessly with automated control systems such as PLCs or DCS. This enables remote control and intelligent management, eliminating the need for manual intervention and improving efficiency and safety.
- Precise Control
While typically used for on/off operations, switch-type electric valves provide more consistent and reliable performance than manual valves. The electric actuator ensures each switching operation is precise and stable, reducing the errors and inconsistencies associated with manual handling.
- Reduced Labor Costs
Using switch-type electric valves significantly reduces the need for manual operation, especially in systems where valves need to be frequently opened or closed. Operators can control the valves remotely, avoiding the need to frequently enter hazardous or inconvenient work environments, thereby reducing labor costs .
- Enhanced Safety
Switch-type electric valves are often used in applications that require high safety standards, such as in the chemical, oil and gas industries. Automated on/off control can quickly respond to changes in pressure, flow, or temperature preventing, accidents and ensuring the safety of personnel and equipment.
FAQ
Q: Can it be customized for different sizes and pressure ratings?
A: Yes, it can be customized to suit different sizes and pressure ratings. Whether your application requires small or large-scale valves, we can tailor it to handle various pressure levels, flow rates, and pipe sizes, ensuring compatibility and optimal performance for your specific needs.
Q: Is it possible to integrate it with our existing control system?
A: Absolutely! it can be seamlessly integrated with your existing control systems such as PLC, DCS, or SCADA. Custom wiring and communication protocols can be implemented to ensure smooth operation, enabling remote control and automation for improved system efficiency and management.
Q: Can it be customized to handle specific media, like high-temperature or corrosive fluids?
A: Yes, it can be customized to handle a wide range of challenging media, including high-temperature or corrosive fluids. We offer options with materials like stainless steel, titanium, or other special alloys, and can provide seals and coatings designed to withstand extreme conditions, ensuring reliability and safety in demanding environments.
Q: Can it be equipped with additional features like position feedback or fail-safe mechanisms?
A: Yes, it can be equipped with additional features such as position feedback sensors, limit switches, or fail-safe mechanisms. These customizations enhance control accuracy, provide real-time monitoring, and ensure the valve operates reliably under different conditions, with built-in safety features to prevent failure.
