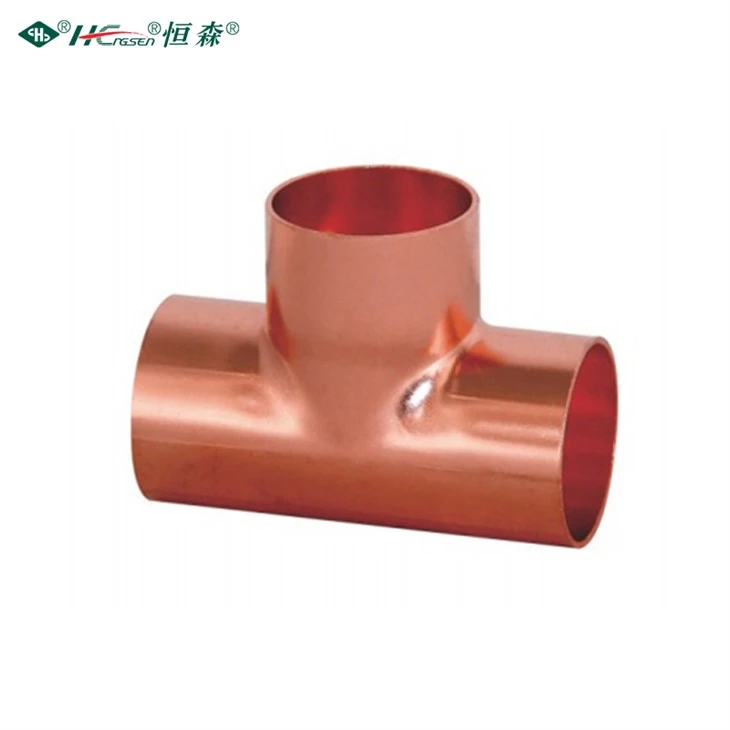

Positive three links
Our straight tees have precise matching of various interface specifications to ensure tight connection with pipes of different diameters. Through various connection methods such as hot melting, welding, and socket joints, straight tees can be firmly connected with pipes of various materials, such as PPR pipes, PE pipes, steel pipes, cast iron pipes, etc., and are widely used in pipeline systems of various buildings, industries, and municipal projects.
Advantages and features
- Precise fit and flexible connection: The product specifications are rich and varied, and can be perfectly adapted to various types of pipes from smaller diameters to larger diameters. Common 20mm and 25mm home pipes, or large-diameter pipes in the industrial field, can all find corresponding specifications of straight tees.
- High strength and durability: Made of high-quality materials, the metal tee has excellent strength and good toughness. It can withstand the high-pressure impact of the fluid in the pipeline and various stresses in the external environment. It is suitable for harsh working environments such as high temperature and high pressure.
Technical Parameters
| Order NO. | Model NO. | Dimension(mm) | ||||
| D | H | L | L1 | Material wall thickness | ||
| 43775 | T-6.35 | 6.35 | 13.6 | 24.4 | 6 | 0.7 |
| 43776 | T-8 | 8.05 | 13.0 | 26.5 | 7 | 0.75 |
| 43777 | T-8x1 | 8.05 | 13.0 | 26.5 | 7 | 1 |
| 43778 | T-9.52 | 9.58 | 14.5 | 29.0 | 8 | 0.75 |
| 43779 | T-10 | 10.05 | 14.5 | 29.5 | 8 | 0.75 |
| 43780 | T-9.52x1 | 9.58 | 14.5 | 29.0 | 8 | 1 |
| 43781 | T-9.52x1.2 | 9.58 | 15.0 | 31.0 | 8 | 1.2 |
Application Scenario
✔ Municipal pipe network system: In the municipal pipe networks such as water supply, drainage, and heating in cities, the positive tee is a key component for realizing pipe branching and intersection. In the water supply system, the water from the main water supply pipe is diverted to the branch pipes of each community or commercial area; in the drainage system, the sewage branch pipes of different areas are collected into the main drainage pipe; in the heating system, the hot water is diverted from the main pipe to the branch pipes of each user to ensure the normal living needs of urban residents.
✔ Agricultural irrigation system: In large-scale farmland irrigation, the positive tee is used to divert water from the main water supply pipe to each irrigation branch pipe. According to the topography of the farmland and the distribution of crops, the distribution of irrigation water flow can be flexibly adjusted to achieve precise irrigation, improve the utilization efficiency of water resources, and promote agricultural production.
FAQ
Q: How effectively does it transmit force and motion in mechanical systems?
A: It transmits force and motion very effectively. Its design, with three precisely - connected links, ensures smooth and accurate transfer. By maintaining stable connections and following well - defined kinematic principles, it can convert input forces into desired output motions with high precision.
Q: What materials is it made of and how durable is it?
A: It is typically made from high - strength materials such as alloy steel or high - grade engineering plastics. Alloy steel versions offer excellent durability, with high resistance to wear, fatigue, and corrosion. This makes them suitable for heavy - duty industrial applications where they need to withstand continuous stress over long periods.
Q: Can it be adjusted or fine - tuned for different operational requirements?
A: Yes, it can be adjusted for different operational requirements. Some positive three - link mechanisms come with adjustable link lengths or connection angles. This allows you to modify the motion characteristics according to the specific needs of your mechanical system.
Q: How well does it perform in high - speed mechanical operations?
A: It performs quite well in high - speed mechanical operations. The balanced design and low - friction connections enable it to maintain stability and accuracy even at high rotational or linear speeds. Precise manufacturing tolerances reduce vibrations and ensure that the three - link system can quickly respond to changes in input forces, making it a reliable choice for applications like high - speed automated production lines.
