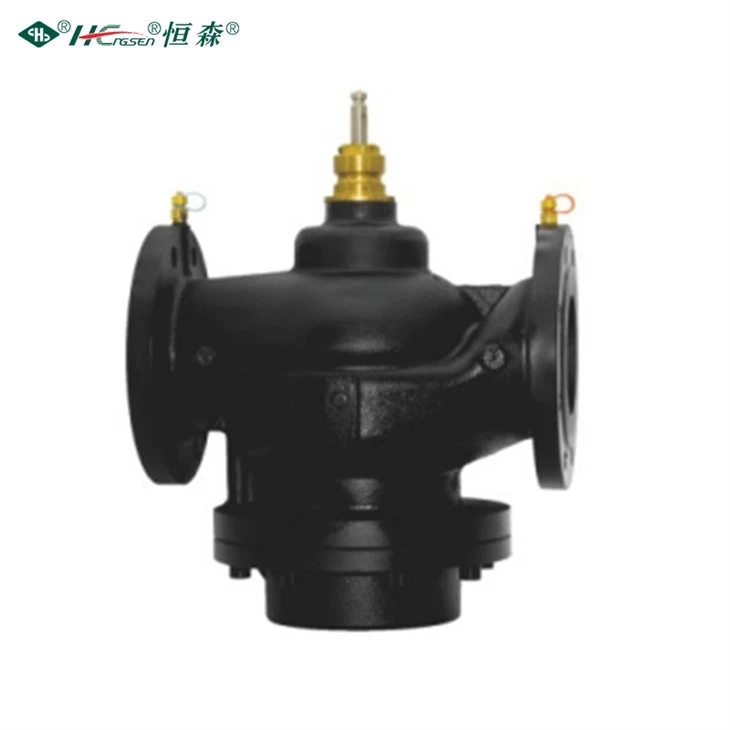

Flange connection dynamic balancing valve
The Flange connection dynamic balancing valve combines reliability, efficiency, and advanced control capabilities, making it a versatile solution for a wide range of industrial and commercial applications.
- Specifications: DN65-DN150
- Working temperature: 5-95℃
- Pressure level: PN16
- Connection method: flange connection
- Connection flange standard: GB/T 17241.6
- Flow characteristics: linear
- Flow regulation: 30%, 70%, 100% three gears
- Pressure difference range: 0.03-0.3MPa
- With P/T measuring port
- Working medium: air conditioning hot and cold water, ≤50% ethylene glycol solution
- Leakage rate: ≤0.01%KVS
Technical Parameters

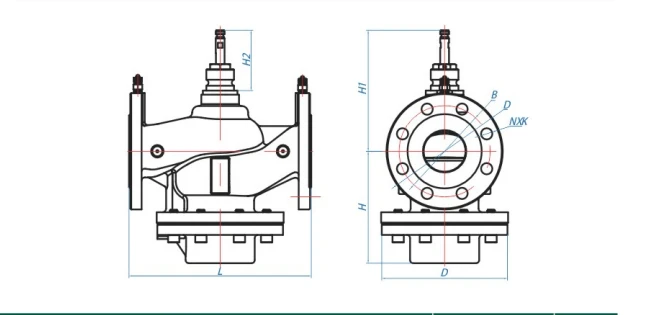

| Ordering model | Product model | Valve type | DN diameter | Kv value | Dimensions | |
| L | H | |||||
| 14138 | PHF-DDY-X65F | 2 port | 65 | 23 | 290 | 192 |
| 14139 | PHF-DDY-X80F | 2 port | 80 | 33 | 310 | 203 |
| Note: The above table is the commonly used recommended models, please consult for details. | ||||||
Parameters and Specifications:
-
Voltage: 24V AC/DC, 110V AC, 220V AC (optional).
-
Actuator Torque: 10 N·m to 200 N·m, depending on the valve size.
-
Connection Type: Threaded, flanged, or wafer options.
-
Material: Body - 316 stainless steel; Ball - PTFE coated 316 stainless steel.
FAQ
Q: What are the key benefits of using it in fluid control systems?
A: It offers precise and reliable control of fluid flow, especially in systems requiring automated operation. The electric actuator allows for accurate valve positioning, making it ideal for applications where consistent performance and remote operation are critical, such as in HVAC, water treatment, and industrial automation.
Q: How does it perform in terms of durability and longevity?
A: It is designed for durability, with robust materials and a reliable electric actuator that can withstand high-cycle operations.
Q: What factors should be considered when purchasing it for a specific application?
A: Purchasers should consider the valve's size, pressure rating, and flow capacity to ensure it matches their system's needs. Additionally, the voltage and power requirements of the electric actuator, as well as its compatibility with existing control systems, are crucial to ensure seamless integration and optimal performance.
Q: Can it be customized to meet specific system requirements?
A: Yes, it can be customized to suit specific system requirements. Customizations may include variations in actuator voltage, sealing materials, or end connections. This allows the valve to be tailored for particular applications, ensuring optimal functionality and performance in unique operational environments.
