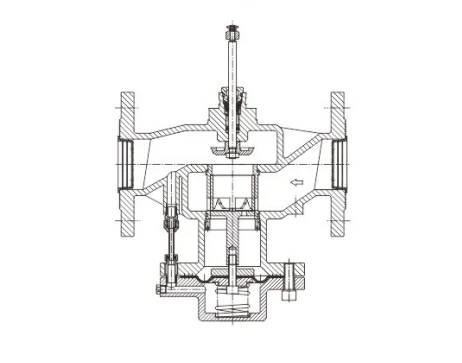

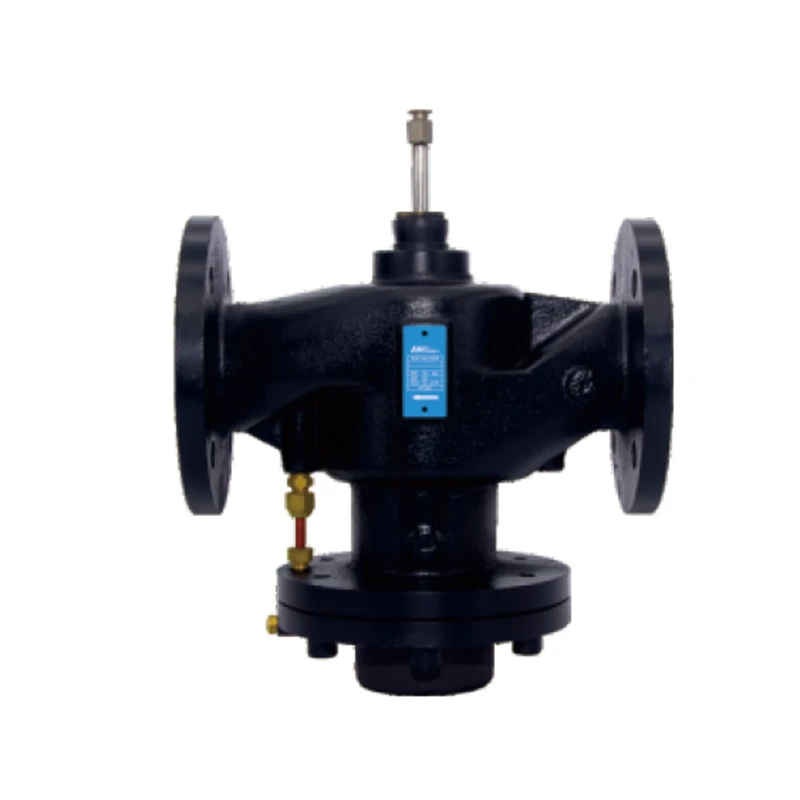

Features of Hydronic Balancing Valve
Precise flow control: Through manual or automatic adjustment, the flow of each branch of the system can be accurately balanced.
Pressure differential indication: equipped with a pressure measuring port, the pressure differential can be monitored in real time, which is convenient for system debugging and maintenance.
Energy saving and high efficiency: optimize water flow distribution, reduce energy waste, and improve system operation efficiency.
Durable material: corrosion-resistant material is used, suitable for hot and cold water systems.
Stem sealing component: Four-layer polytetrafluoroethylene V-ring + hydrogenated rubber
Stem: Stainless steel 06Cr19Ni10
Valve core: Brass
Pressure difference range: 0.03 - 0.3MPa
Nominal pressure (PN): 1.6MPa
Working medium: Water, fluid temperature 5 - 95℃
Valve leakage: Less than 0.02% of the KV value
Flange standard: GB/T 17241.6 PN16
Installation Instructions
This valve is compatible with Honeywell actuators.
The downward movement of the valve stem is the valve closing direction.
Before installing the valve, ensure that the pipeline is clean and free of scale, metal chips and other debris left during welding.
When the pipeline is connected to the valve body, they must be concentric and free from vibration, and the water flow direction should be consistent with that marked on the valve body.
When the actuator is installed vertically on the valve body, avoid installing the actuator under the valve, and leave enough space for daily maintenance.
When maintaining the valve, the power supply must be cut off or isolated, and the water system should not be under pressure.
fAQ
1. What systems can Hydronic Balancing Valve be used for?
Hydronic Balancing Valve is widely used in HVAC systems, including floor heating, fan coil units, hot and cold water distribution and other scenarios to ensure balanced flow in each branch of the system and improve energy efficiency.
2. Does the valve support flow measurement and regulation?
Yes, our products are equipped with differential pressure measurement ports and adjustment scales, which can accurately read and manually adjust the flow, facilitating system commissioning and subsequent maintenance.
3. Does your company accept OEM or customized services?
We support OEM services and can customize valve materials, connection methods, logos and packaging according to project requirements to meet customers' diverse market needs.
4. Can you provide technical support or installation guidance?
Of course. We provide complete product manuals, installation guides and online technical support to assist customers in correct installation and commissioning to ensure stable system operation.
