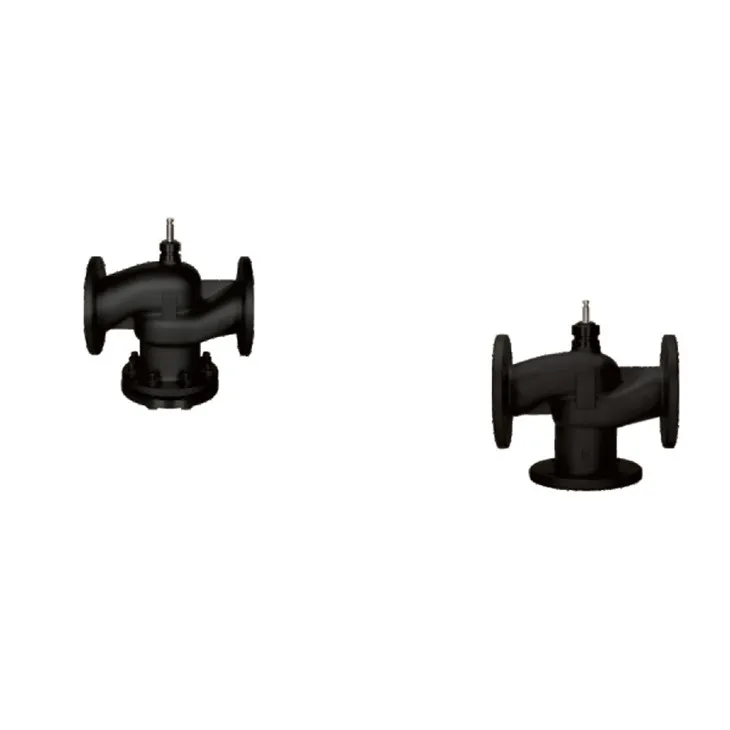

Thermal Balancing Valve Advantages
Stable Temperature Control: Automatically adjusts flow to maintain consistent temperature throughout the system.
Energy Efficiency: Reduces energy consumption by optimizing flow and temperature balance, leading to lower operating costs.
Easy Installation: Simple design allows for quick and hassle-free installation in existing systems.
Improved Comfort: Ensures uniform heating or cooling, enhancing comfort in residential and commercial spaces.
Maintenance-Free Operation: Requires minimal maintenance due to its self-regulating nature, offering long-term reliability.
Material of valve body and valve cover: 304 stainless steel
Material of valve stem and valve core: 304 stainless steel
Sealing material: polytetrafluoroethylene, ethylene - propylene - diene monomer
Valve state: closed on upward stroke
Nominal pressure: PN25
Working medium: hot and cold water (-10 - 130℃), non - corrosive liquid, 50% ethylene glycol, deionized water, etc.
Fluid temperature: -15 - 130℃
Leakage rate: two - way: ≤0.01% Kvs; three - way: ≤0.02% Kvs
Flow characteristics: two - way: equal percentage; three - way: straight - through: equal percentage; bypass: linear
Installation Instructions
Check system status
Before installation, make sure the system is completely shut down and pressure is removed, and check that the pipes are clean and free of debris.
Correct installation position
Install the thermal balance valve on the water inlet or return pipe, and make sure the flow direction indication of the valve is consistent with the system flow direction.
Connect the pipe
Use appropriate accessories according to the connection method of the valve, and ensure that the connection is tight but avoid over-tightening.
Adjust and test
Adjust the flow setting after installation, check the system pressure and temperature, ensure that the valve is working properly and there is no water leakage, and perform a short-term operation test.
fAQ
Q: What types of systems are suitable for this valve?
A: This valve is widely used in heating, air conditioning and hot water systems, especially in scenarios that require precise temperature control and flow regulation.
Q: Is this valve compatible with existing systems?
A: Yes, the valve is designed to be compatible with most existing systems and can effectively regulate flow and temperature.
Q: Does this valve require regular maintenance?
A: Due to its self-regulating characteristics, the valve requires almost no additional maintenance and can ensure long-term stable operation.
Q: How to determine the flow setting?
A: The flow setting is usually adjusted according to system requirements and design parameters. It is recommended to make appropriate adjustments during installation to ensure optimal performance.
