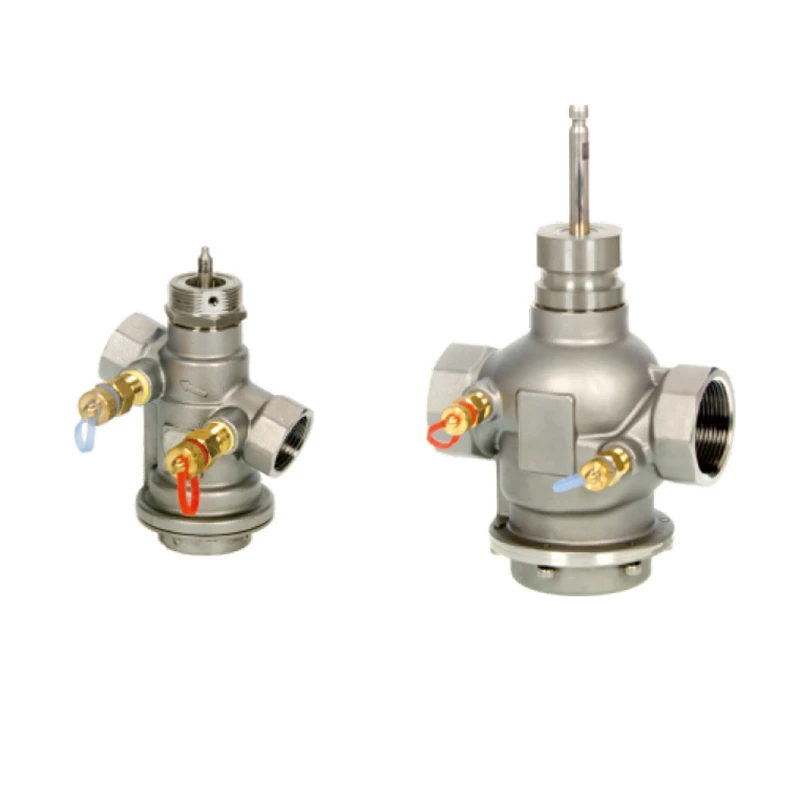

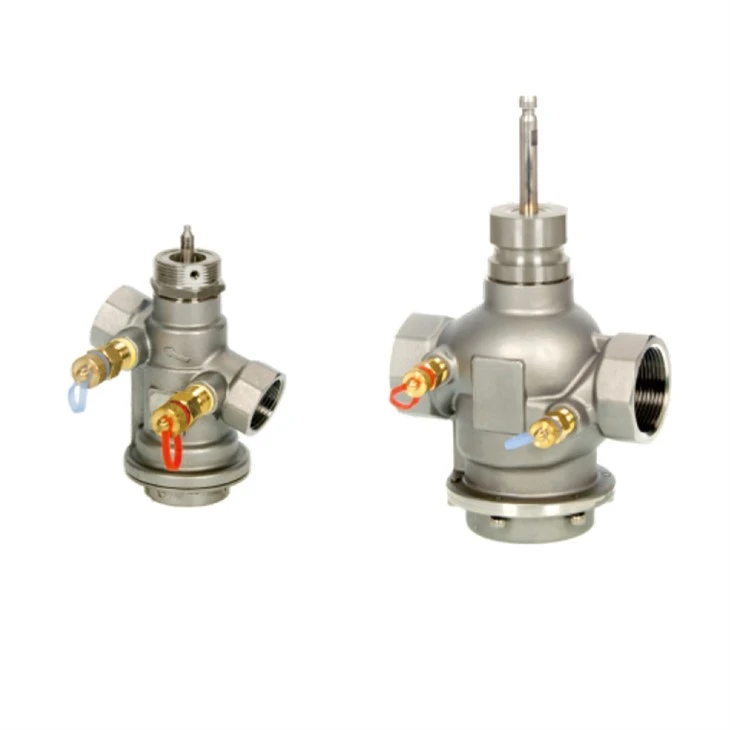

Hvac Flow Control Valves Advantages
Precise flow control: Achieve precise regulation of hot and cold fluids in the system and improve energy efficiency.
Energy saving and consumption reduction: Reduce energy waste, reduce operating costs, and improve overall system efficiency.
System balance optimization: Ensure balanced flow in each area and improve uneven hot and cold.
Strong compatibility: Can be applied to a variety of HVAC systems and adapt to different types of equipment.
Specification: DN20 - DN50
Operating temperature: 5 - 95℃
Pressure rating: PN16
Working medium: Cold and hot water, ethylene glycol solution with content ≤ 50%
Connection mode: Threaded connection
Connection standard: GB/T 7307
Flow characteristic: Equal percentage characteristic curve
Leakage rate: ≤ 0.01% KVS
Flow regulation: There are 5 gears: 1, 2, 3, 4, 5
Differential pressure range: 0.03 - 0.3MPa
With pressure measuring position and temperature measuring hole
Installation Instructions
Compatibility and Cleaning Requirements
This valve is compatible with Siemens drivers. Before installation, ensure that the pipe is clean and free of oxide scale, metal flakes and other debris.
Installation Direction and Connection Notes
The valve stem is in the closing direction when it is downward; the pipe must be concentric and vibration-free when connected, and the water flow direction should be consistent with the valve body marking.
Driver Installation Requirements
When the driver is installed vertically on the valve body, avoid it being located below the valve body, and reserve enough space for maintenance (such as disassembling the driver).
Maintenance Notes
When maintaining the valve, the power supply must be cut off and the system must be pressure-free to avoid operational risks.
fAQ
1. Has the product been tested before leaving the factory? Is there any pressure test or sealing test?
Yes, all valves leaving the factory have undergone strict sealing and pressure resistance tests to ensure stability and reliability in actual use.
2. Do you provide customized services, such as different calibers or special interfaces?
We can provide customized services in various calibers and interface forms according to customer needs to meet different system configurations.
3. Does it have international certification or quality management system?
The company has passed ISO and other quality system certifications to ensure that the products meet international standards and support exports to multiple markets.
4. Can your company support large-volume orders and fast delivery?
With modern production lines and efficient logistics systems, it can quickly respond to large-volume procurement needs and ensure delivery cycles.
