High temperature and pressure resistance
Anti - blocking design with large flow
Anti-corrosion, can work in sewage environment for a long time
Body thickened for impact protection

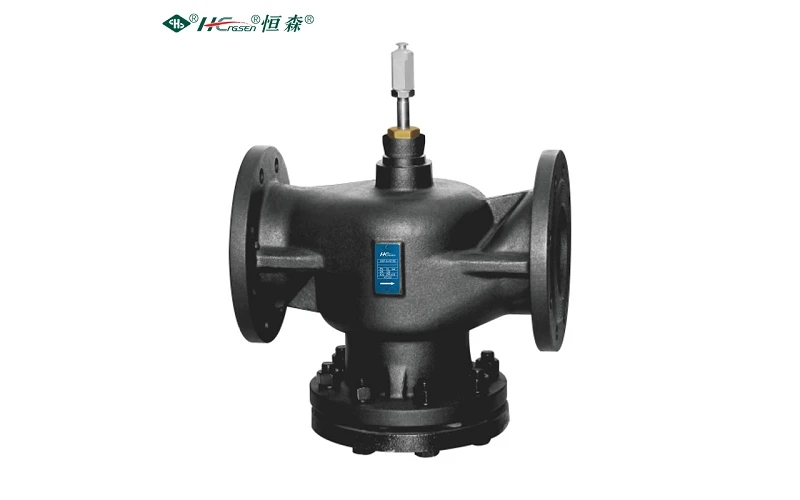

The 3 Way Globe Control Valve is a common control valve that is widely used in HVAC systems, industrial process control and water treatment. It is a valve with flow regulation and flow regulation functions, which can accurately control the flow and flow direction of the medium.The Three Way Globe Valve uses a spherical spool design for excellent fluid control performance. It controls the flow of the medium by adjusting the opening of the spool, so as to achieve accurate control of the system. The design of the spool makes the valve have less pressure loss and higher flow regulation accuracy, and can meet the flow requirements under different working conditions.
|
What does DDF-S-H do?
DDF-S-H series thread cast iron valve can adjust the flow of cold/hot water after it's matched with the controller equipment of DFQ-H series motor actuator. It is available for the liquid control system such as the central air-conditioner, heating, water disposal, industry processing and so on.
|
◆ The stem seal: four layer V type O type nitrile rubber seals,PTFE envelope
◆ Stem material:stainless steel 06Cr19Ni10
◆ Valve core:06Cr19Ni10(2-Way), HPb59-1(3-Way)
◆ Body,bonnet material:HT300
◆ Nominal pressure(PN):1.6MPa
◆ Working medium: water, fluid temperature-10-95℃
◆ Valve leakage:less than 0.03%of KVs

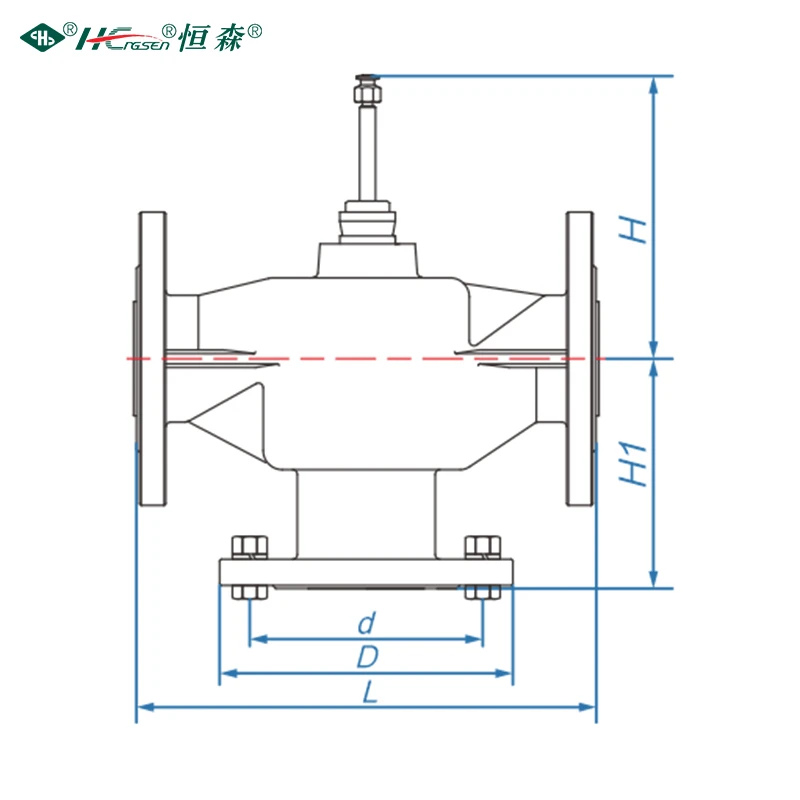

◆ Flange standard:GB/T 17241.6-2008 PN16
◆ Hengsen cast iron electric valve series can work in high temperature environment, and has the pressure adjustment function, can automatically balance the pressure, prolong the service life of the product.
◆ Valves are made of high quality materials, designed and modified by professional engineers and can be used in most situations.
◆ The valve can be adjusted to the material and shape according to the customer's requirements to meet the customer's use requirements.
In addition, the 3 Way Globe Valve also has a flow direction adjustment function. It can change the flow direction of the medium by adjusting the position of the valve core, so as to achieve the flow control of the system. This is very important for systems that need to change the flow of the medium, such as heat transfer systems, mixing systems, etc.The 3 Way Globe Control Valve is also relatively simple to install and maintain. It comes with standard pipe connection sizes and can be seamlessly connected to existing pipe systems. At the same time, it has reliable sealing performance and durability, and can maintain stable performance in long-term use.
In short, the 3 Way Globe Control Valve is a commonly used control valve, with the function of flow regulation and flow direction regulation. By adjusting the opening and position of the spool to achieve accurate control of medium flow and direction, it has good fluid control performance. In areas such as HVAC systems, industrial process Control and water treatment, the 3 Way Globe Valve is a reliable choice to meet the control needs of the system.
