Globe Gate Valve Advantages

Compact structure: easy to install and takes up little space.

Strong durability: high-strength material is used to adapt to high temperature and high pressure environment.

High sealing: valve seat structure is optimized to prevent medium leakage.

Easy operation: smooth opening and closing, reducing operating torque.

Wear and corrosion resistance: high-quality materials, extended service life.

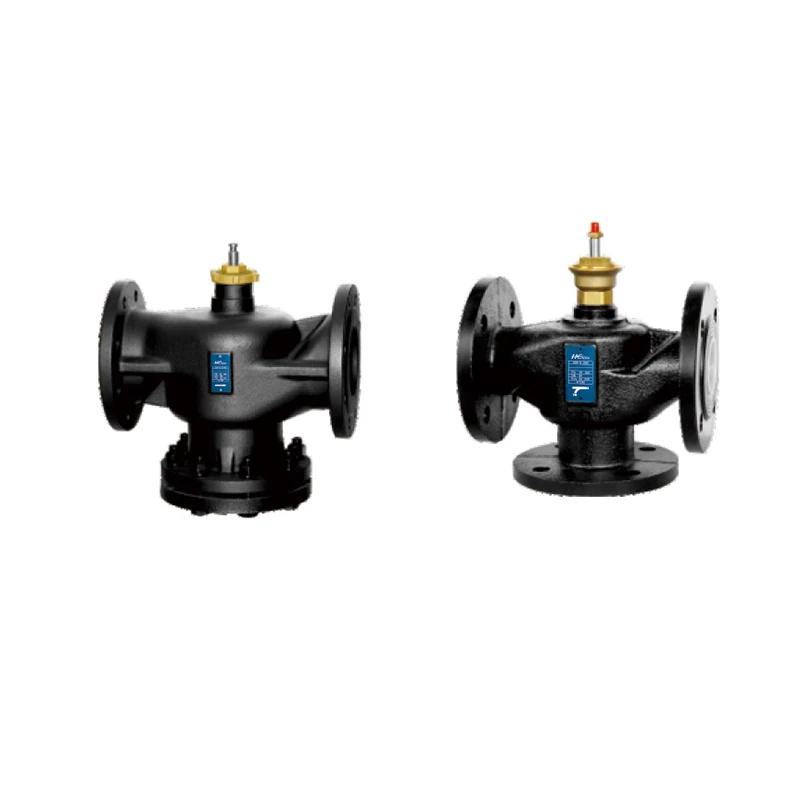

Globe Gate Valve

Product Parameters

Valve core: Stainless steel 06Cr19Ni10 (two-way), HPb59 - 1 (three-way)

Valve stem seal: Four-layer polytetrafluoroethylene V-ring + hydrogenated rubber

Valve stem: Stainless steel 06Cr19Ni10

Material of valve body and valve cover: HT250

Nominal pressure (PN): 1.6MPa

Working medium: Water, fluid temperature 5 - 95℃

Valve leakage: ≤ 0.02%KV

Flange standard: GB/T 17241.6 PN16

Product Specifications

Order Code	Product Model	Valve Type	DN (Nominal Diameter)	Connection Method	Bolt Size	Kv Value	Stroke	Overall Dimensions					Maximum Closing Pressure Difference [kPa]	Maximum Closing Pressure Difference [kPa]	Maximum Closing Pressure Difference [kPa]
								L	d	D	H	H1
12664	DDF - S - J - 232	Two - way	32	Flange	4xM16	21	20	180	∅100	∅135	125	108	600	------	------
12665	DDF - S - J - 240	Two - way	40	Flange	4xM16	28	20	200	∅110	∅145	128	119	500	------	------
12483	DDF - S - J - 250	Two - way	50	Flange	4xM16	34	20	230	∅125	∅165	128	135	350	------	------
12484	DDF - S - J - 265	Two - way	65	Flange	4xM16	54	20	290	∅145	∅185	140	165	250	------	------
12485	DDF - S - J - 280	Two - way	80	Flange	8xM16	67	20	310	∅160	∅200	147	180	200	------	------
12486	DDF - S - J - 2100	Two - way	100	Flange	8xM16	120	40	350	∅180	∅220	191	200	------	300	500
12487	DDF - S - J - 2125	Two - way	125	Flange	8xM16	180	40	400	∅210	∅250	205	230	------	200	350
12488	DDF - S - J - 2150	Two - way	150	Flange	8xM20	256	40	480	∅240	∅285	221	270	------	150	200
12666	DDF - S - J - 2200	Two - way	200	Flange	12xM20	330	40	600	∅295	∅340	254	329	------	------	150
12667	DDF - S - J - 332	Three - way	32	Flange	4xM16	21	20	180	∅100	∅135	125	90	600	------	------
12668	DDF - S - J - 340	Three - way	40	Flange	4xM16	28	20	200	∅110	∅145	128	100	500	------	------
12489	DDF - S - J - 350	Three - way	50	Flange	4xM16	34	20	230	∅125	∅165	128	115	250	------	------
12490	DDF - S - J - 365	Three - way	65	Flange	4xM16	54	20	290	∅145	∅185	140	145	200	------	------
12491	DDF - S - J - 380	Three - way	80	Flange	8xM16	67	20	310	∅160	∅200	147	155	150	------	------
12492	DDF - S - J - 3100	Three - way	100	Flange	8xM16	120	40	350	∅180	∅220	191	175	------	250	350
12493	DDF - S - J - 3125	Three - way	125	Flange	8xM16	180	40	400	∅210	∅250	205	200	------	200	250
12494	DDF - S - J - 3150	Three - way	150	Flange	8xM20	256	40	480	∅240	∅285	221	240	------	------	200
12669	DDF - S - J - 3200	Three - way	200	Flange	12xM20	330	40	600	∅295	∅340	254	300	------	------	150

FAQ

Q: How to choose the right model?
A: Comprehensive consideration based on working medium, pressure level, temperature range and installation space.

Q: What working conditions are suitable for Globe Gate Valve?
A: Suitable for water, steam, oil and chemical media, often used in high temperature and high pressure environments.

Q: Is the valve opening and closing operation smooth?
A: Yes, the optimized design is adopted to ensure smooth and stable opening and closing operations.

Q: Does it support customized size and connection method?
A: Yes, the caliber, pressure level and connection method can be customized according to customer needs.
