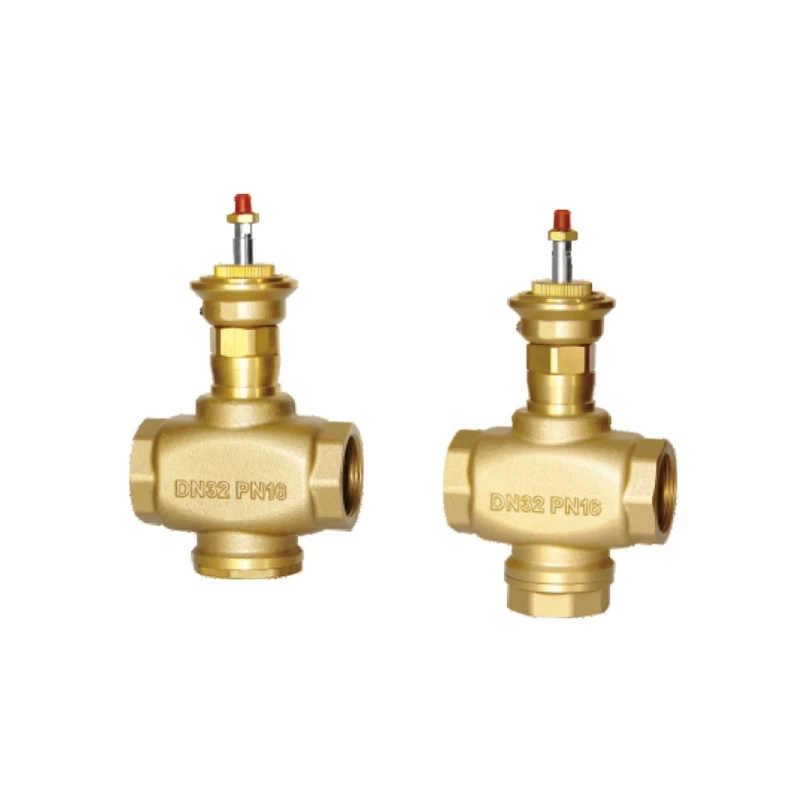

Hydronic Zone Control Valve Advantages
Precise temperature control: By adjusting the water flow, the temperature in each area is ensured to be stable and the comfort level is improved.
Energy saving and high efficiency: Intelligently adjust the flow to effectively reduce energy waste and reduce operating costs.
Automated control: Can be integrated with intelligent systems to achieve remote monitoring and control and improve system management efficiency.
Strong applicability: Applicable to various liquid heating and cooling systems, widely used in residential, commercial and industrial environments.
Product Parameters
Stem sealing parts: Four layers of polytetrafluoroethylene V - rings + hydrogenated rubber
Stem: Stainless steel 06Cr19Ni10
Valve core: Brass or stainless steel
The rest of the parts are all brass
Nominal pressure (PN): 1.6MPa
Working medium: Water, fluid temperature 5 - 95℃
Valve leakage: Less than 0.02% of the KV value
Hydronic Zone Control Valve Installation Instructions
Installation location selection
Choose a suitable installation location to ensure that the valve can operate normally in the system and avoid excessive water flow resistance. The valve should be installed at the water inlet or outlet of the pipe system to ensure optimal performance.
Connect the pipe
According to the valve model and specifications, ensure a good seal when connecting the pipe. Use appropriate tools to connect the pipe to the valve to avoid water leakage or pressure loss.
Electrical wiring
If the valve has an electric control device, please connect the power supply correctly according to the instructions to ensure the wiring specifications and avoid electrical failures. Ensure that the valve is wired correctly to achieve the automatic adjustment function.
System debugging
After installation, check whether the connection between the valve and the pipe is firm. Start the system and perform a functional test to ensure that the valve opens and closes normally and the flow control is accurate. Adjust the system parameters to ensure that the temperature control achieves the expected effect.
FAQ
1. Is it easy to maintain?
Yes, the design is simple and easy to maintain. Regularly check the operation and sealing, and carry out necessary cleaning and lubrication to ensure long-term stable operation.
2. What types of heating and cooling systems are suitable for?
It is widely used in water-based heating and cooling systems, especially for residential, commercial buildings, factories and other environments that require precise temperature control. Whether it is central heating, floor heating or air conditioning system, it can be used.
3. What precautions should be taken during installation?
During installation, make sure the valve is in the appropriate direction and check whether the pipe connection is tight to avoid water leakage. At the same time, make sure that the electrical wiring meets the standards to ensure the normal operation of the automatic control function.
4. Does it support intelligent control?
Yes, many models support intelligent control systems, which can be compatible with building automation systems, and realize remote monitoring and management through temperature control, humidity adjustment, etc.
