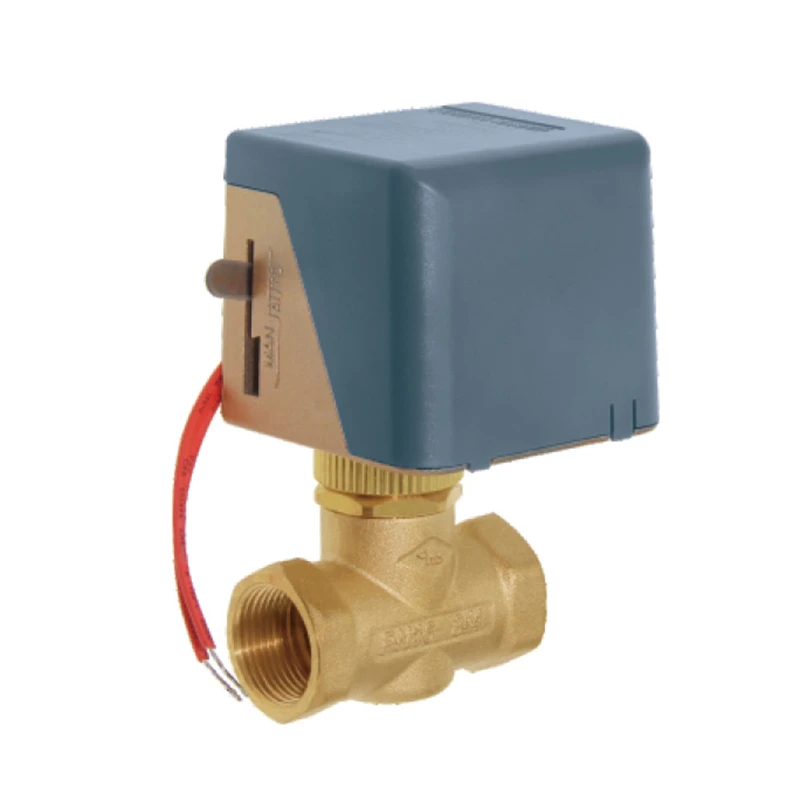

Press Zone Valve Advantages
Good sealing performance: high-quality sealing materials ensure long-term leakage-free operation of the system.
Easy maintenance: simple structure and modular design facilitate later maintenance and replacement.
Strong adaptability: suitable for a variety of pipe materials and system environments, such as HVAC, floor heating and air conditioning systems.
Energy-saving and high efficiency: supports partition control, accurately adjusts flow, and improves overall system energy efficiency.
Product Parameters
Valve body material: Forged brass
Valve stem material: Stainless steel 06Cr19Ni10
Sealing material: Nitrile butadiene rubber (NBR)
Working medium: Cold/hot water
Fluid temperature: 5 - 95℃
Pressure bearing: 1.6MPa
Ambient temperature: 0 - 65℃, with maximum relative humidity without condensation
Stroke time: 11 - 15 seconds
Motor torque: > 800gf.cm
Application Scenario
Underfloor Heating Systems
Press Zone Valve can realize independent temperature control of each room or area, improving the energy efficiency and comfort of the heating system.
Central Air Conditioning Systems
Used to control the water flow in each area in the hot and cold water pipes, realize zoning regulation and energy consumption optimization.
Commercial HVAC Zoning
Applicable to multi-area hot and cold water systems such as office buildings, shopping malls, and hotels, realizing intelligent zoning management.
Industrial Fluid Control
Applicable to independent control of multi-channel process water or cooling systems to improve process stability and efficiency.
FAQ
1. What is the impact of the difference in Kv value on the control accuracy of hot and cold water flow, and how to select the appropriate model?
Kv value is the flow coefficient, which reflects the flow capacity of the valve. For small flow and precise temperature control scenarios, choose a low Kv value to avoid flow fluctuations; for large flow systems, choose a high Kv value to ensure smooth water flow. It is necessary to match the system flow and pressure requirements to ensure flow control accuracy.
2. How is the corrosion resistance and performance stability of the forged brass valve body in hot and cold water alternation and high humidity environments?
Forged brass has a good foundation for hot and cold water corrosion resistance. The product design is suitable for conventional hot and cold water alternation scenarios, and the corrosion resistance and performance retention are reliable under ambient temperature 0-65℃ and non-condensing conditions. It is recommended to avoid contact with strong corrosive media and clean the surface water vapor impurities daily, so that it can operate stably for a long time and meet the needs of hot and cold water control.
3. The motor torque is >800gf.cm. When it is frequently switched on and off for a long time, what are the risks of motor durability and performance degradation?
The motor torque design meets the needs of frequent start and stop. Under rated conditions, it has been tested and verified in practice that the durability is reliable, and the internal structure can output torque stably. If it is operated beyond the working conditions, it may affect the life. When used in accordance with the regulations, the performance stability of long-term frequent switching can be guaranteed.
4. If there are installation adaptation problems or later failures after purchase, what is the after-sales process?
Before installation, if the model and specifications do not match, if it is not installed and does not affect the secondary sales, you can contact after-sales to coordinate replacement; after installation or during use, if there is a failure, attach on-site photos and fault descriptions when giving feedback, the after-sales team will respond quickly, remotely guide the investigation, and arrange technicians to repair and replace accessories on site when necessary to ensure use.
