6-port Ball Valve
The 6-port ball valve is used for controlling the water flow in the terminal air conditioning system. The thermostat controls the electric actuator of the ball valve, which drives the motor to open or close the valve. This regulates the flow of the fluid inside the pipes, allowing or blocking the medium flow. The controlled flow is then directed through the fan coil unit to provide air circulation, ultimately achieving automatic room temperature control.
- Sealing material: EPDM, PTFE
- Valve stem material: HPb58-2
- Housing bonnet material: HPb59-1
- Nominal pressure: PN1.6
- Working medium: water, fluid temperature 5~95℃
- Torque: 5N.m
- Connection thread: G1/2 internal thread/G1/2 external thread G
Rotation direction: 90
Technical Parameters
| Ordering model | Product model | Valve type | Diameter | Thread size | Kv value | Maximum closing pressure kPa |

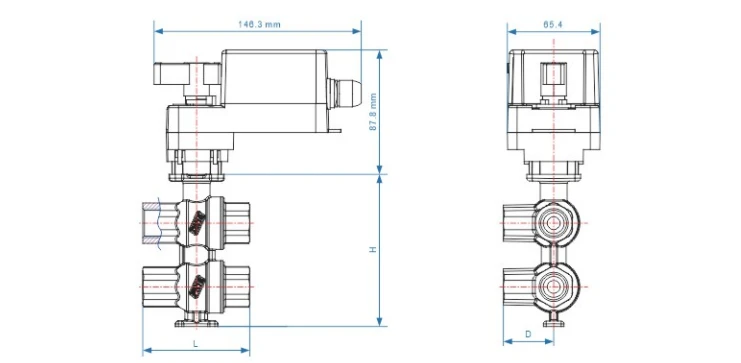

Dimensions | |||
| L | H | D | ||||||||
| 15739 | DQF-B-N615*DQQ-B3K-05-220 | 2 port | 15 | G1/2 | 1.5 | 600 | 75.5 | 107.5 | 35.5 | |
| 15740 | DQF-B-N620*DQQ-B3K-05-220 | 2 port | 20 | G3/4 | 4.0 | 600 | 100 | 139 | 44 | |
| 15741 | DQF-B-N615*DQQ-B3M-05-24 | 2 port | 15 | G1/2 | 1.5 | 600 | 75.5 | 107.5 | 35.5 | |
| 15742 | DQF-B-N620*DQQ-B3M-05-24 | 2 port | 20 | G3/4 | 4.0 | 600 | 100 | 139 | 44 | |
| Note: The above table is the commonly used recommended models, please consult for details. | ||||||||||
Features
- The 6-port Ball Valve is a combination valve used to connect heating and cooling pipe systems into a single system.High Pressure Differential with Excellent Sealing
- Designed to regulate hot and chilled water flow in a simple and effective way according to the control requirements in HVAC systems. The valve replaces a 4-way valve or a 2-way valve plus a changeover valve, thus saving installation costs.
- The coupling between the tpn valve and the actuator is designed as a fool-proof installation system to ensure quick installation and reduce the risk of installation errors.
FAQ
Q: How does it control the water flow in the air conditioning system?
A: It controls the water flow by opening or closing the valve through the motor of the electric actuator, which is driven by the thermostat. This regulates the flow of water through the system and ensures the desired cooling or heating.
Q: What role does it play in temperature regulation?
A: It helps in temperature regulation by allowing or stopping the flow of water to the fan coil unit. By controlling the water flow, it ensures that the air circulating through the system can maintain the desired room temperature, contributing to automatic climate control.
Q: Is it compatible with automatic temperature control systems?
A: Yes, it is fully compatible with automatic temperature control systems. It is controlled by a thermostat that drives the electric actuator to open or close the valve, allowing the system to adjust the temperature based on the set parameters.
Q: How does it ensure efficient operation in HVAC systems?
A: It ensures efficient operation by precisely controlling the water flow within the HVAC system. By regulating when the valve is open or closed, it helps optimize energy use, maintain consistent temperatures, and improve overall system performance.
