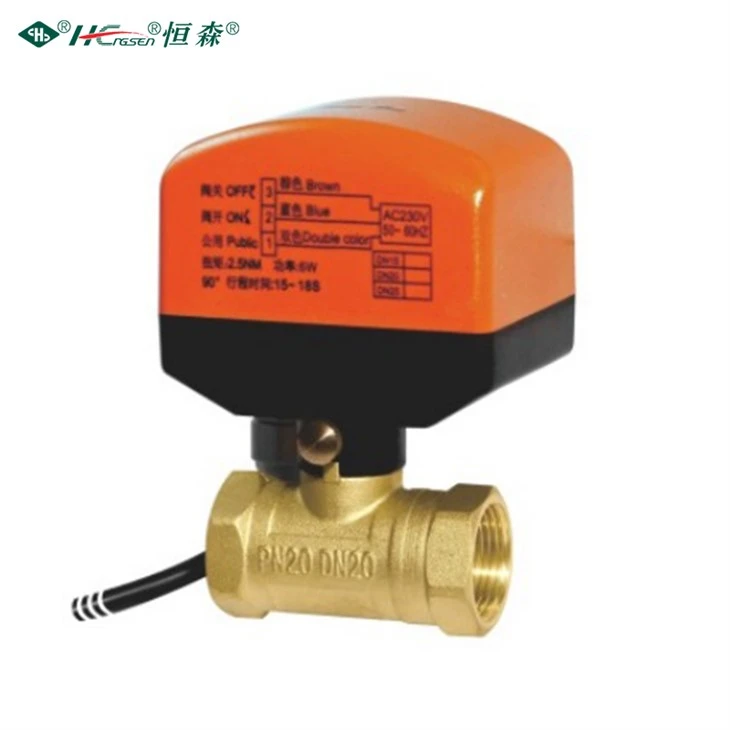

motorized electric ball valve

These valves are commonly used in industries where precise flow control, reliability, and efficiency are needed, such as in HVAC systems, water treatment plants, chemical processing, and oil & gas operations.

Product parameters

Main material: valve body forged brass, seal PTFE/HNBR
Driver torque: <3.5N.m
Valve opening torque: <1N.m
Nominal pressure: 2.0MPa
Working medium: water
Fluid temperature 5~95℃

Technical Parameters

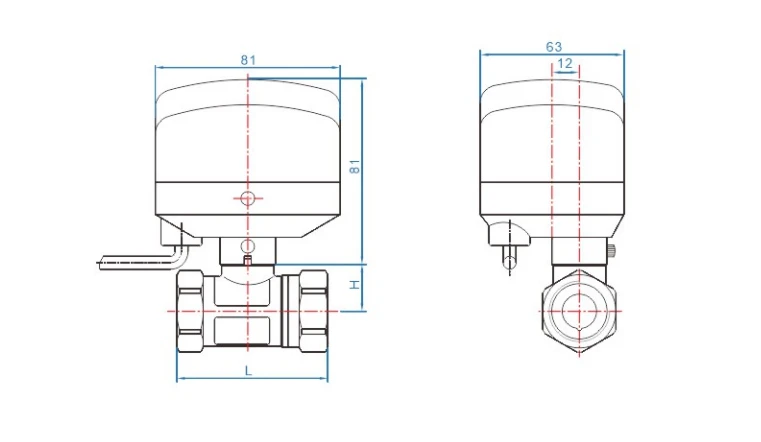

Ordering model	Product model	Valve type	Diameter	Thread size	Kv value	Maximum closing pressure kPa	Dimensions
Ordering model	Product model	Valve type	Diameter	Thread size	Kv value	Maximum closing pressure kPa	L	H
15591	DQF-C-215*DQQ-C1K3-220	2 port	15	G1/2	8	600	62	16.2
15592	DQF-C-220*DQQ-C1K3-220	2 port	20	G3/4	11	600	64	20
15594	DQF-C-225*DQQ-C1K3-220	2 port	25	G1	17.5	500	70	22
15597	DQF-C-232*DQQ-C1K3-220	2 port	32	G1-1/4	21.5	400	74	27
Note: The above table is the commonly used recommended models, please consult for details.

Features

Simplified Structure for Easy Installation and Cost Savings
High Pressure Differential with Excellent Sealing
Unobstructed Flow Path, Preventing Blockages, KVS Value Much Higher Than Conventional Two-Way Valves
Smooth Opening and Closing, Effectively Preventing Water Hammer

FAQ

Q:Can the motorized electric ball valve be used for high-pressure applications?
A:Yes, it is designed to withstand high-pressure conditions. Depending on the material and size, it can be used in applications involving high-pressure fluids and gases, such as in oil & gas or chemical industries.

Q:Is it energy-efficient?
A:Yes, it is highly energy-efficient, consuming minimal power compared to pneumatic or hydraulic systems. Its low energy consumption makes it ideal for systems where energy efficiency is a priority.

Q:Can I control it remotely?
A:Yes, it can be integrated into an automated system or equipped with a remote control option. This allows operators to monitor and control the valve from a distance, improving convenience and safety.

Q:How do I maintain it?
A:It typically requires minimal maintenance due to its simple, durable design. Regular inspection of the actuator and valve seals is recommended to ensure optimal performance, but compared to other valve types, it has fewer maintenance needs.

Q:What industries commonly use it?
A:It is used in a wide range of industries including oil & gas, chemical processing, water treatment, HVAC, food and beverage, and pharmaceutical industries, where precise and automated flow control is required.

Hot Tags: motorized electric ball valve, China motorized electric ball valve manufacturers, suppliers, factory, Wafer Type Butterfly Valve, Motorized Zone Valve, R22 Refrigerant Gauges, 2 Copper Elbow, R410a Charging Hose, Center Room Thermostat
