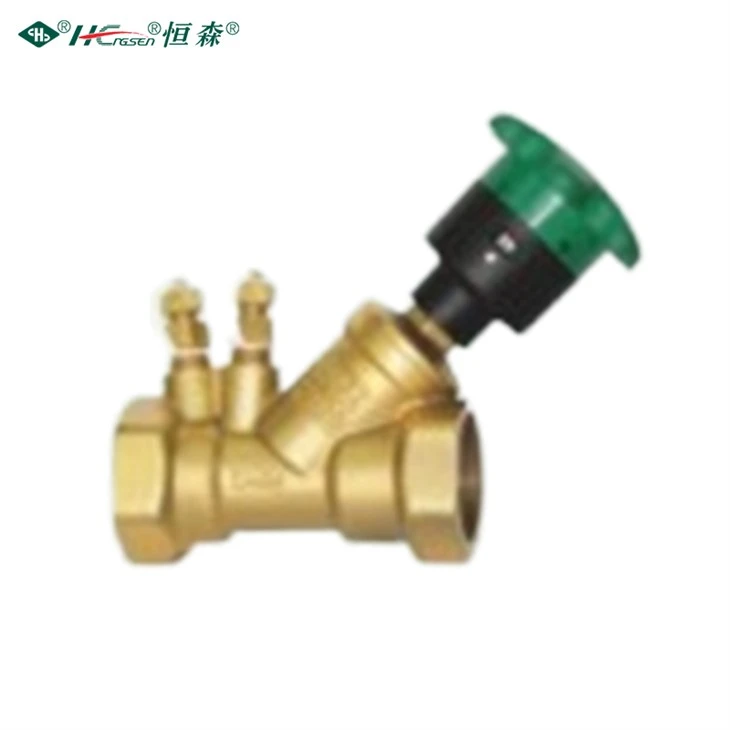

Static flow balancing valve
The Static Flow Balancing Valve is an essential component for achieving optimal performance and energy efficiency in fluid distribution systems, making it a valuable addition to any HVAC or industrial process system.
- Valve body material: DN15~DN50 brass, DN65~DN150 gray cast iron
- Maximum working pressure: 16bar
- Working range: -10~120℃
- Medium: water and ethylene glycol solution, ethylene glycol ≤50%
- Accuracy: ±10%
- Sealing material: EPDM
- Scale: DN15~DN50: 0~6
DN65~DN150: 0~7
Technical Parameters

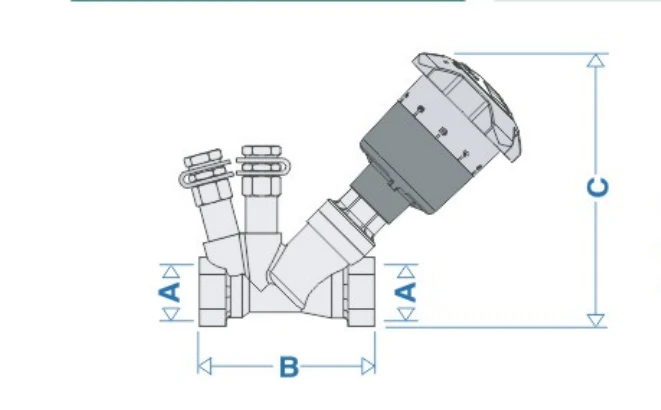

| Ordering model | Product model | DN diameter | Kv value | Dimensions | |
| B | C | ||||
| 14104 | PHF-J-X15L | 15 | 3 | 67 | 143 |
| 14105 | PHF-J-X20L | 20 | 4.4 | 76 | 148 |
| Note: The above table is the commonly used recommended models, please consult for details. | |||||
Parameters and Specifications:
-
HVAC Systems: Used in heating and cooling systems to balance flow in branches and terminal units.
-
Hydronic Heating: Ideal for balancing flow in radiant heating systems and ensuring even heat distribution.
-
Chilled Water Systems: Helps maintain consistent cooling in chilled water networks.
-
Industrial Processes: Utilized in industrial applications where precise flow control is critical.
-
Building Automation: Integrated into building management systems for optimized control and energy savings.
FAQ
Q: What are the key benefits of using it in fluid control systems?
A: It offers precise and reliable control of fluid flow, especially in systems requiring automated operation. The electric actuator allows for accurate valve positioning, making it ideal for applications where consistent performance and remote operation are critical, such as in HVAC, water treatment, and industrial automation.
Q: How does it perform in terms of durability and longevity?
A: It is designed for durability, with robust materials and a reliable electric actuator that can withstand high-cycle operations.
Q: What factors should be considered when purchasing it for a specific application?
A: Purchasers should consider the valve's size, pressure rating, and flow capacity to ensure it matches their system's needs. Additionally, the voltage and power requirements of the electric actuator, as well as its compatibility with existing control systems, are crucial to ensure seamless integration and optimal performance.
Q: Can it be customized to meet specific system requirements?
A: Yes, it can be customized to suit specific system requirements. Customizations may include variations in actuator voltage, sealing materials, or end connections. This allows the valve to be tailored for particular applications, ensuring optimal functionality and performance in unique operational environments.
