180° Socket Elbow
Compared with other types of elbows, the 180° socket elbow can effectively save space while changing the flow direction of the pipeline. It is suitable for places with limited space and special requirements for pipeline layout.
Advantages and features
- Precise angle design: Manufactured strictly according to the bending angle of 180°, the angle error is controlled within a very small range, ensuring that the pipeline can achieve precise docking when turning, so that the fluid can flow smoothly in the pipeline, reduce fluid turbulence and pressure loss caused by angle deviation, and improve the operating efficiency of the pipeline system.
- High strength and durability: Made of high-quality metal materials, it can withstand the high-pressure impact of the fluid in the pipeline and various stresses of the external environment. It can still maintain stable performance under harsh working conditions, such as high temperature, high pressure, strong corrosion and other environments, with a long service life and reduced maintenance and replacement costs.

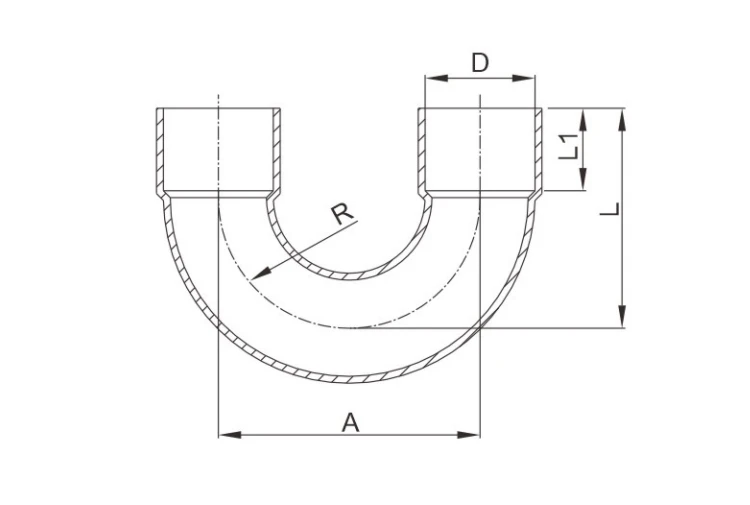

Technical Parameters
| Order NO. | Model NO. | Dimension(mm) | |||||
| A | D | L | L1 | R | Material wall thickness | ||
| 43739 | U-6 | 18 | 6.05 | 16 | 6 | 9 | 0.7 |
| 43740 | U-8 | 24 | 8.05 | 20 | 7 | 12 | 0.8 |
| 43741 | U-10 | 30 | 10.05 | 24 | 8 | 15 | 0.8 |
| 43742 | U-12.7 | 36 | 12.75 | 30 | 10 | 19 | 0.8 |
| 43743 | U-15.88 | 48 | 15.95 | 37 | 12 | 24 | 1 |
| 43744 | U-16 | 48 | 16.07 | 37 | 12 | 24 | 1 |
| 43745 | U-19 | 60 | 19.10 | 45 | 13 | 30 | 1 |
Why Choose Us?
✔ Building water supply and drainage system: In the water supply and drainage pipelines of buildings, it is used to realize the turning and connection of pipelines. For example, in the pipeline layout of places such as bathrooms and kitchens, the pipelines can be reasonably arranged in a limited space to ensure smooth drainage and avoid pipeline blockage.
✔ Industrial pipeline system: In industrial fields such as petroleum, chemical, electric power, and metallurgy, 180° socket elbows are widely used in various process pipelines. In the process of oil refining, it is used to connect pipelines between different equipment to realize the transportation of crude oil, refined oil and other media; in chemical production, it can be used to transport various corrosive liquids and gases. Its high strength and corrosion resistance ensure the safe operation of the pipeline system in harsh chemical environments.
✔ HVAC system: In the HVAC system of buildings, it is used to connect ventilation ducts and air conditioning water pipes to realize the transportation and distribution of air and water. In the central air-conditioning system of large shopping malls, office buildings and other places, by using 180° socket elbows, the pipeline layout can be optimized, the operating efficiency of the air-conditioning system can be improved, and a comfortable indoor environment can be provided for users.
FAQ
Q: How well does it fit with the existing pipeline systems?
A: It is designed to have a precise fit with most standard pipeline systems. The socket dimensions are engineered to match common pipe sizes accurately. This ensures a tight and secure connection, minimizing the risk of leaks or misalignment.
Q: Can it be used for high - pressure fluid transportation?
A: Yes, it can be used for high - pressure fluid transportation when selected appropriately. The construction and material of the 180° socket elbow are designed to handle significant pressure differentials. However, it's important to ensure that the pressure rating of the elbow you choose matches the requirements of your specific high - pressure application to guarantee safe and reliable operation.
Q: How easy is it to install and maintain?
A: It is relatively easy to install. The socket - type design allows for simple insertion of the pipes, and in many cases, no complex tools are required. Maintenance is also straightforward. Regular visual inspections to check for any signs of wear, leakage, or damage are sufficient. In case of any issues, replacement is usually hassle - free due to its standard design and compatibility with common pipeline components.
