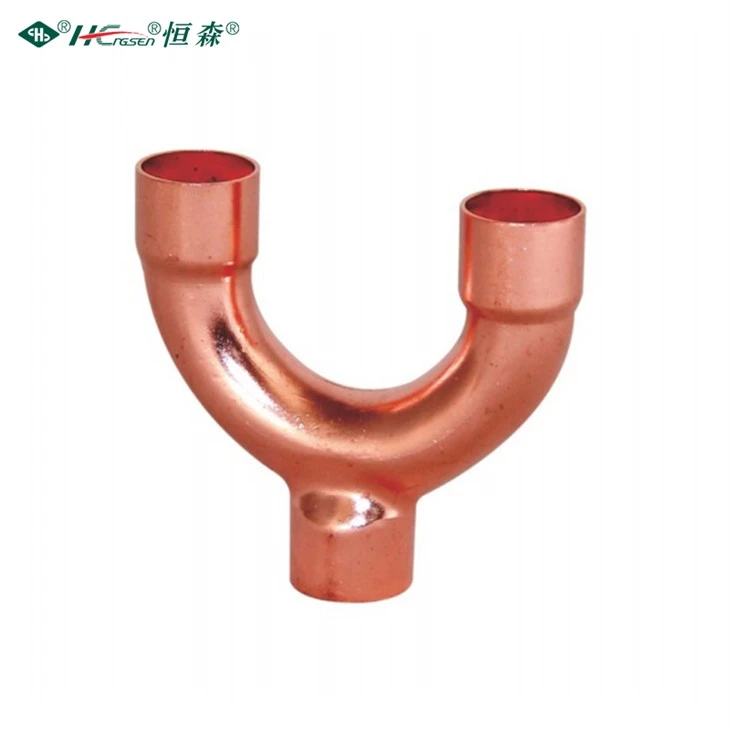

Y-shaped Triple Socket Tee
This design makes it play a key role in various piping systems, and is especially suitable for complex piping layout scenarios that require diversion or merging.
Advantages and features
- Flexible branch connection: The unique Y-shaped structure and three socket interfaces allow the pipeline system to make a variety of branch connections. It provides great flexibility for the design and installation of the pipeline system and meets the complex requirements of pipeline layout in different projects.
- Accurate size specifications: Produced strictly in accordance with standard size specifications to ensure the dimensional accuracy of each interface. Y-shaped three-socket tees of different specifications can perfectly match pipes of various diameters to ensure the tightness and stability of the connection. During the installation process, accurate dimensions can reduce installation difficulties and sealing problems caused by dimensional deviations and improve construction efficiency.
Technical Parameters
| Order NO. | Model NO. | Dimension(mm) | ||||
| D | A | L | L1 | Material wall thickness | ||
| 43759 | Y-9.52 | 9.58 | 25.4 | 37 | 8 | 0.8 |
| 43760 | Y-12.7 | 12.75 | 30 | 48 | 10 | 1 |
| 43761 | Y-16 | 16.07 | 48 | 62 | 12 | 0.9 |
| 43762 | Y-19 | 19.1 | 60 | 70 | 13 | 0.95 |
| 43763 | Y-22 | 22.10 | 68 | 84 | 15 | 1.1 |
| 43764 | Y-28 | 28.10 | 89 | 107 | 19 | 1.4 |
| 43765 | Y-35 | 35.10 | 109 | 120 | 22 | 1.6 |
Application Scenario
✔ Firefighting pipe system: In the firefighting pipe system, it is used to divert firefighting water from the main pipe to different fire hydrants or sprinkler heads to ensure that when a fire occurs, the firefighting water can be delivered to each area that needs to be extinguished in a timely and accurate manner. Its high strength and reliable sealing performance can withstand the high-pressure impact of firefighting water, ensure the normal operation of the firefighting system, and provide strong support for firefighting and rescue work.
✔ Municipal pipe network system: In the city's water supply, drainage, heating and other municipal pipe networks, the Y-shaped three-socket tee plays an important role. In the water supply system, the water from the main water supply pipe is diverted to the branch pipes of each community or commercial area; in the drainage system, the sewage branch pipes of different areas are collected into the main drainage pipe; in the heating system, the hot water is diverted from the main pipe to the branch pipes of each user to ensure the normal life needs of urban residents.
FAQ
Q: How well does it distribute fluids or gases evenly among the three outlets?
A: It is engineered to distribute fluids or gases quite evenly among the three outlets. Its unique Y - shaped design and carefully calculated internal geometry ensure that the flow is divided in a balanced manner. Through advanced hydraulic or pneumatic design principles, the pressure drop across each outlet is minimized and made as consistent as possible. This helps in maintaining stable operation in systems where uniform distribution is crucial, such as in industrial cooling systems or gas - supply networks.
Q: Can it be easily integrated into our existing complex pipeline network?
A: Yes, it can be easily integrated into your existing complex pipeline network. Its triple - socket design is standardized to fit most common pipe sizes.This allows for seamless expansion or modification of your pipeline layout without major overhauls, saving both time and costs during installation.
Q: How does it handle high - flow and high - pressure situations?
A: It is designed to handle high - flow and high - pressure situations effectively. The thick - walled construction, especially in metal - made versions, provides the necessary strength to withstand the force exerted by high - velocity fluids or high - pressure gases.
