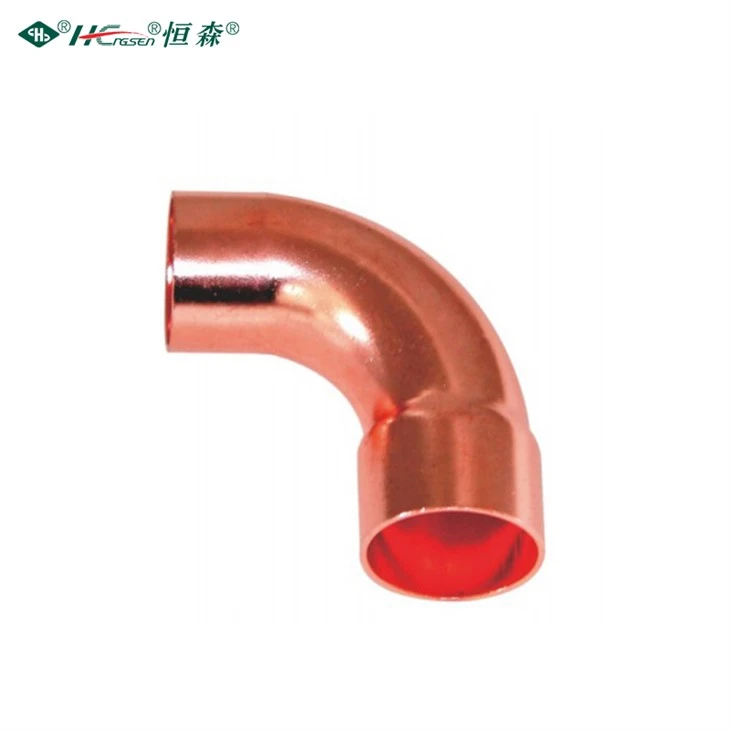

90°Socket Big Elbow
The 90° Socket Big Elbow durability, resistance to corrosion and abrasion, and ability to handle high-pressure and high-flow applications make it a critical component for sectors such as oil and gas, chemical processing, water treatment, and mining.
Advantages and features
1. Excellent material performance
- Corrosion resistance: It can withstand chemical corrosion and high temperature environments, and is suitable for chemical, petroleum and other fields.
- High strength and pressure resistance: The forging process improves the structural strength and supports high-pressure systems (up to 9000Lbs pressure level).
2. Optimized structural design
- Long radius elbow: The curvature radius is large, which reduces fluid resistance and energy loss.
- Standardized production: It meets international standards and is suitable for a variety of pipe specifications (1/8" to 4").
Technical Parameters
| Order NO. | Model NO. | Dimension(mm) | |||||
| D1 | D2 | L | L1 | R | Material wall thickness | ||
| 43710 | LD-9.52x∅9.52 | 9.58 | 9.52 | 22 | 8 | 12.7 | 0.8 |
| 43711 | LD-10x∅10 | 10.05 | 10 | 22 | 8 | 12.7 | 0.8 |
| 43712 | LD-12x∅12 | 12.05 | 12 | 28 | 10 | 19.0 | 0.8 |
|
43713 |
LD-12.7x∅12.7 | 12.75 | 12.7 | 28 | 10 | 19.0 | 0.8 |
| 43714 | LD-15.88x∅15.88 | 15.95 | 15.88 | 38 | 12 | 24.0 | 1 |
Why Choose the I-Shaped Socket Elbow
✔ Wide Application Range – Ideal for use in oil and gas, chemical processing, mining, water treatment, and more.
✔ Available in Multiple Sizes – Custom sizes and pressure ratings for both small and large-scale systems.
✔ Cost-Effective – Affordable, reliable, and long-lasting for industries looking to optimize their piping systems.
FAQ
Q: How does it improve installation efficiency and reduce operational costs in pipeline systems?
A:The modular design allows seamless integration with HDPE/PVC pipes across commercial/residential projects, minimizing system downtime.
Q: What certifications or durability benchmarks ensure its long-term performance under extreme conditions?
A:It withstands continuous 70°C liquid transport. Pressure-rated up to 16 bar, it maintains leak-free operation for over 15 years in industrial wastewater scenarios.
Q: Can it support customized configurations for large-scale infrastructure projects?
A:Yes. It offers diameter customization from 1/2" to 3" with optional inspection ports, aligning with enterprise-grade drainage requirements for factories, hospitals, and high-rises. Technical blueprints and load simulations are provided for engineering validation.
