I-shaped Socket Elbow

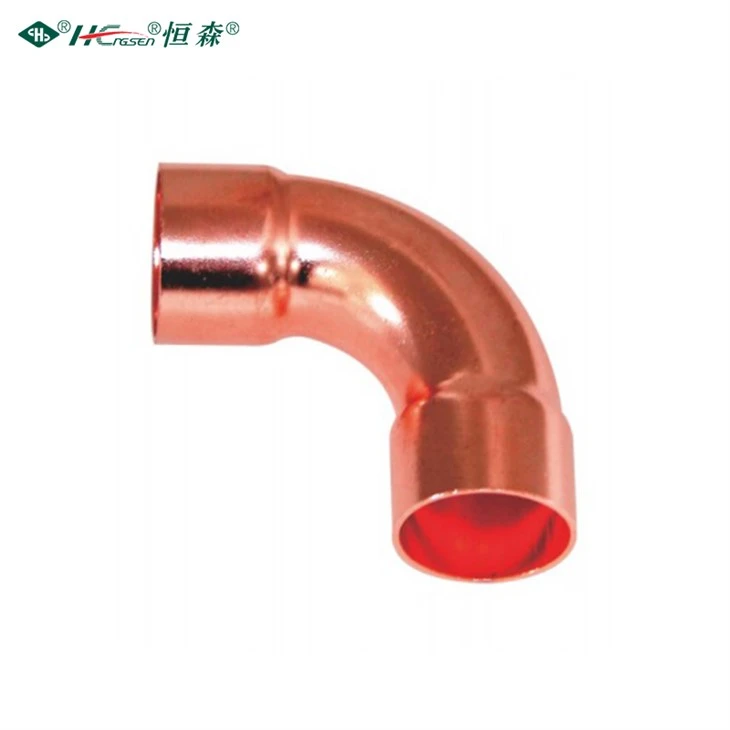

I-shaped Socket Elbow

The I-Shaped Socket Elbow is an essential pipe fitting designed to connect two pipes at a 90-degree angle, enabling a smooth transition of fluids or gases through a system. The unique I-shape provides a more compact solution, perfect for systems with limited space. It is primarily used for both residential and industrial applications where a reliable, tight connection is required, including water supply, heating systems, and industrial piping networks.
Send Inquiry
I-shaped socket elbow

The I-Shaped Socket Elbow is a high-performance, reliable, and space-saving solution for directing fluid flow in a variety of piping systems. Its compact design, secure socket connection, and high-quality material construction make it an ideal choice for industries such as plumbing, HVAC, oil and gas, and chemical processing.

Advantages and features

  • High pressure tolerance:Forging process and thick wall design, suitable for high pressure systems (such as Class 9000).

  • Reliable sealing:Socket welding reduces the risk of leakage, especially suitable for the transportation of flammable and toxic media.

  • Material diversity:Supports stainless steel, duplex steel, nickel alloy and other materials to adapt to corrosive environments.

  • Easy installation:The socket structure simplifies the alignment process and is suitable for occasions with limited space.

I-shaped socket elbow

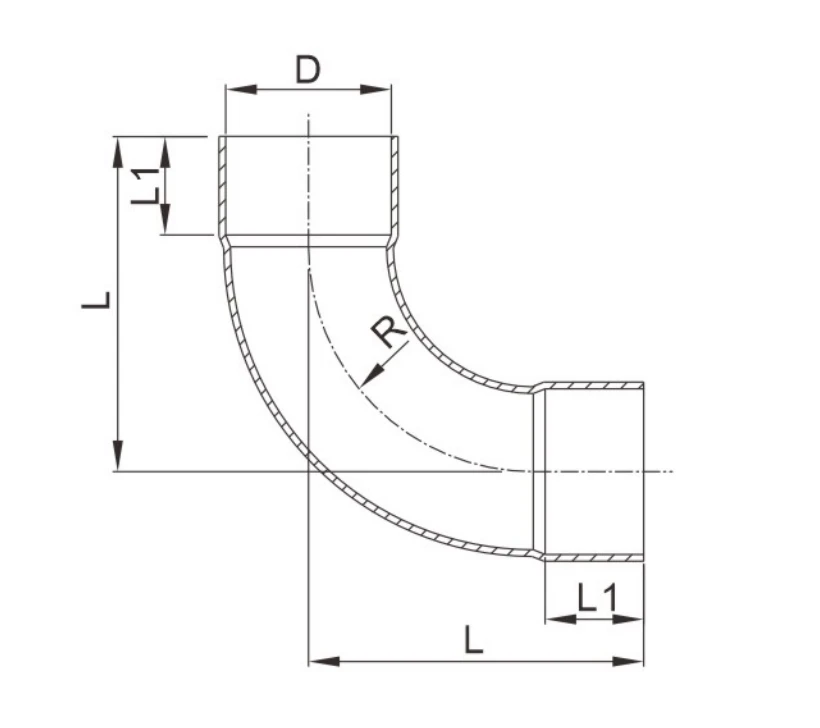

Technical Parameters



Order NO. Model NO. Dimension(mm)
D L L1 R Material wall thickness
43681 LD-9.52 9.58 22 8 12.7 0.8
43682 LD-10 10.05 22 8 12.7 0.8
43683 LD-12 12.05 28 10 19.0 0.8
43684 LD-12.7 12.75 28 10 19.0 0.8
43685 LD-15.88 15.95 38 12 24.0 1

Why Choose the I-Shaped Socket Elbow





  • Compact Design – Provides a space-efficient solution for systems with limited room.

  • Leak-Proof and Durable – Ensures a secure connection with no risk of leaks, offering long-lasting performance.

  • Versatile Applications – Suitable for a wide range of industries, including plumbing, oil and gas, HVAC, and chemical processing.

FAQ



Q: What materials are used in it to ensure long-lasting durability?
A:These materials provide excellent resistance to corrosion, high pressure, and temperature variations, making it suitable for a variety of industrial and plumbing systems.


Q: Is it compatible with different types of piping systems and connections?
A: Yes, it is available in a range of sizes and can be used with various piping systems. Whether threaded, welded, or push-fit, it ensures a secure connection for reliable fluid or gas flow.


Q: How does it ensure a leak-proof connection?
A: It is designed with precise dimensions and a smooth internal surface to ensure a tight, secure fit with the pipes. Additional sealing methods such as gaskets or welding further enhance its ability to prevent leaks.


Q: Can it be used for both high-pressure and low-pressure applications?
A: Yes, depending on the material and design, it can be used in both high-pressure and low-pressure systems. For high-pressure applications, the use of reinforced materials and proper sealing ensures reliable performance under stress.
