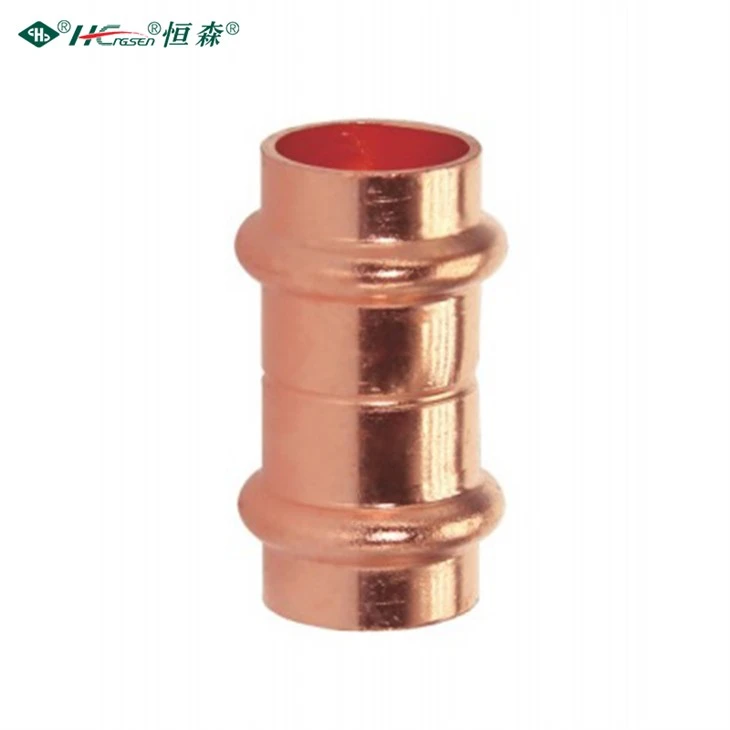

Bayonet Straight Coupling
The Bayonet Straight Coupling is an integral component in the electrical infrastructure of air conditioning systems, providing a stable and efficient means of connecting refrigerant lines, control cables, and other essential wiring. Its bayonet locking mechanism and straight design are optimized for the high-vibration and temperature-variable environments typical in HVAC installations.
Advantages and Features
-
Robust Construction: The coupling is built to withstand the harsh conditions found in air conditioning systems, including temperature fluctuations and mechanical stress.
-
Quick and Easy Installation: The bayonet design allows for rapid connection and disconnection, reducing installation and maintenance time.
-
Seamless Integration: The straight coupling ensures a continuous flow within the refrigerant lines, minimizing pressure drops and optimizing system efficiency.
-
Corrosion Resistance: Made with materials that resist corrosion from refrigerants and other environmental factors, ensuring long-term reliability.
-
Reduced Leak Potential: The secure bayonet lock minimizes the risk of leaks, which is critical for maintaining the integrity and performance of the air conditioning system.
Technical Parameters
| Model | Dimensions | ||
| D | L | L1 | |
| KY-S-DN15 | 12.7 | 39 | 7.5 |
| KY-S-DN20 | 19.2 | 48 | 10 |
| KY-S-DN25 | 25.4 | 48 | 10 |
| KY-S-DN32 | 31.9 | 58.5 | 10 |
| KY-S-DN38 | 38.1 | 64 | 13 |
| Note: The above table is the commonly used recommended models, please consult for details. | |||
Parameters and Specifications
-
Temperature Range: Capable of operating effectively within a temperature range of -40°C to +150°C.
-
Connector Type: Bayonet-style straight coupling for refrigerant lines and control cables.
-
Leak Rate: Meets or exceeds industry standards for minimal leak rates, ensuring system efficiency.
FAQ
Q: How does the bayonet straight coupling improve the efficiency of pipe connections?
A: It improves efficiency by providing a quick and secure way to join pipes without the need for complicated tools or additional sealing materials. The bayonet mechanism ensures a tight and reliable connection, reducing the chances of leaks and ensuring the integrity of the pipeline system.
Q: Can it be used in high-pressure systems?
A: Yes, it is suitable for use in high-pressure systems, depending on the materials and specifications of the coupling. It is designed to withstand the pressure requirements of various industrial applications, including hydraulic, pneumatic, and fluid transfer systems. The secure bayonet lock provides a firm seal, preventing leaks and ensuring that the system maintains pressure integrity under demanding conditions.
Q: How does it contribute to system reliability and safety?
A: It contributes to reliability and safety by ensuring a secure and leak-free connection. The bayonet coupling system locks in place quickly and effectively, which minimizes the risk of accidental disconnections or weak seals. This reduces the likelihood of system malfunctions or safety hazards such as fluid leaks, which could lead to contamination or system failures.
Q: Is it compatible with a wide range of materials and pipe sizes?
A: Yes, it is designed to be compatible with a variety of materials and pipe sizes.
