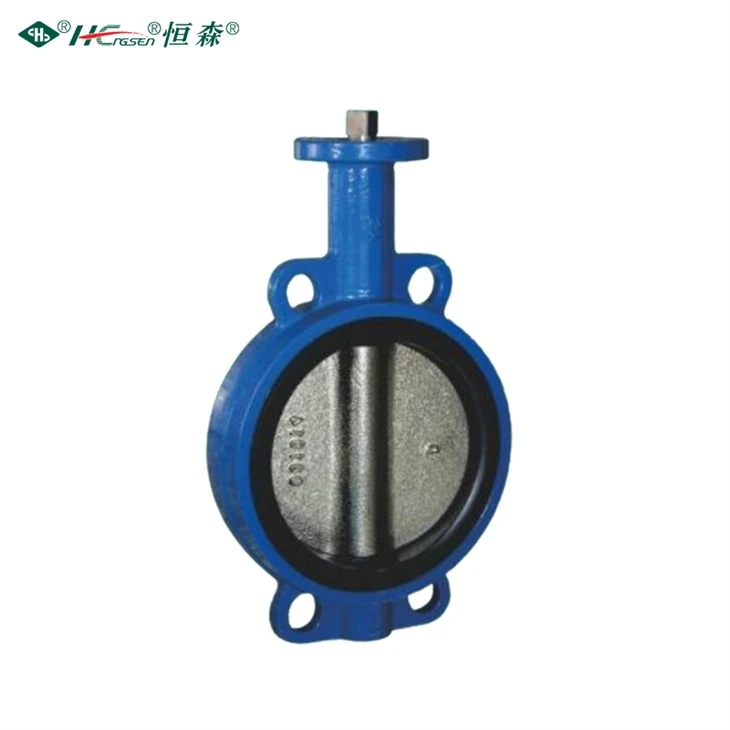

Bi Directional Butterfly Valve

Bi-directional Butterfly Valve is an important equipment in the field of fluid control. Its valve plate can rotate around the axis to achieve bi-directional flow control. It has a compact structure, occupies little space, and is easy to install in various pipeline systems. It uses high-performance sealing materials to achieve reliable sealing under different pressure conditions and effectively prevent medium leakage. The material is mostly corrosion-resistant alloys or engineering plastics, which can adapt to a variety of media such as water, gas, acid and alkali solutions. The operation mode is flexible, and it can be manual, electric, or pneumatic. It is widely used in water supply and drainage, chemical industry, electric power and other industries. It can accurately adjust the flow rate and quickly cut off the fluid in an emergency to ensure the safe and stable operation of the system. It is a key component for optimizing the fluid delivery system.

Product Features

Bidirectional flow: The unique design allows the medium to flow freely in both directions, greatly improving the flexibility of use.

Reliable sealing: The use of high-quality sealing materials ensures zero leakage in both high-pressure and low-pressure environments.

Compact structure: The small size does not take up space and is easy to install in various complex pipeline systems.

Easy operation: Whether it is manual, electric or pneumatic operation, the valve can be easily opened and closed.

work principle

Rotation adjustment

The flow area of the medium is changed by rotating the valve plate, so as to accurately control the flow rate.

Sealing fit

The valve plate fits tightly with the valve seat to prevent medium leakage.

Pressure balance

Under the action of bidirectional pressure, the valve plate can automatically balance the pressure to ensure stable operation.

Fluid guidance

The reasonable valve plate shape guides the medium to flow smoothly and reduces resistance.

Feedback control

The electric or pneumatic actuator can accurately adjust the valve opening according to the system feedback.

FAQ

1. What is the maximum pressure that a two-way butterfly valve can withstand?
Our two-way butterfly valves can withstand high pressures and meet the needs of most industrial environments.

2. Can the size be customized?
Yes, we provide customization services and can produce two-way butterfly valves of different sizes according to your needs.

3. What is the operating torque of the valve?
The operating torque depends on the valve size and pressure level. We will provide detailed technical parameters.

4. How to perform maintenance?
Check the seals and actuators regularly, clean the valve plate and valve seat, and add lubricant as required.
