How Does An Electric Ball Valve Work?

In modern fluid control systems, electric ball valves are widely used in many fields such as petroleum, chemical industry, HVAC, food processing, water treatment, etc. due to their high efficiency, intelligence and high degree of automation. It not only replaces the cumbersome operation of traditional manual valves, but also is a key link in the development of industrial automation. So, how does an electric ball valve work? What are its components? And why is it becoming more and more popular in the industry?

1. Structure and principle of electric ball valve

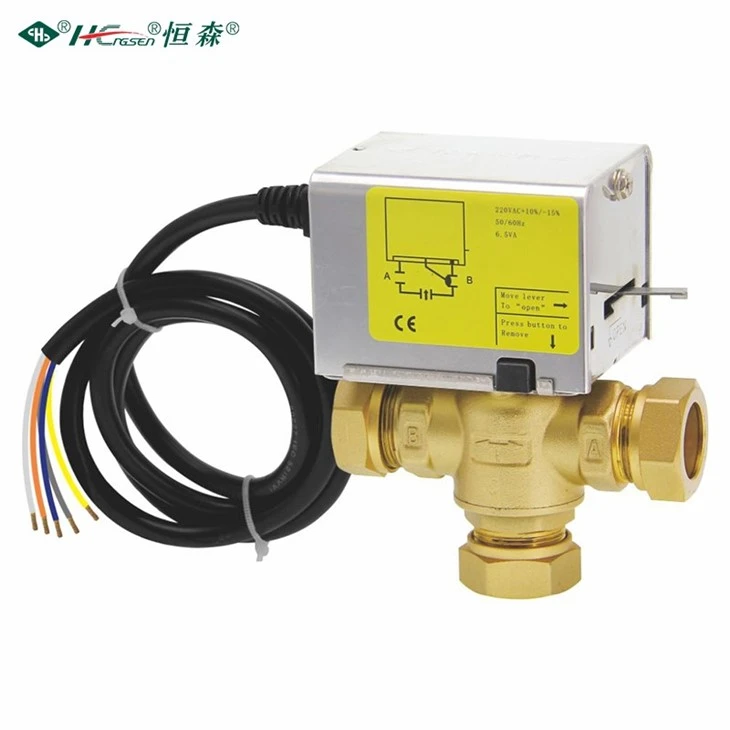

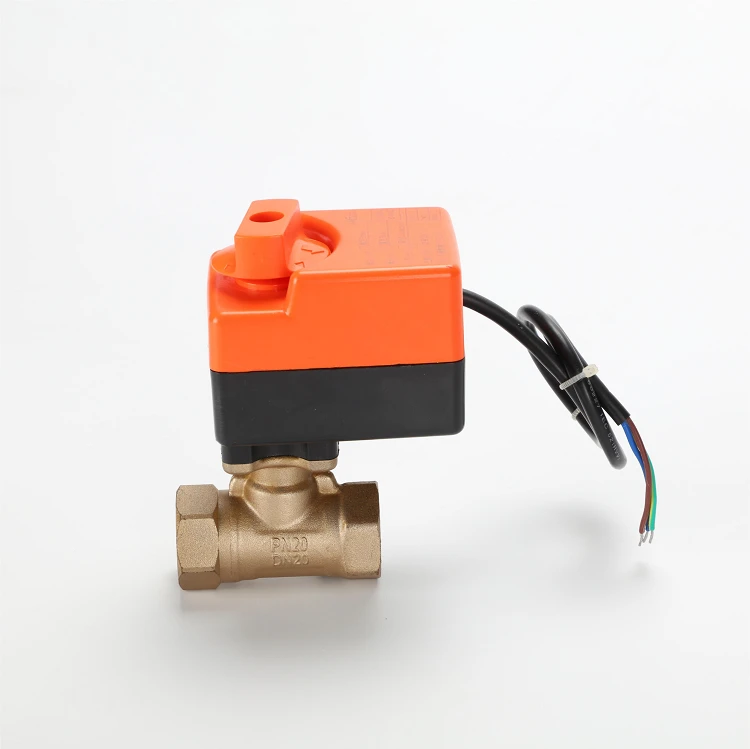

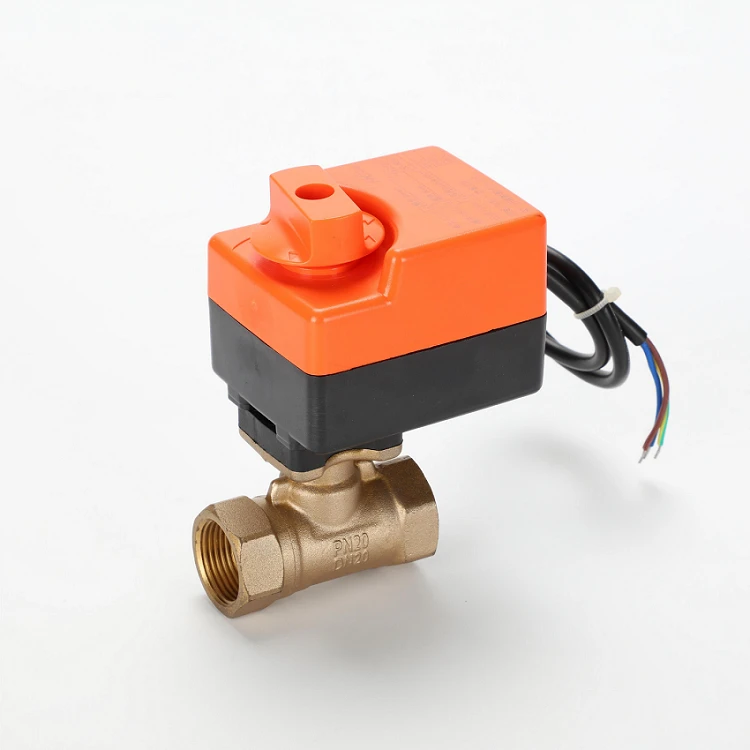

The electric ball valve is mainly composed of two parts: the ball valve body and the electric actuator.

1. Ball valve body
There is a ball with a through hole in the ball valve body, and the pipeline is opened or closed by rotating the ball. When the through hole is in a straight line with the pipeline, the fluid can pass smoothly; when the ball rotates 90°, the through hole is perpendicular to the pipeline, and the fluid is blocked and shut off.

2. Electric actuator
The electric actuator drives the built-in motor to rotate through a power supply (usually AC220V or DC24V), and then transmits the torque to the valve stem through the reduction mechanism, thereby driving the ball to rotate and realize opening and closing control.

No manual intervention is required in the whole process, and even remote control and linkage operation can be performed through the PLC system, which greatly improves the automation and safety of the system.

2. Detailed explanation of the working process of the electric ball valve

As a typical mechatronic control device, the working process of the electric ball valve integrates electric control, mechanical transmission and fluid control technology. The following are its detailed working steps and key technical points:

1. Receiving control signals
The upper controller of the system (such as PLC or DCS) issues an on/off control command, which is transmitted to the electric actuator by wire or wireless. After receiving the signal, the actuator will determine the type of command and start the corresponding action process. In the intelligent system, the signal may also contain specific opening parameters (such as opening to 45%, 75%, etc.) to achieve fine adjustment.

2. Motor drive
The built-in motor of the actuator starts working. The motor type is usually an AC asynchronous motor or a DC servo motor, which has the characteristics of sensitive response and stable power. According to the set switching direction, the motor rotates forward or reverse.

3. Deceleration and transmission system
Due to the high speed and insufficient torque of the motor, a set of gear reduction devices are installed inside the system to convert the high-speed and low-torque motor output into low-speed and high-torque power output. This process not only ensures the smooth rotation of the ball, but also enhances the load resistance of the system, enabling it to cope with high pressure and large-caliber working conditions.

4. Control of ball rotation
The decelerated power is transmitted to the valve stem, driving the ball in the valve cavity to rotate. There is a through hole in the middle of the ball. When the through hole is aligned with the direction of the pipeline, the fluid can pass freely; when the ball rotates 90°, the channel is perpendicular to the direction of the pipeline, and the fluid is completely blocked to achieve the interception effect. This fully open/fully closed structure ensures excellent sealing performance and extremely low pressure loss.

5. Stop in place and status feedback
When the ball reaches the preset angle, the limit switch (or torque protection device) in the actuator will automatically sense the in-place state and immediately cut off the power to stop the motor operation to prevent overshoot. Some high-end actuators also have a position feedback function, which can transmit the current state of the valve in real time through 4-20mA analog or digital signals to achieve closed-loop control.

6. Overall operational advantages
The entire working process usually takes only 3-15 seconds to complete, with quick response, suitable for working conditions with high frequency opening and closing requirements. Compared with pneumatic valves, electric ball valves do not require a compressed air system and are easy to maintain; compared with manual valves, they are more suitable for automated control environments. In addition, actuators with explosion-proof and protection grades (such as IP67) can meet the safety requirements of outdoor or special industrial sites.

3. Advantages and industry applications of electric ball valves
1. High automation control
Compared with traditional manual ball valves, electric ball valves can achieve fully automatic operation and are suitable for remote control and unattended systems.

2. Superior sealing performance
The structure of the ball valve determines that it has extremely strong sealing performance in the fully open and fully closed state, with extremely low leakage risk, and is suitable for a variety of media such as gas and liquid.

3. Strong durability
Electric ball valves are mostly made of stainless steel, copper alloy or engineering plastics, with strong corrosion resistance and pressure resistance, and long service life.

4. Wide range of environmental adaptability
Applicable to complex working conditions such as high temperature, high pressure, and strong corrosion, and are widely used in HVAC systems, building automation, food and medicine, energy and chemical industries.

4. Zhejiang Hengsen Industrial Group Co., Ltd.: Leader in electric ball valves and HVAC control
In the field of electric ball valves and HVAC control product manufacturing, Zhejiang Hengsen Industrial Group Co., Ltd. is undoubtedly a leader in the industry. As a high-tech enterprise integrating R&D, production and sales, Hengsen always adheres to the corporate philosophy of "safety first, innovation must, and efficiency is the best", and is committed to providing high-quality control valves and supporting products to global customers.

Hengsen's corporate strength
30+ years of experience accumulation: Since its establishment in 1988, Hengsen has focused on the development and manufacturing of copper valves, plumbing pipes, and air-conditioning accessories, and has rich industry experience and technical accumulation.

More than 110,000 square meters of production base: The company currently has 5 subsidiaries with a total area of ​​more than 110,000 square meters, with large-scale automated production capabilities.

More than 500 employees and professional teams: The company has a professional R&D and technical team covering all aspects of product design, manufacturing, quality control, etc., to ensure that every product meets international standards.

The core selling point of Hengsen products
High-precision manufacturing: using advanced equipment and automation technology to ensure that the product is both beautiful and precise.

Customized services: Provide ODM/OEM services to meet customers' personalized needs and enhance product added value.

Internationalization strategy: Products are exported to Europe, South America, the Middle East and other regions, and have established long-term cooperative relations with many Fortune 500 companies.

Comprehensive quality control system: Each product has passed strict testing and manual inspection to ensure safety and stability.

Typical product line
Hengsen's main products include:

Electric ball valves, temperature control valves, control valves and otherHVAC valveproducts,Electric actuators, room thermostats and other automation control units,Copper pipe fittings, manifolds, refrigeration pressure gauges and other supporting components,Whether it is a home heating system or a large commercial central air-conditioning system, Hengsen's products can provide customers with reliable solutions.

5. Future Outlook
With the rapid development of industrial automation and building intelligence, electric ball valves are moving towards a smarter, more efficient and more environmentally friendly direction. Hengsen will also continue to deepen technological innovation and product upgrades, promote the research and development of energy-saving control systems and Internet of Things linkage products, and provide the industry with more forward-looking technical solutions.

6. Smart integration with building management systems
Today, electric ball valves are increasingly integrated into building management systems, enabling centralized control of HVAC, water supply, and fire protection systems. With smart actuators that support communication protocols such as Modbus, BACnet, and KNX, operators can remotely monitor and adjust valve positions in real time. This not only improves operational visibility, but also reduces maintenance costs and energy consumption. This smart integration makes electric ball valves the cornerstone of modern smart building and industrial automation systems.

7. Practical application case: district heating project
In district heating networks, where hot water or steam is delivered from a central heating plant to residential or commercial buildings, electric ball valves play a key role in zoning, flow regulation, and emergency shutdown. In a recent city heating project in Northern Europe, Hengsen's electric ball valves were selected for their fast response time, strong sealing performance, and compatibility with automatic heating control systems. This increased energy efficiency by 15% and significantly reduced manual intervention by system operators.

Conclusion
The efficiency, safety and automation characteristics of electric ball valves make them an indispensable part of modern fluid control systems. Excellent manufacturers, represented by Zhejiang Hengsen Industrial Group, are also helping the electric valve industry to move to a higher level with technological innovation and excellent quality. In the future, with the advancement of intelligent manufacturing and green industry, electric ball valves will surely play an important role in more fields.
